Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL5050-332MECPOWER INDUCTOR, SHIELDED, COMPOS |
676 |
|
Datasheet |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 11.3 A | 8.6A | Shielded | 11.5mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
|
XGL5050-822MECPOWER INDUCTOR, SHIELDED, COMPOS |
601 |
|
Datasheet |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 8.2 µH | ±20% | 7 A | 5.5A | Shielded | 27.5mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
P1812R-562KFIXED IND 5.6UH 650MA 437MOHM SM |
500 |
|
Datasheet |
P1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 5.6 µH | ±10% | 650 mA | 1.06A | Unshielded | 437mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
XGL5050-102MECPOWER INDUCTOR, SHIELDED, COMPOS |
378 |
|
Datasheet |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 21 A | 15A | Shielded | 3.9mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
PCM120T-6R8M-DFIXED IND 6.8UH 16.6A 6.5OHM SMD |
147 |
|
Datasheet |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 16.6 A | 15.1A | Shielded | 6.5mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
|
XGL5050-333MECPOWER INDUCTOR, SHIELDED, COMPOS |
118 |
|
Datasheet |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | 33 µH | ±20% | 3.2 A | 2.5A | Shielded | 118mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.201" (5.10mm) |
|
CTS3F-683K68000UH AXIAL SHIELDD INDUCTOR |
874 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 68 mH | ±10% | 12 mA | - | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-102K1000UH AXIAL SHIELDD INDUCTOR |
853 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 1 mH | ±10% | 70 mA | - | Shielded | 17Ohm Max | 65 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-823K82000UH AXIAL SHIELDD INDUCTOR |
408 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 82 mH | ±10% | 11 mA | - | Shielded | 618Ohm Max | 21 @ 79kHz | 120kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
SIDHP-FD2818F-220MFIXED IND 22uH SMD 30A 2.58MOHM |
318 |
|
Datasheet |
SIDHP-FD2818F | Nonstandard | Bulk | Active | Wirewound | - | 22 µH | ±20% | 30 A | 15A | Unshielded | 2.58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.102" L x 0.776" W (28.00mm x 19.70mm) | 0.728" (18.50mm) |
|
|
CTS3F-8R2J8.2UH AXL MOLDED SHLD INDUCTOR |
268 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±5% | 250 mA | - | Shielded | 1.3Ohm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-151K150UH AXL MOLDED SHLD INDUCTOR |
195 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 150 µH | ±10% | 140 mA | - | Shielded | 4.1Ohm Max | 56 @ 790kHz | 8.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
|
CTS3F-180K18UH AXL MOLDED SHLD INDUCTOR |
148 |
|
Datasheet |
CTS3F | Axial | Tape & Reel (TR) | Active | Molded | - | 18 µH | ±10% | 300 mA | - | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.160" Dia x 0.409" L (4.06mm x 10.40mm) | - |
|
IHLP6767DZER5R6M11FIXED IND 5.6UH 15A 12.2MOHM SMD |
240 |
|
Datasheet |
IHLP-6767DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 15 A | 11.5A | Shielded | 12.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|

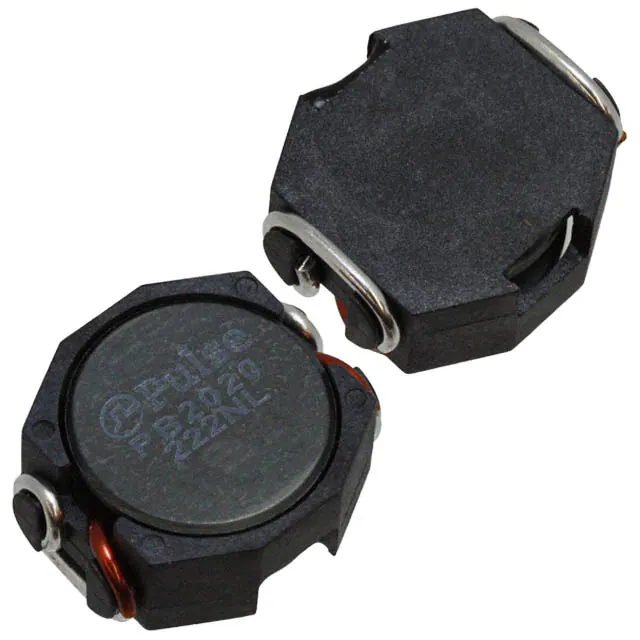

PB2020.222NLFIXED IND 2.2UH 21.8A 2.8MOHM SM |
1,005 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 2.2 µH | ±20% | 21.8 A | 40A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
B82559A7103A019FIXED IND 10UH 9.55 MOHM SMD |
243 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | - | 12.7A | Shielded | 9.55mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.358" (9.10mm) |
|
|
B82559A3152A019FIXED IND 1.5UH 1.7 MOHM SMD |
187 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | - | 36.3A | Shielded | 1.7mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.390" (9.90mm) |
|
|
PCM120T-1R0N-DFIXED IND 1UH 41.2A 1.06 OHM SMD |
250 |
|
Datasheet |
PCM120T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal | 1 µH | ±30% | 41.2 A | 39.5A | Shielded | 1.06mOhm | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.500" W (12.00mm x 12.70mm) | 0.453" (11.50mm) |
|
SL3732H-R30KHFFIXED IND 300NH 51A 0.29MOHM SMD |
2,600 |
|
Datasheet |
SL3732H | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±10% | 51 A | 33A | Shielded | 0.29mOhm | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
CTH9F-101M100UH AXIAL PWR LINE INDUCTOR |
793 |
|
Datasheet |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | - | 2A | Unshielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.380" Dia x 1.250" L (9.65mm x 31.75mm) | - |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
