Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402CS-47NXGRWFIXED IND 47NH 150MA 830MOHM SM |
1,272 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 47 nH | ±2% | 150 mA | - | Unshielded | 830mOhm Max | 38 @ 900MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
CTCDRH104RF-15015 SMD SHIELDED POWER INDUCTOR |
1,160 |
|
Datasheet |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±30% | - | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CTCDRH104RF-5R25.2 SMD SHIELDED POWER INDUCTOR |
1,008 |
|
Datasheet |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.2 µH | ±30% | - | 5.7A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
CTCDRH104RF-10010 SMD SHIELDED POWER INDUCTOR |
781 |
|
Datasheet |
CTCDRH104RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | - | 4.4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
0402CS-10NXGRWFIXED IND 10NH 480MA 200MOHM SM |
763 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 10 nH | ±2% | 480 mA | - | Unshielded | 200mOhm Max | 50 @ 900MHz | 3.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
0402CS-1N9XGRWFIXED IND 1.9NH 1.04A 70MOHM SM |
454 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 1.9 nH | ±2% | 1.04 A | - | Unshielded | 70mOhm Max | 68 @ 900MHz | 11.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
CTAF05TJSMD AIR CORE INDUCTOR |
330 |
|
Datasheet |
ctaf | - | Tape & Reel (TR) | Active | Wirewound | - | 18.5 nH | ±5% | - | - | - | 3.9mOhm | - | 2.5GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
0402CS-15NXGRWFIXED IND 15NH 560MA 170MOHM SM |
243 |
|
Datasheet |
0402CS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 15 nH | ±2% | 560 mA | - | Unshielded | 170mOhm Max | 55 @ 900MHz | 3.28GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|

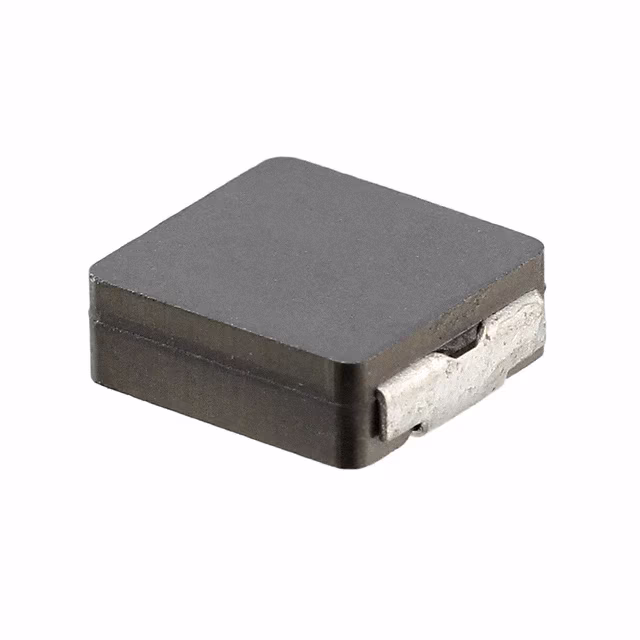

CDMC104NP-R56MFIXED IND 560NH 21A 1.48MOHM SMD |
527 |
|
Datasheet |
CDMC104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 560 nH | ±20% | 21 A | 22A | Shielded | 1.48mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
XFHCL4-6R8MFIXED IND 6.8UH 11A 19 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 11 A | 21A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
|
TMPA 1707SP-4R7MN-D4.7 UH SHIELDED MOLDED INDUCTOR |
127 |
|
Datasheet |
TMPA1707SP | Nonstandard | Cut Tape (CT) | Active | Molded | - | 4.7 µH | ±20% | 26 A | 26A | Shielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
SBCP-87HY2R2HFIXED IND 2.2UH 4A 30 MOHM TH |
805 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4 A | 6.1A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.335" (8.50mm) |
|
|
HM73-10R47LFTR13FIXED IND 470NH 15A 3.16MOHM SMD |
764 |
|
Datasheet |
HM73 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | 470 nH | ±20% | 15 A | 23A | Shielded | 3.16mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.265" W (7.23mm x 6.73mm) | 0.157" (4.00mm) |
|
XFHCL4-1R0MFIXED IND 1UH 29A 2.65 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 29 A | 50A | Shielded | 2.65mOhm Max | 24 @ 100kHz | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
XFHCL4-1R2MFIXED IND 1.2UH 25A 3.5 MOHM SMD |
250 |
|
Datasheet |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 25 A | 49A | Shielded | 3.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.197" (5.00mm) |
|
CTDT1608CF-22322UH SMD SHIELDED POWR INDUCTOR |
4,347 |
|
Datasheet |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 500 mA | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | 0.115" (2.92mm) |
|
|
XFL2006-102MECFIXED IND 1UH 1.22A 169MOHM SM |
4,098 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 1.22 A | 710mA | Shielded | 169mOhm Max | - | 170MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
|
XFL2006-103MECFIXED IND 10UH 440MA 1.4OHM SM |
4,072 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 440 mA | 240mA | Shielded | 1.4Ohm Max | - | 45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
|
XFL2006-683MECFIXED IND 68UH 155MA 9.35OHM SM |
2,514 |
|
Datasheet |
XFL2006 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 68 µH | ±20% | 155 mA | 80mA | Shielded | 9.35Ohm Max | - | 16MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.075" W (2.00mm x 1.90mm) | 0.024" (0.60mm) |
|
PG0871.102NLFIXED IND 1UH 17.5A 2.3 MOHM SMD |
2,483 |
|
Datasheet |
PG0871NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±20% | 17.5 A | 17.5A | Shielded | 2.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
