Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XFHCL11-3R3MFIXED IND 3.3UH 10A 12 MOHM SMD |
500 |
|
Datasheet |
XFHCL11 | - | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 18.6A | Shielded | 12mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
LPD3015-472MRCFIXED IND 4.7UH 760MA 503MOHM SM |
437 |
|
Datasheet |
LPD3015 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 760 mA | 880mA | Shielded | 503mOhm Max | - | 79MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LPD3015-104MRCFIXED IND 100UH 190MA 8.54OHM SM |
298 |
|
Datasheet |
LPD3015 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±20% | 190 mA | 220mA | Shielded | 8.54Ohm Max | - | 11MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
CTC1F-270JAXL LEADED CONF COATED INDUCTOR |
198 |
|
Datasheet |
ctc1f | - | Tape & Reel (TR) | Active | - | - | 27 µH | ±5% | - | - | - | 3.5Ohm | - | 20MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
MGV06023R3M-10FIXED IND 3.3UH 3.3A 60.1MOHM SM |
6,000 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3.3 A | 10A | Shielded | 60.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|

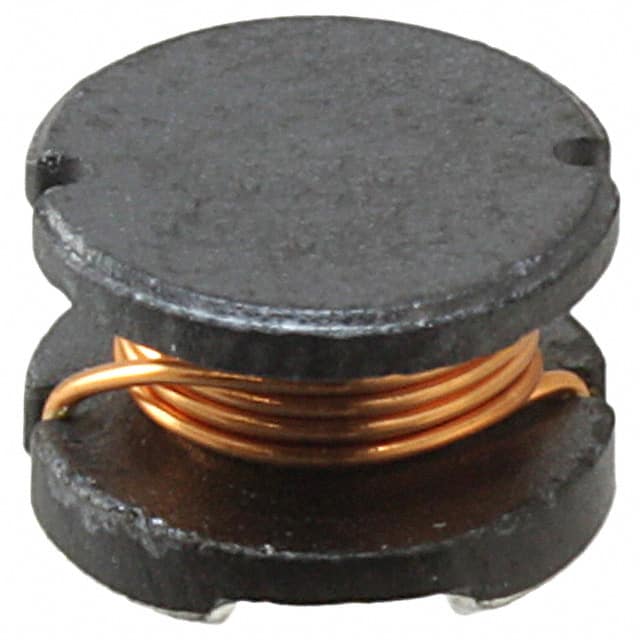

HM66-60120LFTR13FIXED IND 12UH 1.55A 70 MOHM SMD |
5,776 |
|
Datasheet |
HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | 12 µH | ±20% | 1.55 A | - | Shielded | 70mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|

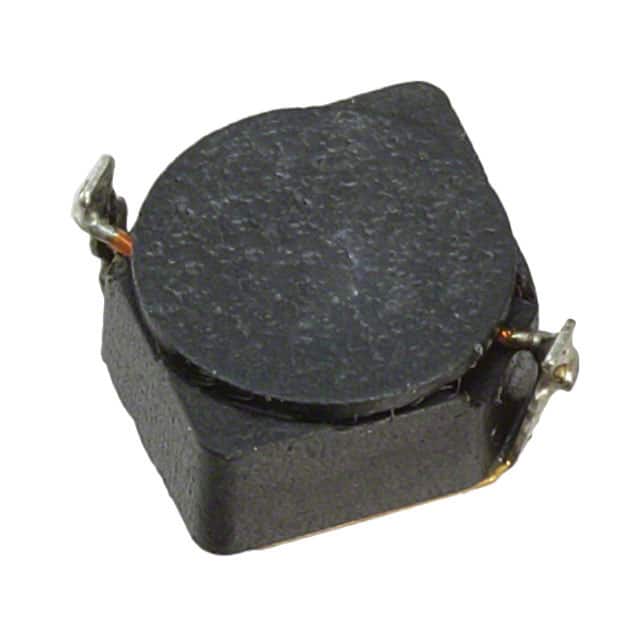

HM66-50680LFTR13FIXED IND 68UH 520MA 355MOHM SMD |
3,984 |
|
Datasheet |
HM66 | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | Wirewound | - | 68 µH | ±20% | 520 mA | - | Shielded | 355mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.118" (3.00mm) |
|
|
MGV0602R68M-10FIXED IND 680NH 9A 13.9 MOHM SMD |
3,500 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 9 A | 17A | Shielded | 13.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
|
MGV0602R33M-10FIXED IND 330NH 12A 7 MOHM SMD |
3,475 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 12 A | 18A | Shielded | 7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
|
MGV0602R47M-10FIXED IND 470NH 11A 9.3 MOHM SMD |
3,438 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 11 A | 18A | Shielded | 9.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
|
MGV06021R0M-10FIXED IND 1UH 7A 18.3 MOHM SMD |
3,142 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 14A | Shielded | 18.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
MWLB0401S-6R8MTFIXED IND 6.820%UH 280MOHM 2200M |
3,000 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 1.3 A | 1.9A | Unshielded | 280mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MWLB0501S-1R5MTFIXED IND 1.520%UH 90MOHM 3800MA |
3,000 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 3.1 A | 3.3A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.201" L x 0.201" W (5.10mm x 5.10mm) | 0.039" (1.00mm) |
|
|
MWLB0401S-1R5MTFIXED IND 1.520%UH 70MOHM 3800MA |
3,000 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 2.9 A | 3.3A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MWLB0401S-8R2MTFIXED IND 8.220%UH 300MOHM 2000M |
3,000 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 8.2 µH | ±20% | 1.1 A | 1.7A | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MWLB0501S-3R3MTFIXED IND 3.320%UH 140MOHM 3200M |
3,000 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 3.3 µH | ±20% | 2.3 A | 2.8A | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.201" L x 0.201" W (5.10mm x 5.10mm) | 0.039" (1.00mm) |
|
|
MWLB0601S-3R3MTFIXED IND 3.320%UH 130MOHM 3500M |
2,992 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 3.3 µH | ±20% | 2.3 A | 3A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
|
MWLB0401S-3R3MTFIXED IND 3.320%UH 130MOHM 2800M |
2,990 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 3.3 µH | ±20% | 2 A | 2.4A | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MGV06021R5M-10FIXED IND 1.5UH 4A 34 MOHM SMD |
2,977 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 4 A | 13A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.091" (2.30mm) |
|
|
CSAC1050-220MSMD MOLDING POWER CHOKE |
2,000 |
|
Datasheet |
CSAC1050 | 2-SMD | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 4.9 A | 8A | Shielded | 72.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.396" W (11.00mm x 10.05mm) | 0.190" (4.85mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
