Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLJ1005WR18JT000FIXED IND 180NH 400MA 580MOHM SM |
34,075 |
|
Datasheet |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±5% | 400 mA | 300mA | Shielded | 580mOhm Max | 15 @ 25MHz | 320MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

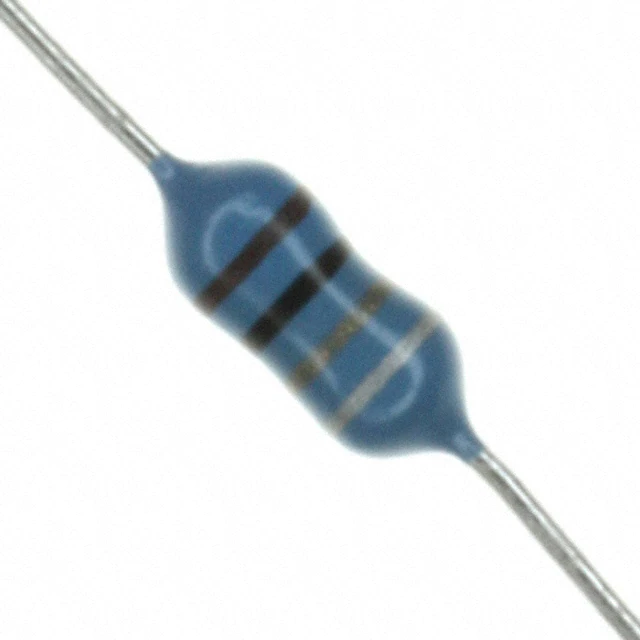

78F1R0K-TR-RCFIXED IND 1UH 815MA 150 MOHM TH |
22,789 |
|
Datasheet |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 815 mA | - | Unshielded | 150mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | - |
.jpg)
|
LQM18PN3R3MGHDFIXED IND 3.3UH 1.05A 250MOHM SM |
22,214 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 1.05 A | 200mA | Shielded | 250mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

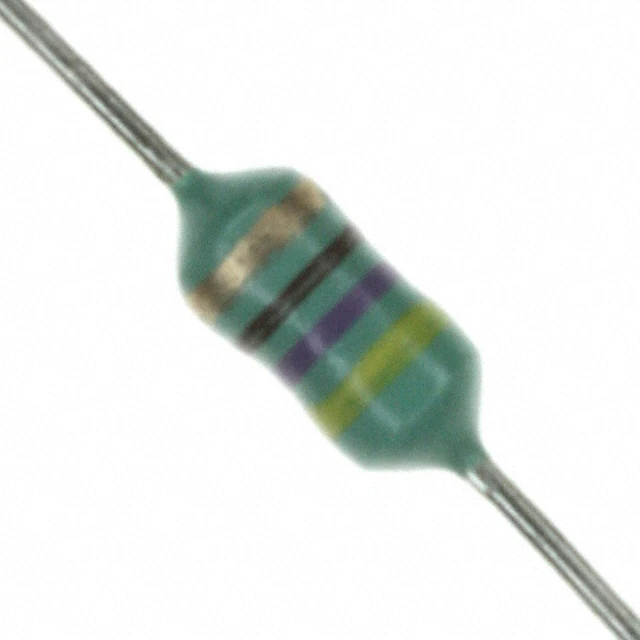

78F471J-TR-RCFIXED IND 470UH 90MA 14 OHM TH |
20,382 |
|
Datasheet |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 90 mA | - | Unshielded | 14Ohm Max | 60 @ 790kHz | 2.55MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
LQW15AWR22J80DFIXED IND 220NH 220MA 2.75OHM SM |
18,617 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 220 nH | ±5% | 220 mA | - | Unshielded | 2.75Ohm Max | 33 @ 250MHz | 1.1GHz | - | -40°C ~ 140°C | 100 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
77F101J-TR-RCFIXED IND 100UH 275MA 2.5 OHM TH |
16,528 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 275 mA | - | Unshielded | 2.5Ohm Max | 30 @ 2.52MHz | 4.8MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
77F221J-TR-RCFIXED IND 220UH 155MA 5 OHM TH |
15,825 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 155 mA | - | Unshielded | 5Ohm Max | 60 @ 796kHz | 2.8MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
LQM18PN1R0MGHDFIXED IND 1UH 1.05A 250MOHM SMD |
15,712 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.05 A | 900mA | Shielded | 250mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
B78108S1105J009FIXED IND 1MH 130MA 14 OHM TH |
15,368 |
|
Datasheet |
BC | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 130 mA | - | Unshielded | 14Ohm Max | 50 @ 252kHz | 1.6MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
NRS3015T2R2MNGHFIXED IND 2.2UH 1.5A 58 MOHM SMD |
14,642 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.48A | Shielded | 58mOhm Max | - | 64MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
77F471J-TR-RCFIXED IND 470UH 126MA 8.5 OHM TH |
14,268 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 126 mA | - | Unshielded | 8.5Ohm Max | 50 @ 796kHz | 1.8MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
LQM18PN1R0MFHDFIXED IND 1UH 1.3A 163 MOHM SMD |
12,275 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.3 A | 550mA | Shielded | 163mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

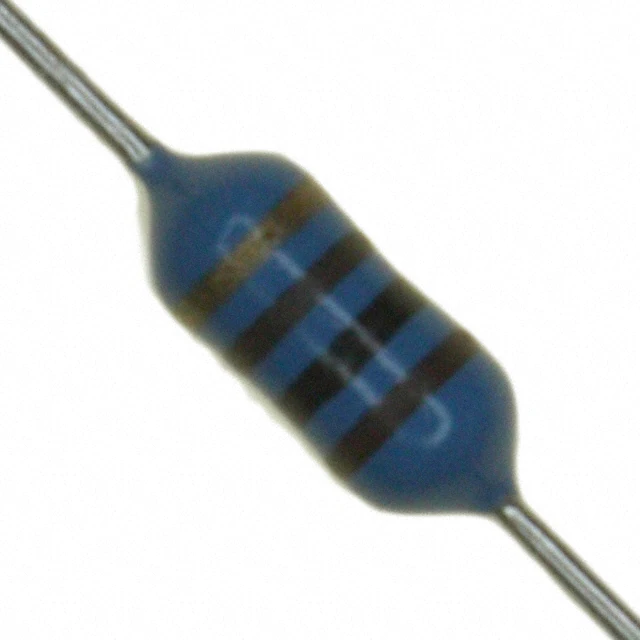

78F101J-TR-RCFIXED IND 100UH 165MA 4.1 OHM TH |
12,215 |
|
Datasheet |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 165 mA | - | Unshielded | 4.1Ohm Max | 60 @ 2.5MHz | 5.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
77F470J-TR-RCFIXED IND 47UH 340MA 1.3 OHM TH |
11,011 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 340 mA | - | Unshielded | 1.3Ohm Max | 45 @ 2.52MHz | 6.3MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
78F102J-TR-RCFIXED IND 1MH 60MA 31.4 OHM TH |
10,451 |
|
Datasheet |
78F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 60 mA | - | Unshielded | 31.4Ohm Max | 60 @ 790kHz | 1.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78FR47K-RCFIXED IND 470NH 1A 110 MOHM TH |
10,184 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±10% | 1 A | - | Unshielded | 110mOhm Max | 40 @ 25MHz | 270MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
NRS3015T4R7MNGHFIXED IND 4.7UH 1.04A 120MOHM SM |
10,086 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.04 A | 1.02A | Shielded | 120mOhm Max | - | 40MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
IHHP0806ZHER2R2M01IHHP-0806ZH-01 2.2 20% ER E3 |
10,065 |
|
Datasheet |
IHHP-0806ZH-01 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 2.3 A | 2.7A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
78F120J-RCFIXED IND 12UH 350MA 800 MOHM TH |
9,793 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±5% | 350 mA | - | Unshielded | 800mOhm Max | 45 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F102J-TR-RCFIXED IND 1MH 100MA 20 OHM TH |
9,594 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 100 mA | - | Unshielded | 20Ohm Max | 50 @ 796kHz | 1.2MHz | - | -55°C ~ 105°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
