Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L0805B220MDWLTFIXED IND 22UH SMD |
1,993 |
|
Datasheet |
L-DWL | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
WPN252010HS4R7MTY01FIXED IND 4.7UH 1.05A 290MOHM SM |
1,975 |
|
Datasheet |
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.05 A | 1.8A | Shielded | 290mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW2BHN21NK13LFIXED IND 21NH 950MA 0.05OHM SMD |
1,762 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 21 nH | ±10% | 950 mA | - | Unshielded | 50mOhm Max | 40 @ 250MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
ATFC-0603-27N-FTFIXED IND 27NH 250MA 2.35OHM SMD |
1,575 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | 27 nH | ±1% | 250 mA | - | Unshielded | 2.35Ohm Max | 15 @ 300MHz | 2GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

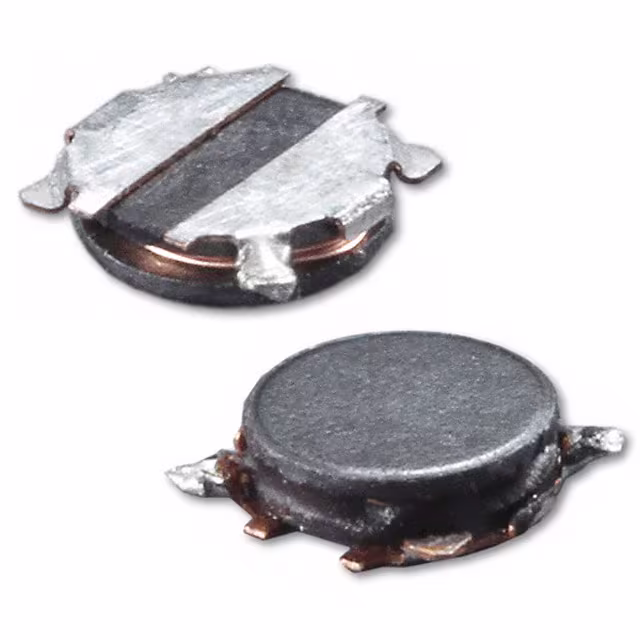

ASPI-0309-100M-T4FIXED IND 10UH 550MA 640MOHM SMD |
1,534 |
|
Datasheet |
ASPI-0309 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 550 mA | 430mA | Unshielded | 640mOhm | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.035" (0.90mm) |
|
|
LQW2BHNR27J03LFIXED IND 270NH 190MA 2OHM SMD |
1,474 |
|
Datasheet |
LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 270 nH | ±5% | 190 mA | - | Unshielded | 2Ohm Max | 15 @ 25.2MHz | 550MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
TMPA 0603S-3R3MN-D3.3 UH SHIELDED MOLDED INDUCTOR |
1,208 |
|
Datasheet |
TMPA0603S | Nonstandard | Cut Tape (CT) | Active | - | Metal | 3.3 µH | ±20% | 6.5 A | 9.5A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH3D28/LDNP-220NCFIXED IND 22UH 1.28A 145MOHM SMD |
10,000 |
|
Datasheet |
CDRH3D28/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.28 A | 330mA | Shielded | 145mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
MLK1005S3N9STD25FIXED IND 3.9NH 400MA 250MOHM SM |
15,780 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 3.9 nH | ±0.3nH | 400 mA | - | Unshielded | 250mOhm Max | 7 @ 100MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
-MGV-Series.jpg)
|
MGV201610S1R5M-10FIXED IND 1.5UH 2.4A 99MOHM SMD |
14,207 |
|
Datasheet |
MGV | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.4 A | 3.4A | Shielded | 99mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CT0805CSF-561GSMD CER CORE WIRE-WOUND INDUCTOR |
12,122 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±2% | - | - | - | 1.9Ohm | - | 340MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
-Top-MGV-Series.jpg)
|
MGV252010SR33M-10FIXED IND 330NH 5.6A 22MOHM SMD |
12,000 |
|
Datasheet |
MGV | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 5.6 A | 7.3A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CT0805CSF-3N0JSMD CER CORE WIRE-WOUND INDUCTOR |
5,690 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 3 nH | ±5% | - | - | - | 60mOhm | - | 7.9GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0805CSF-221GSMD CER CORE WIRE-WOUND INDUCTOR |
4,169 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±2% | - | - | - | 700mOhm | - | 850MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
ELL-4LG470MAFIXED IND 47UH 410MA 920MOHM SMD |
0 |
|
Datasheet |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 410 mA | 360mA | Shielded | 920mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
L0806C1R5MDMITFIXED IND 1.5UH 1.2A 130MOHM SMD |
0 |
|
Datasheet |
L-DMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±20% | 1.2 A | - | Shielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

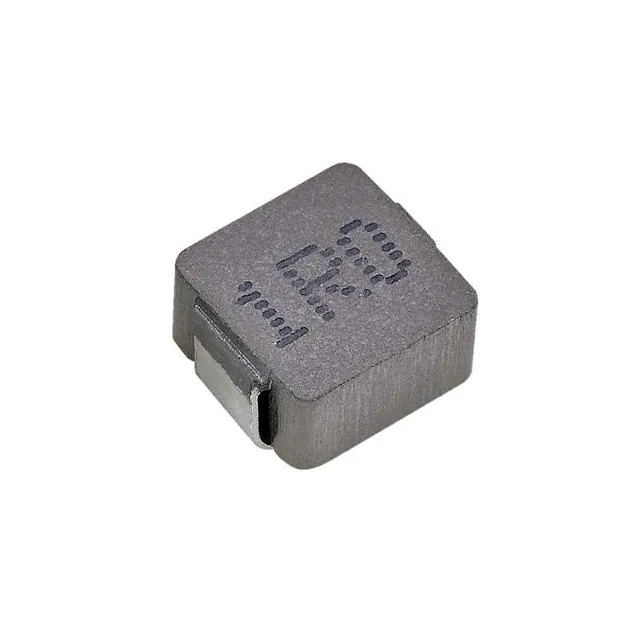

AIP0630GX-6R8MPBDGPOWER INDUCTOR 7.7X6.5X3 6.8uh 2 |
2,000 |
|
Datasheet |
AIP0630GX | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 5.2 A | 9.7A | Shielded | 44.5mOhm Max | - | 16.5MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MLK1005S39NJTD25FIXED IND 39NH 200MA 1 OHM SMD |
1,878 |
|
Datasheet |
MLK | 0402 (1005 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Non-Magnetic | 39 nH | ±5% | 200 mA | - | Unshielded | 1Ohm Max | 6 @ 100MHz | 2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CT0805CSF-050JSMD CER CORE WIRE-WOUND INDUCTOR |
1,652 |
|
Datasheet |
ct0805csf | - | Tape & Reel (TR) | Active | Wirewound | - | 5.6 nH | ±5% | - | - | - | 80mOhm | - | 5.5GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
MGV201610S1R0M-10FIXED IND 1UH 3.2A 60 MOHM SMD |
1,238 |
|
Datasheet |
MGV | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.2 A | 3.9A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
