Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MLJ1608WR22JT000FIXED IND 220NH 600MA 260MOHM SM |
3,270 |
|
Datasheet |
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 220 nH | ±5% | 600 mA | 700mA | Shielded | 260mOhm Max | 35 @ 25MHz | 290MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
KLZ2012MHR3R3HTD25FIXED IND 3.3UH 500MA 260MOHM SM |
3,109 |
|
Datasheet |
KLZ-HR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±20% | 500 mA | 350mA | Shielded | 260mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 2 MHz | Soft Termination | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
.jpg)
|
VLS201610HBX-100M-1FIXED IND 10UH 650MA 768MOHM SMD |
3,041 |
|
Datasheet |
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 650 mA | 610mA | Shielded | 768mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

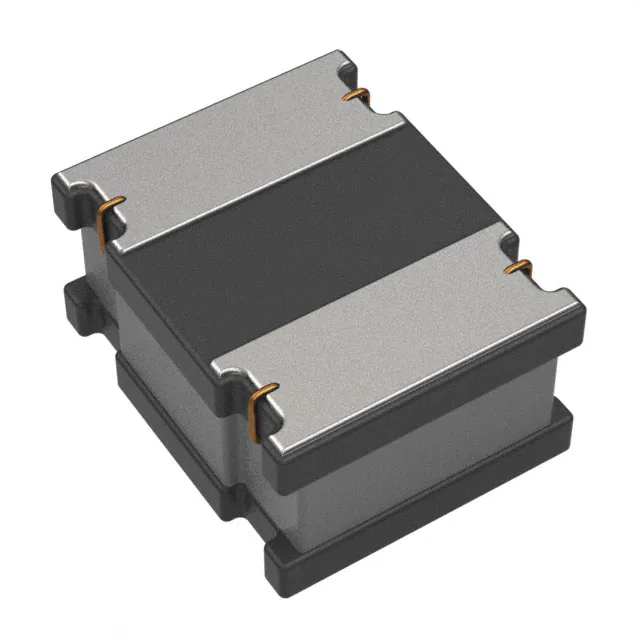

SDEM20161T-4R7MSFIXED IND 4.7UH 1A 0.426OHM SMD |
2,481 |
|
Datasheet |
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 1 A | 1.26A | Shielded | 426mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
NLV32T-331J-EFFIXED IND 330UH 40MA 34 OHM SMD |
2,475 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 40 mA | - | Unshielded | 34Ohm Max | 20 @ 796kHz | 5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLV32T-R12J-EFFIXED IND 120NH 450MA 220MOHM SM |
2,341 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 450 mA | - | Unshielded | 220mOhm Max | 30 @ 25.2MHz | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LSQPA322525T100MRFIXED IND 10UH 900MA 172.9 MOHM |
2,306 |
|
Datasheet |
LSQP | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 900mA | Unshielded | 172.9mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
NLV32T-R22J-EFFIXED IND 220NH 450MA 320MOHM SM |
2,233 |
|
Datasheet |
NLV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±5% | 450 mA | - | Unshielded | 320mOhm Max | 30 @ 25.2MHz | 350MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
AOTA-B252010S3R3MTFIXED IND 3.3UH 1.9A 110MOHM SMD |
2,090 |
|
Datasheet |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 1.9 A | 2.6A | Shielded | 110mOhm Max | - | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
NLV25T-1R8J-EFFIXED IND 1.8UH 210MA 1.45OHM SM |
1,970 |
|
Datasheet |
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 210 mA | - | Unshielded | 1.45Ohm Max | 30 @ 7.96MHz | 135MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
AOTA-B252010S1R5MTFIXED IND 1.5UH 3.6A 42MOHM SMD |
1,805 |
|
Datasheet |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 3.6 A | 3.7A | Shielded | 42mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
KLZ2012NHR101LTD25FIXED IND 100UH 140MA 4.55OHM SM |
1,736 |
|
Datasheet |
KLZ-HR | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 100 µH | ±20% | 140 mA | 30mA | Shielded | 4.55Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 2 MHz | Soft Termination | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
MLF1608A1R2JTD25FIXED IND 1.2UH 50MA 650MOHM SMD |
1,677 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±5% | 50 mA | - | Shielded | 650mOhm Max | 35 @ 10MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
AOTA-B252010SR47MTFIXED IND 0.47UH 5.7A 20MOHM SMD |
1,246 |
|
Datasheet |
AOTA-B252010S | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 5.7 A | 6.5A | Shielded | 20mOhm Max | - | 81MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-2,70mm.jpg)
|
CBC3225T102KRFIXED IND 1MH 100MA 13 OHM SMD |
687,203 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 100 mA | 100mA | Unshielded | 13Ohm | - | 1.6MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
CBC3225T220MRFIXED IND 22UH 780MA 351MOHM SMD |
103,229 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 780 mA | 620mA | Unshielded | 351mOhm Max | - | 17MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
CBC3225T680KRFIXED IND 68UH 410MA 1.3 OHM SMD |
89,203 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 410 mA | 320mA | Unshielded | 1.3Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
|
CBC3225T330KRFIXED IND 33UH 570MA 533MOHM SMD |
79,294 |
|
Datasheet |
CB, C Type | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 570 mA | 500mA | Unshielded | 533mOhm Max | - | 13MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
LQM2HPN1R0MJ0LFIXED IND 1UH 1.5A 113 MOHM SMD |
72,610 |
|
Datasheet |
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.5 A | - | Shielded | 113mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BKPB002012104R7MA2FIXED IND 4.7UH 700MA 260MOHM SM |
54,823 |
|
Datasheet |
BKPB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 700 mA | 200mA | Shielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
