Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQNA201212T100KRFIXED IND 10UH 520MA 650MOHM SMD |
4,112 |
|
Datasheet |
LSQN | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 200 mA | 200mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQW18AS10NG0ZDFIXED IND 10NH 700MA 130MOHM SMD |
3,921 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 10 nH | ±2% | 700 mA | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 4.8GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
MLF1608A3R9JT000FIXED IND 3.9UH 30MA 1.45OHM SMD |
3,624 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.9 µH | ±5% | 30 mA | - | Shielded | 1.45Ohm Max | 35 @ 10MHz | 60MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-1,45mm.jpg)
|
CB2012T1R0MFIXED IND 1UH 900MA 195 MOHM SMD |
3,478 |
|
Datasheet |
CB | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 900 mA | 500mA | Unshielded | 195mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW18AS82NG0ZDFIXED IND 82NH 400MA 540MOHM SMD |
3,369 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±2% | 400 mA | - | Unshielded | 540mOhm Max | 34 @ 150MHz | 1.7GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ASR25G0ZDFIXED IND 250NH 120MA 3.55OHM SM |
3,306 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 250 nH | ±2% | 120 mA | - | Unshielded | 3.55Ohm Max | 25 @ 100MHz | 822MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS5N1J0ZDFIXED IND 5.1NH 700MA 140MOHM SM |
3,200 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.1 nH | ±5% | 700 mA | - | Unshielded | 140mOhm Max | 20 @ 250MHz | 5.7GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ASR12G0ZDFIXED IND 120NH 300MA 650MOHM SM |
2,966 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 120 nH | ±2% | 300 mA | - | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | AEC-Q200 | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

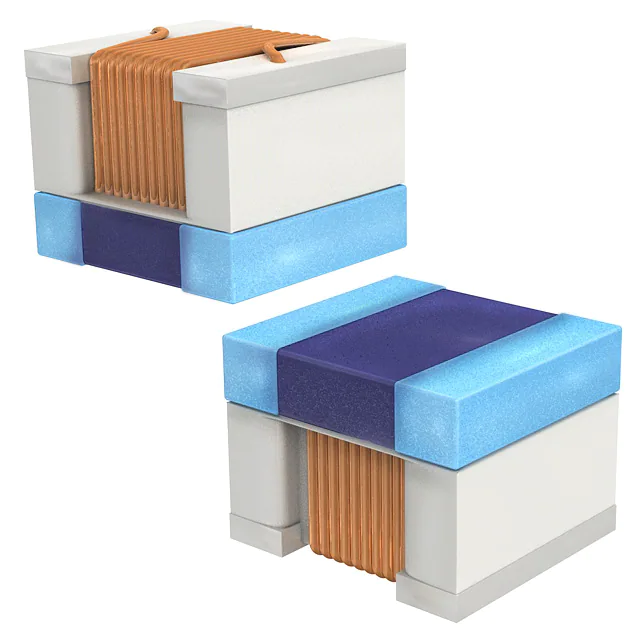

LQW2BAS56NJ00LFIXED IND 56NH 500MA 340MOHM SMD |
2,760 |
|
Datasheet |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm Max | 60 @ 500MHz | 1.6GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQW15AN27NJ8ZDFIXED IND 27NH 680MA 0.288OHM SM |
2,686 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 27 nH | ±5% | 680 mA | - | Unshielded | 288mOhm Max | 30 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
NLCV32T-101K-EFFIXED IND 100UH 120MA 4.81OHM SM |
2,615 |
|
Datasheet |
NLCV-EF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 120 mA | - | Unshielded | 4.81Ohm Max | 15 @ 796kHz | 10MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQM18NN47NM00DFIXED IND 47NH 50MA 300 MOHM SMD |
1,775 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 47 nH | ±20% | 50 mA | - | Shielded | 300mOhm Max | 10 @ 50MHz | 260MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
MLF2012A1R0JT000FIXED IND 1UH 80MA 300 MOHM SMD |
1,304 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±5% | 80 mA | - | Shielded | 300mOhm Max | 45 @ 10MHz | 120MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MLF1608DR82JT000FIXED IND 820NH 70MA 1.4 OHM SMD |
1,268 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±5% | 70 mA | - | Shielded | 1.4Ohm Max | 15 @ 25MHz | 130MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608A2R2JT000FIXED IND 2.2UH 30MA 1 OHM SMD |
1,129 |
|
Datasheet |
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±5% | 30 mA | - | Shielded | 1Ohm Max | 35 @ 10MHz | 80MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-1,80mm.jpg)
|
CB2016T100MFIXED IND 10UH 520MA 650MOHM SMD |
1,054 |
|
Datasheet |
CB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 520 mA | 250mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
MLP2012S1R0MT0S1FIXED IND 1UH 1A 208 MOHM SMD |
776,772 |
|
Datasheet |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1 A | - | Shielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
MAMK2520T1R0MFIXED IND 1UH 2.7A 59 MOHM SMD |
118,111 |
|
Datasheet |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 2.7 A | 3.1A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW15AN22NG80DFIXED IND 22NH 780MA 0.202OHM SM |
93,215 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 22 nH | ±2% | 780 mA | - | Unshielded | 202mOhm Max | 30 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MAMK2520T2R2MFIXED IND 2.2UH 1.9A 117MOHM SMD |
69,630 |
|
Datasheet |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2A | Shielded | 117mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
