Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

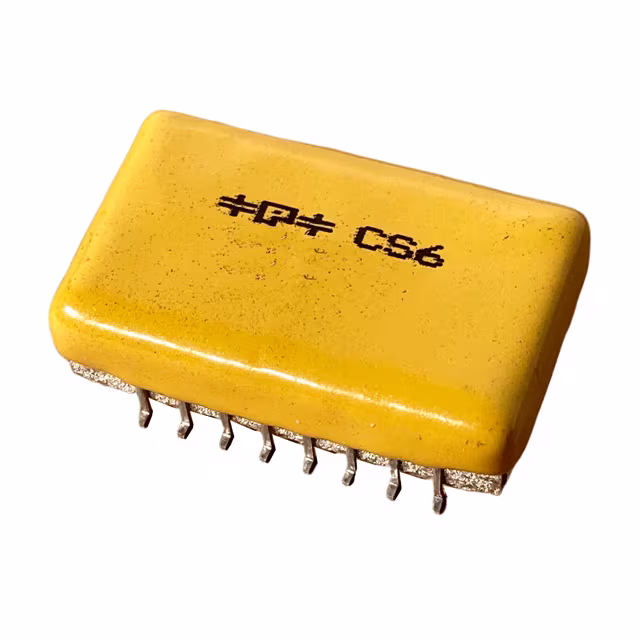

105K500CS6G-FACAPACITOR MLP 1UF 500V SMD |
8,573 |
|
Datasheet |
16-SMD, Gull Wing | 1 µF | ±10% | 250V | 500V | Polyester, Metallized | 8 mOhms | -55°C ~ 125°C | Surface Mount | 1.134" L x 0.701" W (28.80mm x 17.80mm) | 0.319" (8.10mm) | Gull Wing | 0.591" (15.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
105K250CS6-FACAPACITOR MLP 1.0UF 250V THRU-HO |
7,164 |
|
Datasheet |
6-DIP | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | 12 mOhms | -55°C ~ 125°C | Through Hole | 0.701" L x 0.441" W (17.80mm x 11.20mm) | 0.295" (7.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
405K100RA4-FACAPACITOR MLP 4.0UF 100V RADIAL |
8,099 |
|
Datasheet |
Radial | 4 µF | ±10% | 80V | 100V | Polyester, Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 0.449" L x 0.201" W (11.40mm x 5.10mm) | 0.382" (9.70mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
225K100RA3CAPACITOR MLP 2.2UF 100V RADIAL |
9,006 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 80V | 100V | Polyester, Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 0.350" L x 0.248" W (8.90mm x 6.30mm) | 0.350" (8.90mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
ECQ-E6102JFCAP FILM 1000PF 5% 630VDC RAD |
2,731 |
|
Datasheet |
Radial | 1000 pF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
B25669A5467J375CAPACITOR PFC PHASECAP HD |
8,638 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25669L4827J375CAPACITOR PFC PHASECAP HD |
8,998 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25669B4927J375CAPACITOR PFC PHASECAP HD |
9,075 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25673A4282A140PHASECAP COMPACT PFC CAPACITOR |
8,381 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25673A5392A520PHASECAP COMPACT PFC CAPACITOR |
4,683 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25673A5162A720PHASECAP COMPACT PFC CAPACITOR |
4,272 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25673L6252S90PHASECAP COMPACT PFC CAPACITOR |
5,311 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25666W7167A375CAPACITORS FOR POWER ELECTRONICS |
3,742 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMK5105K50J02L4MMK5105K50J02L4 |
8,775 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PFR5682H63J11L4BULKFILM CAP 6800PF 63.0V |
6,649 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
.jpg)
|
R475I24705002MCAP FILM 0.047UF 20% 1KVDC RAD |
4,919 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
WMF6S33KCAP FILM 0.033 MFD 600VDC AXIAL |
2,651 |
|
- |
Axial | 0.33 µF | ±10% | 250V | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.394" Dia x 1.000" L (10.00mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|
|
PCDGX60A60J572SCAP FILM 60UF 5% 600VAC RADIAL |
4,499 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 600V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.465" Dia (88.00mm) | 5.829" (148.05mm) | Threaded, Male | 1.375" (34.93mm) | General Purpose | - | - |
|
|
PCDGT48A40J572SCAP FILM 40UF 5% 480VAC RADIAL |
4,544 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.829" (148.05mm) | Threaded, Male | 1.250" (31.75mm) | General Purpose | - | - |
|
|
PCDGT24A100J572SCAP FILM 100UF 5% 240VAC RADIAL |
7,220 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 240V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.829" (148.05mm) | Threaded, Male | 1.250" (31.75mm) | General Purpose | - | - |
