Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32798S2406K592CAP FILM 40UF 10% 630VDC RADIAL |
3,978 |
|
- |
Radial - 4 Leads | 40 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; EMI, RFI Suppression | - | - |
|
|
B32798S2756K503CAP FILM 75UF 10% 630VDC RADIAL |
6,151 |
|
- |
Radial - 4 Leads | 75 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; EMI, RFI Suppression | - | - |
|

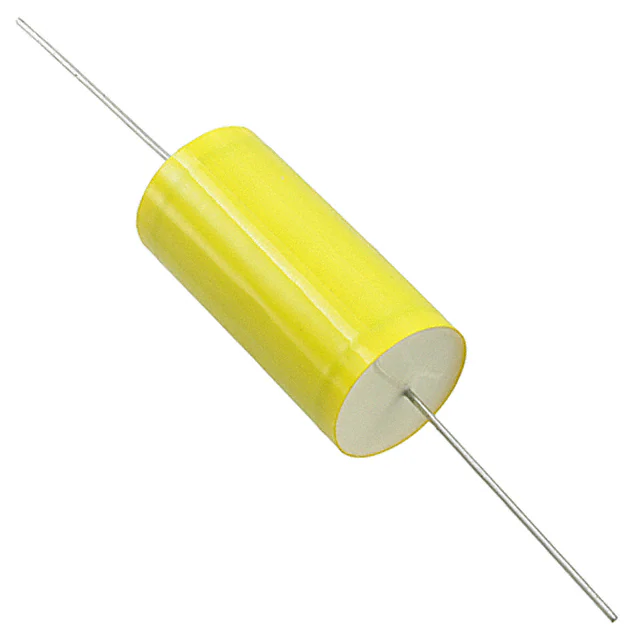

A72QQ2220ZA00MCAP FILM 0.022UF 20% 1KVDC AXIAL |
8,823 |
|
Datasheet |
Axial | 0.022 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.433" Dia x 1.102" L (11.00mm x 28.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PFCHX48D20S108TCAP FILM 76.8UF 480VAC RADIAL |
7,663 |
|
Datasheet |
Radial, Can | 76.8 µF | 0%, +10% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 55°C | Chassis, Stud Mount | 3.500" Dia (88.90mm) | 10.900" (276.86mm) | Terminal Block | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
MMK5154J63J01L15.0CBULKCAP FILM 0.15UF 5% 63VDC RAD |
9,844 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
PHE840MB5100MB04R17CAP FILM 10000PF 20% 760VDC RAD |
8,233 |
|
Datasheet |
Radial | 10000 pF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32231D6155M000CAP FILM DC |
9,632 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32232A3475K000CAP FILM DC |
5,461 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32668S7155K503CAP FILM DC |
4,410 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B32669S3105K501CAP FILM DC |
3,669 |
|
Datasheet |
Axial | - | - | - | - | - | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | EMI, RFI Suppression | - | - |
|
|
B32669S3106K500CAP FILM DC |
3,116 |
|
Datasheet |
Axial | - | - | - | - | - | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | EMI, RFI Suppression | - | - |
|
|
B32669S3405K506CAP FILM DC |
2,574 |
|
Datasheet |
Axial | - | - | - | - | - | - | -40°C ~ 85°C | Through Hole | - | - | PC Pins | - | EMI, RFI Suppression | - | - |
|
|
935H2W20K-FCAP FILM 20UF 10% 200VDC AXIAL |
9,521 |
|
Datasheet |
Axial | 20 µF | ±10% | 140V | 200V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Chassis Mount | 1.315" Dia x 2.248" L (33.40mm x 57.10mm) | - | Solder Lug | - | High Frequency, Switching | - | Low ESR |
|
|
405PHC850KSCAP FILM 4UF 10% 850VDC AXIAL |
5,884 |
|
Datasheet |
Axial | 4 µF | ±10% | 450V | 850V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Through Hole | 1.299" Dia x 2.323" L (33.00mm x 59.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
|
B33352B4305J081CAP FILM 3UF 5% 400VAC RADIAL |
6,859 |
|
Datasheet |
Radial | 3 µF | ±5% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.457" L x 0.709" W (37.00mm x 18.00mm) | 1.220" (31.00mm) | Quick Connect - 0.189" (4.8mm) | - | Motor Run | - | - |
|
AMP0025F33SCAP FILM 287.8UF 480VAC RADIAL |
6,643 |
|
Datasheet |
Radial, Can - 3 Lead | 287.8 µF | 0%, +15% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 46°C | Chassis Mount | 4.560" L x 3.750" W (115.82mm x 95.25mm) | 9.060" (230.12mm) | Threaded, Male | 1.000" (25.40mm) | 3 Phase, Power Factor Correction (PFC) | - | Long Life |
|
|
B32377A7107J020CAP FILM 100UF 5% 1.8KVDC RADIAL |
2,636 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 720V | 1800V (1.8kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 5.354" Dia (136.00mm) | 10.925" (277.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
|
B32377A8256J050CAP FILM 3X25UF 5% 2.1KVDC RAD |
7,255 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 850V | 2100V (2.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 7.972" (202.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
|
207MDCL152KFK32CAP FILM 200UF 10% 1.5KVDC RAD |
2,365 |
|
Datasheet |
Radial, Can | 200 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 2.992" Dia (76.00mm) | 7.087" (180.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | Low ESR |
|
|
03269CAPX FILM X2 .15UF 10% 310V RA |
4,062 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
