Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32320I2656J011CAP FILM 65UF 5% 350VDC RADIAL |
9,088 |
|
Datasheet |
Radial, Can | 65 µF | ±5% | - | 350V | Polypropylene (PP), Metallized | - | -25°C ~ 65°C | Chassis Mount | 1.575" Dia (40.00mm) | 2.362" (60.00mm) | Quick Connect, Disconnect | - | DC Link, DC Filtering | - | - |
|
|
F339X244730MFM2B0CAP FILM 0.47UF 20% 630VDC RAD |
7,970 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.531" W (18.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
B32778H9506K000CAP FILM 50UF 10% 800VDC RADIAL |
2,585 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.496" W (57.50mm x 38.00mm) | 2.264" (57.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
A72UT2220AA00KCAP FILM 0.022UF 10% 2KVDC AXIAL |
3,015 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.630" Dia x 1.299" L (16.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

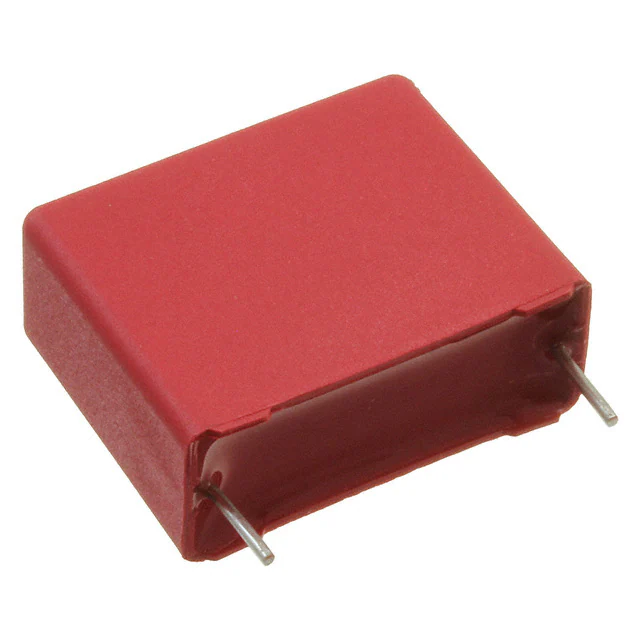

MKPCJ042205I00KSC9CAP FILM 2.2UF 10% 630VDC RAD |
5,323 |
|
- |
Radial | 2.2 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
MPX12W1100FA00MSSDCAP FILM 1000PF 20% 300VAC RAD |
7,569 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.157" W (13.50mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MPX12W3100FI00MSSDCAP FILM 0.1UF 20% 300VAC RAD |
3,875 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.102" L x 0.394" W (28.00mm x 10.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|

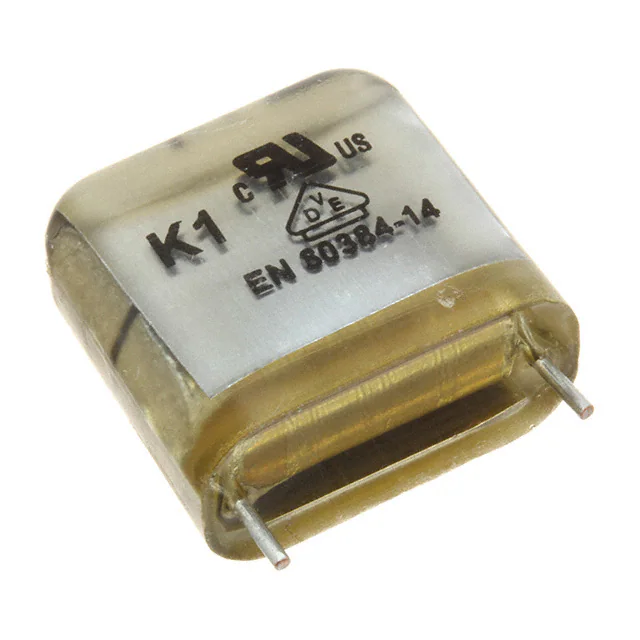

MPX14W2330FG00KSSDCAP FILM 0.033UF 10% 440VAC RAD |
2,669 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 440V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.748" L x 0.394" W (19.00mm x 10.00mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|

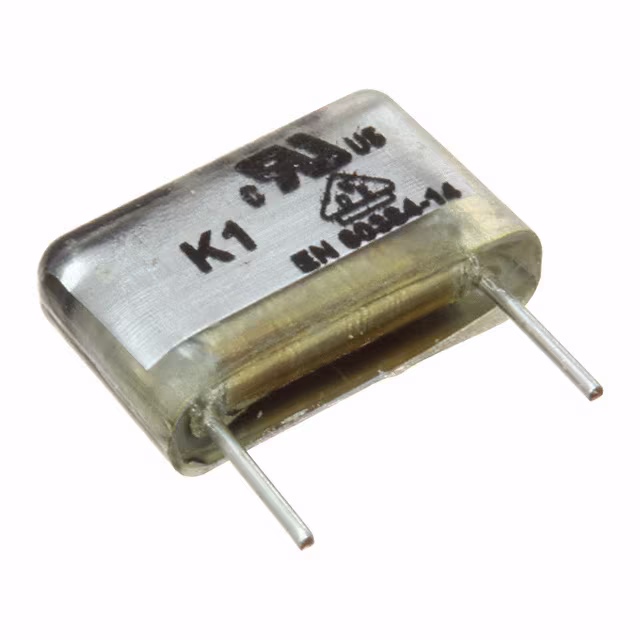

MPX21W1330FA00MSSDCAP FILM 3300PF 20% 275VAC RAD |
7,720 |
|
Datasheet |
Radial | 3300 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.157" W (13.50mm x 4.00mm) | 0.335" (8.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|

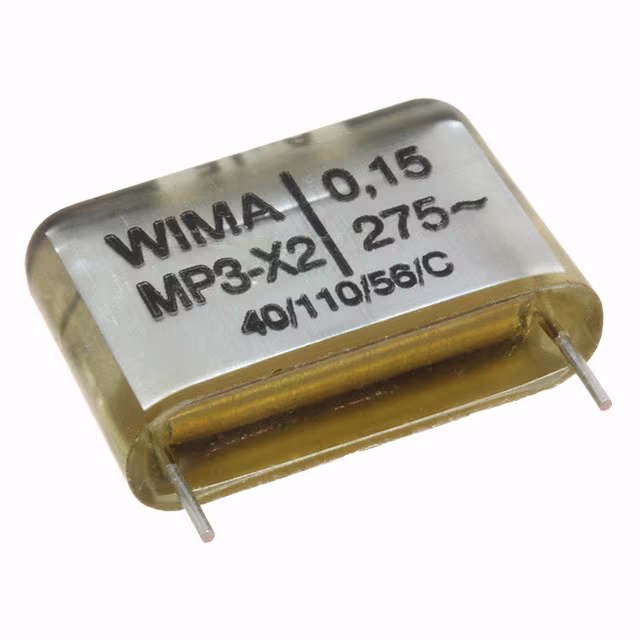

MPX21W3150FH00MSSDCAP FILM 0.15UF 20% 275VAC RAD |
4,595 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.102" L x 0.315" W (28.00mm x 8.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
MPY20W2100FC00MSC9CAP FILM 10000PF 20% 250VAC RAD |
5,817 |
|
Datasheet |
Radial | 10000 pF | ±20% | 250V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.748" L x 0.197" W (19.00mm x 5.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|

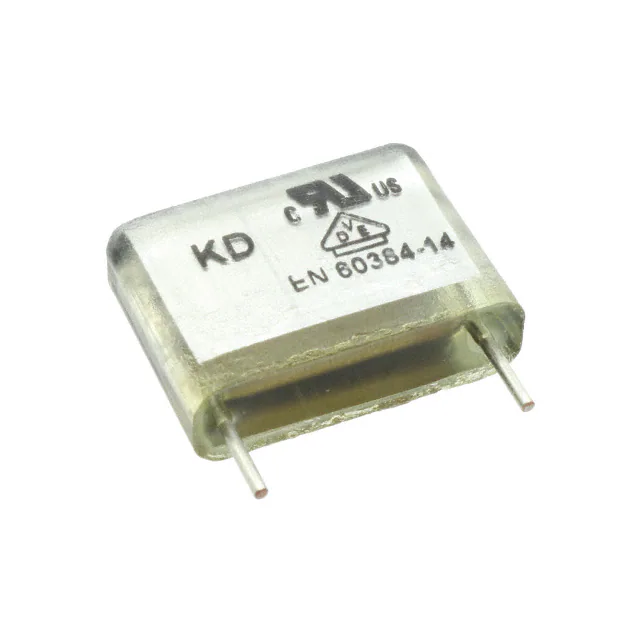

MPY20W2150FD00MSSDCAP FILM 0.015UF 20% 250VAC RAD |
5,298 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 250V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.748" L x 0.236" W (19.00mm x 6.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
C20AQGR5330AASKCAP FILM 33UF 10% 1.7KVDC RADIAL |
7,042 |
|
Datasheet |
Radial, Can | 33 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 2 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.866" (149.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PKGR6300AASJCAP FILM 300UF 5% 1KVDC RADIAL |
9,316 |
|
Datasheet |
Radial, Can | 300 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6300ZASJCAP FILM 300UF 5% 700VDC RADIAL |
7,452 |
|
Datasheet |
Radial, Can | 300 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | 2.3 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6500ZASJCAP FILM 500UF 5% 700VDC RADIAL |
7,315 |
|
Datasheet |
Radial, Can | 500 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | 1.8 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
B25667C3247A375CAP FILM 83UF -5/+10% 400VAC RAD |
4,219 |
|
Datasheet |
Radial, Can | 83 µF | -5%, +10% | 400V | - | Polypropylene (PP) | - | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.457" (164.00mm) | Terminal Block | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
B25667C3497A375CAP FILM 165UF -5% +10% 400VAC |
5,150 |
|
Datasheet |
Radial, Can | 165 µF | -5%, +10% | 400V | - | Polypropylene (PP) | - | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 7.874" (200.00mm) | Terminal Block | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
B25650B9458K014CAP FILM POWER |
3,095 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B25650C4977A004CAP FILM |
6,023 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
