Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

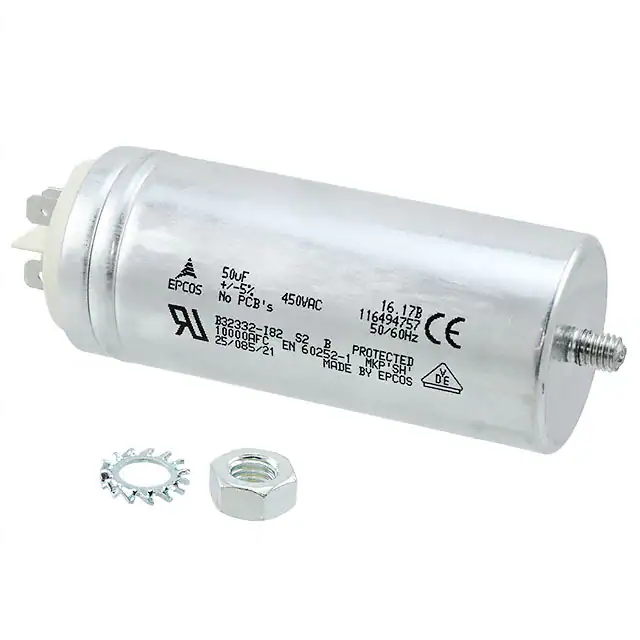

B32332I6506J082CAP FILM 50UF 5% 450VAC RADIAL |
9,984 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 4.173" (106.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
C4AQQEW5450M3AJCAP FILM 45UF 5% 1.1KVDC RADIAL |
7,251 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQGBW6100P3MKCAP FILM 100UF 10% 450VDC RADIAL |
3 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4BSPBX4300ZBNJCAP FILM 3UF 5% 1.2KVDC SCREW |
4,303 |
|
Datasheet |
Rectangular Box | 3 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.457" (37.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQSEW5400A3BJCAP FILM 40UF 5% 1.5KVDC RAD |
5,761 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32332I6606J082CAP FILM 60UF 5% 450VAC RADIAL |
5,898 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 4.173" (106.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
MKP1848C65080JY5CAP FILM 50UF 5% 800VDC RADIAL |
2,206 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
C4AQOEW5800M3BJCAP FILM 80UF 5% 900VDC RADIAL |
5 |
|
Datasheet |
Radial - 4 Leads | 80 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
EZP-E50107MTACAP FILM 100UF 10% 500VDC RADIAL |
7,338 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.224" (56.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
406PHC250KCAP FILM 40UF 10% 250VDC AXIAL |
4,073 |
|
Datasheet |
Axial | 40 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 1.417" Dia x 2.165" L (36.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
B32718H5177K000MKP DC FILTERING - 500VDC, 170UF |
4,352 |
|
Datasheet |
Radial - 4 Leads | 170 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
FFV36J0256K--CAP FILM 25UF 10% 500VDC RADIAL |
7,541 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | 105V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
|
C4AQJEW6130M3BJCAP FILM 130UF 5% 700VDC RADIAL |
6,650 |
|
Datasheet |
Radial - 4 Leads | 130 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
B32778G4117K000CAP FILM 110UF 450VDC RAD 4 LEAD |
8,628 |
|
Datasheet |
Radial - 4 Leads | 110 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1848C71010JY5CAP FILM 100UF 5% 1KVDC RADIAL |
5,189 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 2.756" W (57.50mm x 70.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
C44AMGP5500ZA0JCAP FILM 50UF 5% 850VDC RADIAL |
6,063 |
|
Datasheet |
Radial, Can | 50 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C4DEHPQ6150A8TKCAP FILM 150UF 10% 600VDC RADIAL |
4,746 |
|
Datasheet |
Radial, Can | 150 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 0.75 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
|
C44PLGR6500RASKCAP FILM 500UF 10% 700VDC RADIAL |
3,543 |
|
Datasheet |
Radial, Can | 500 µF | ±10% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44PKGR6200RASJCAP FILM 200UF 5% 1KVDC RADIAL |
9,479 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44UQGT7178M32KC44U_M, FILM, METALLIZED POLYPRO |
1 |
|
Datasheet |
Radial, Can | 1780 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 9.213" (234.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
