Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A72QT3100AA02MCAP FILM 0.1UF 20% 1KVDC AXIAL |
3,852 |
|
Datasheet |
Axial | 0.1 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.299" L (19.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

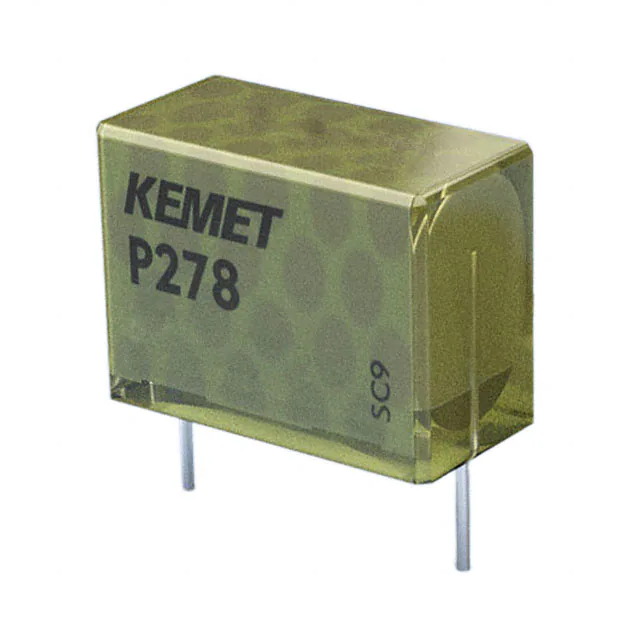

P278HE222M480ACAP FILM 2200PF 20% 480VAC RAD |
2,350 |
|
Datasheet |
Radial | 2200 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X1 | - |
|
|
P278QS223M480ACAP FILM 0.022UF 20% 1KVDC RAD |
6,197 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 480V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X1 | - |
|
|
P278SJ473M480ACAP FILM 0.047UF 20% 480VAC RAD |
5,934 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
BFC237662103CAP FILM 1000PF 5% 630VDC RADIAL |
9,078 |
|
Datasheet |
Radial | 1000 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662104CAP FILM 0.1UF 5% 630VDC RADIAL |
9,591 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662113CAP FILM 0.011UF 5% 630VDC RAD |
2,723 |
|
Datasheet |
Radial | 0.011 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662123CAP FILM 0.012UF 5% 630VDC RAD |
6,840 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662153CAP FILM 0.015UF 5% 630VDC RAD |
8,030 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662154CAP FILM 0.15UF 5% 630VDC RADIAL |
9,633 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662224CAP FILM 0.22UF 5% 630VDC RADIAL |
6,074 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237662473CAP FILM 0.047UF 5% 630VDC RAD |
7,472 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672103CAP FILM 1000PF 5% 1KVDC RADIAL |
9,138 |
|
Datasheet |
Radial | 1000 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672104CAP FILM 0.1UF 5% 1KVDC RADIAL |
5,273 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672184CAP FILM 0.18UF 5% 1KVDC RADIAL |
4,952 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672333CAP FILM 0.033UF 5% 1KVDC RADIAL |
6,941 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672472CAP FILM 4700PF 5% 1KVDC RADIAL |
9,849 |
|
Datasheet |
Radial | 4700 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672473CAP FILM 0.047UF 5% 1KVDC RADIAL |
2,423 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237672823CAP FILM 0.082UF 5% 1KVDC RADIAL |
4,570 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237676512CAP FILM 5100PF 3.5% 1KVDC RAD |
5,580 |
|
Datasheet |
Radial | 5100 pF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.728" (18.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
