Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFD66T50K475B-FCAP FILM 50UF 10% 660VAC RADIAL |
4,731 |
|
Datasheet |
Radial, Can | 50 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.870" (123.70mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
CB262E0225JBCCAP FILM 2.2UF 5% 100VDC 4030 |
7,062 |
|
Datasheet |
4030 (10276 Metric) | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | - | - | Solder Pads | - | General Purpose | - | - |
|
|
PHE426HJ5330JR17T0CAP FILM 0.033UF 250VDC RADIAL |
3,117 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | AC and Pulse |
|
PME261KE7100KR30CAP FILM 1UF 10% 400VDC RADIAL |
8,401 |
|
Datasheet |
Radial | 1 µF | ±10% | 220V | 400V | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | General Purpose | - | - |
|
PME271ED6150KR30CAP FILM 0.15UF 10% 300VAC RAD |
6,653 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 300V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
PHE820MB5470MR17CAP FILM 0.047UF 20% 275VAC RAD |
6,064 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE820ED6100MR06L2CAP FILM 0.1UF 20% 300VAC RADIAL |
8,361 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R71QW4220AA00JCAP FILM 2.2UF 5% 1KVDC RADIAL |
5,615 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|

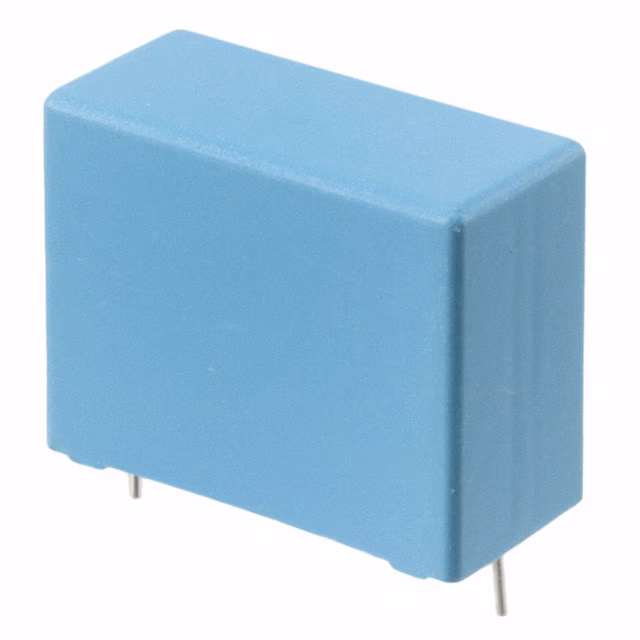

PHE820EF6680MR06L2CAP FILM 0.68UF 20% 300VAC RAD |
8,991 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B25620B1107K101CAP FILM 100UF 10% 1.1KVDC RAD |
2,113 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 2.795" (71.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1117K981CAP FILM 110UF 10% 1.98KVDC RAD |
5,590 |
|
Datasheet |
Radial, Can | 110 µF | ±10% | - | 1980V (1.98kV) | Polypropylene (PP), Metallized | - | -55°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.850" (174.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B118K882CAP FILM 1100UF 10% 880VDC RAD |
3,611 |
|
Datasheet |
Radial, Can | 1100 µF | ±10% | - | 880V | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1217K982CAP FILM 215UF 10% 1.98KVDC RAD |
7,287 |
|
Datasheet |
Radial, Can | 215 µF | ±10% | - | 1980V (1.98kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1237K101CAP FILM 230UF 10% 1.1KVDC RAD |
7,602 |
|
Datasheet |
Radial, Can | 230 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 4.803" (122.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1267K101CAP FILM 260UF 10% 1.1KVDC RAD |
6,151 |
|
Datasheet |
Radial, Can | 260 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.236" (133.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1287K102CAP FILM 280UF 10% 1.1KVDC RAD |
5,949 |
|
Datasheet |
Radial, Can | 280 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 3.110" (79.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1306K981CAP FILM 30UF 10% 1.98KVDC RAD |
9,294 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | - | 1980V (1.98kV) | Polypropylene (PP), Metallized | - | -55°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 2.795" (71.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1317K322CAP FILM 310UF 10% 1.32KVDC RAD |
2,623 |
|
Datasheet |
Radial, Can | 310 µF | ±10% | - | 1320V (1.32kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 3.780" (96.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1357K101CAP FILM 350UF 10% 1.1KVDC RAD |
7,233 |
|
Datasheet |
Radial, Can | 350 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 6.850" (174.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
B25620B1406K981CAP FILM 40UF 10% 1.98KVDC RAD |
2,296 |
|
Datasheet |
Radial, Can | 40 µF | ±10% | - | 1980V (1.98kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.071" (78.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
