Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32774X8305K000CAP FILM 3UF 10% 800VDC RADIAL |
6,596 |
|
Datasheet |
Radial | 3 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 24.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
R71QR34704010KCAP FILM 0.47UF 10% 1KVDC RADIAL |
6,514 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
ECW-FD2W475KCAP FILM 4.7UF 10% 450VDC RADIAL |
2,786 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996" L x 0.461" W (25.30mm x 11.70mm) | 0.646" (16.40mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
473MPW630KCAP FILM 0.047UF 630VDC AXIAL |
8,386 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.354" Dia x 0.807" L (9.00mm x 20.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
B32923H3105K000CAP FILM 1UF 10% 630VDC RADIAL |
7,574 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R76QN32205050JFILM, RADIAL, PULSE, DOUBLE META |
2,712 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME295RB3470MR30CAP FILM 470PF 20% 480VAC RADIAL |
4,839 |
|
Datasheet |
Radial | 470 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
B32653A4105K000CAP FILM 1UF 10% 400VDC RADIAL |
6,060 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-F6473JLCAP FILM 0.047UF 5% 630VDC RAD |
14 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.252" W (15.50mm x 6.40mm) | 0.484" (12.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
B32563J3225K000CAP FILM 2.2UF 10% 250VDC 2DIP |
5,783 |
|
Datasheet |
2-DIP | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.945" L x 0.327" W (24.00mm x 8.30mm) | 0.441" (11.20mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
F861BZ105M310LCAP FILM 1UF 20% 630VDC RADIAL |
8,735 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32774X9305K000CAP FILM 3UF 10% 900VDC RADIAL |
8,325 |
|
Datasheet |
Radial | 3 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 22 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
105MKP275KCAP FILM 1UF 10% 310VAC RADIAL |
15 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.315" W (31.00mm x 8.00mm) | 0.681" (17.30mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKS4J034705G00KSSDCAP FILM 0.47UF 10% 630VDC RAD |
5,421 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32033B4104K000CAP FILM 0.1UF 10% 1KVDC RADIAL |
8,132 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

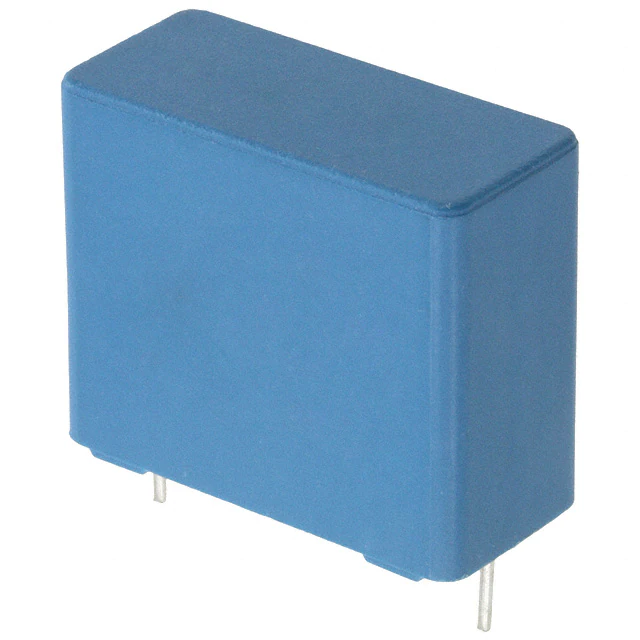

B32023A3224M000CAP FILM 0.22UF 20% 1.5KVDC RAD |
6,395 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
B32913B5224KCAP FILM 0.22UF 10% 1KVDC RADIAL |
5,582 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R533R422050P0KCAP FILM 2.2UF 10% 630VDC RADIAL |
6,724 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
FKP1G031005H00JSSDCAP FILM 0.1UF 5% 400VDC RAD |
6,877 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
50MU102KY11608CAP FILM 1000PF 10% 50VDC 0603 |
4,210 |
|
Datasheet |
0603 (1608 Metric) | 1000 pF | ±10% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
