Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B81122A1334MCAP FILM 0.33UF 20% 250VAC RAD |
4,332 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 250V | - | Polypropylene (PP) | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | - |
|
|
B81141C1223M000CAP FILM 0.022UF 20% 440VAC RAD |
2,585 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
B81141C1333M000CAP FILM 0.033UF 20% 440VAC RAD |
5,930 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
B81141C1473M000CAP FILM 0.047UF 20% 440VAC RAD |
3,895 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
B81141C1683M000CAP FILM 0.068UF 20% 440VAC RAD |
7,686 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|

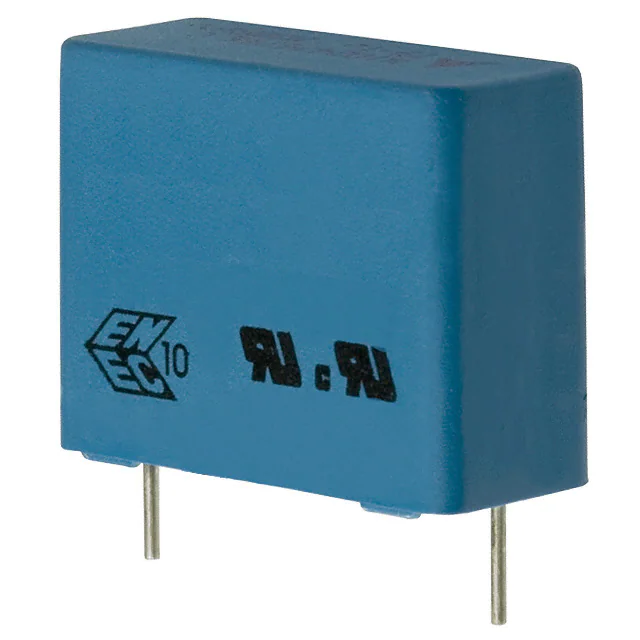

B81141C1154M000CAP FILM 0.15UF 20% 440VAC RAD |
8,745 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B81141C1334M000CAP FILM 0.33UF 20% 440VAC RAD |
2,666 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B81141C1474M000CAP FILM 0.47UF 20% 440VAC RAD |
9,095 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B81141C1684M000CAP FILM 0.68UF 20% 440VAC RAD |
3,478 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 440V | - | Polyester, Metallized | - | -40°C ~ 85°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
PM1A184FCAP FILM 0.18UF 100VDC AXIAL |
4,108 |
|
- |
Axial | 0.18 µF | - | - | 100V | Polyester, Metallized | - | - | Through Hole | - | - | PC Pins | - | - | - | - |
|
|
B25834L6106K9CAP FILM 10UF 10% 900VAC RADIAL |
8,103 |
|
Datasheet |
Radial, Can | 10 µF | ±10% | 900V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 3.386" (86.00mm) | Quick Connect - 0.250" (6.3mm) | - | Commutating; Damping | - | - |
|
|
ECQ-P1H102FZWCAP FILM 1000PF 1% 50VDC RADIAL |
2,195 |
|
Datasheet |
Radial | 1000 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H112FZWCAP FILM 1100PF 1% 50VDC RADIAL |
8,663 |
|
Datasheet |
Radial | 1100 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H152FZWCAP FILM 1500PF 1% 50VDC RADIAL |
2,732 |
|
Datasheet |
Radial | 1500 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H162FZWCAP FILM 1600PF 1% 50VDC RADIAL |
9,672 |
|
Datasheet |
Radial | 1600 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H182FZWCAP FILM 1800PF 1% 50VDC RADIAL |
6,164 |
|
Datasheet |
Radial | 1800 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H202FZWCAP FILM 2000PF 1% 50VDC RADIAL |
7,805 |
|
Datasheet |
Radial | 2000 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H222FZWCAP FILM 2200PF 1% 50VDC RADIAL |
2,535 |
|
Datasheet |
Radial | 2200 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H242FZWCAP FILM 2400PF 1% 50VDC RADIAL |
3,258 |
|
Datasheet |
Radial | 2400 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
ECQ-P1H272FZWCAP FILM 2700PF 1% 50VDC RADIAL |
6,688 |
|
Datasheet |
Radial | 2700 pF | ±1% | - | 50V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.492" (12.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
