Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB24D0476K--CAP FILM 47UF 10% 75VDC RADIAL |
5,147 |
|
Datasheet |
Radial | 47 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.575" W (31.10mm x 14.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
DCP4N053007ID4KSSDCAP FILM 30UF 10% 900VDC RADIAL |
4,937 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 3.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.220" W (41.50mm x 31.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
935C1W2K-FCAP FILM 2UF 10% 100VDC AXIAL |
7,247 |
|
Datasheet |
Axial | 2 µF | ±10% | 70V | 100V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.535" Dia x 0.937" L (13.60mm x 23.80mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C4BSNBX4200ZBLJCAP FILM 2UF 5% 1KVDC SCREW |
3,423 |
|
Datasheet |
Rectangular Box | 2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
DCP4R254009JD4KSSDCAP FILM 40UF 10% 1.3KVDC RADIAL |
9,373 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -55°C ~ 105°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
SFC66T10K291B-FCAP FILM 10UF 10% 660VAC RADIAL |
2,597 |
|
Datasheet |
Radial, Can | 10 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 3.030" (76.96mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
C4AQQEW5650A3BJCAP FILM 65UF 5% 1.1KVDC RAD |
6,867 |
|
Datasheet |
Radial - 4 Leads | 65 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQIEW6100A3BJCAP FILM 100UF 5% 800VDC RAD |
8,547 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
FFB54D0117KJCCAP FILM 110UF 10% 75VDC RADIAL |
4,131 |
|
Datasheet |
Radial - 4 Leads | 110 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
B32361A2107J050CAP FILM 100UF 5% 250VAC RADIAL |
9,017 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
JSNEJ5430KB6L0CAP FILM 43UF 10% 100VDC SMD |
6,692 |
|
Datasheet |
SMD, J-Lead | 43 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 1.181" W (17.30mm x 30.00mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
SFC37T30K291B-FCAP FILM 30UF 10% 370VAC RADIAL |
4,407 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 3.030" (76.96mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|

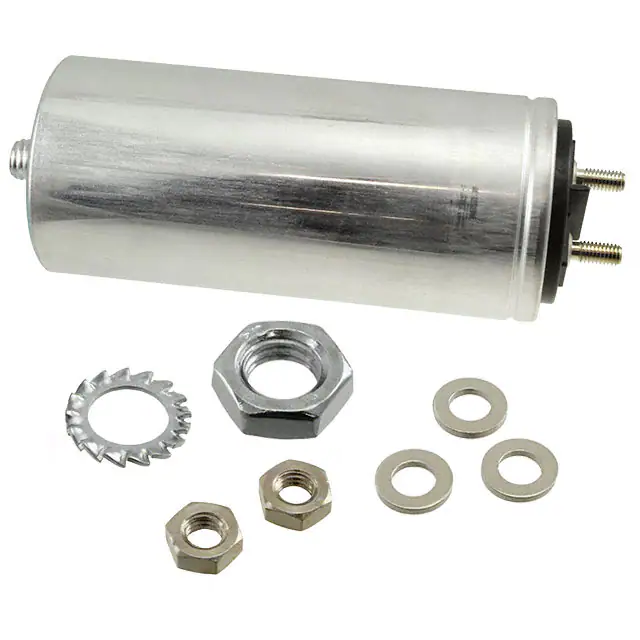

C44AFGP6100ZG0JCAP FILM 100UF 5% 400VDC RADIAL |
7,963 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
B25632E1117K000POWER ELECTRONIC CAPACITORS (PEC |
8,592 |
|
Datasheet |
Radial, Can | 110 µF | ±10% | - | 1000V (1kV) | - | 1.2 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.008" (51.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
B32362A3157J030CAP FILM 150UF 5% 330VAC RADIAL |
9,073 |
|
Datasheet |
Radial, Can | 150 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.984" (152.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B32373A3307J030CAP FILM 300UF 5% 900VDC RADIAL |
9,588 |
|
Datasheet |
Radial, Can | 300 µF | ±5% | 330V | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.776" (197.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25690A1507K101CAP FILM 500UF 10% 1.1KV RADIAL |
2,724 |
|
Datasheet |
Radial, Can | 500 µF | ±10% | - | 1100V (1.1kV) | - | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 3.937" Dia (100.00mm) | 5.315" (135.00mm) | Threaded, Female | 1.260" (32.00mm) | General Purpose | - | - |
.jpg)
|
944U470K122AAMCAP FILM 47UF 10% 1.2KVDC RADIAL |
6,853 |
|
Datasheet |
Radial, Can | 47 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 0.7 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
B32362A3307J030CAP FILM 300UF 5% 330VAC RADIAL |
8,097 |
|
Datasheet |
Radial, Can | 300 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.756" (197.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
944L161K801ABIDC LINK, LOW INDUCTANCE |
9,924 |
|
Datasheet |
Radial, Can | 160 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.028" (51.50mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESR, Low ESL |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
