Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1F052709JD4MSSDMKP 10 27.0 F 250 VDC 45X65X57 P |
3,488 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
24FB4470-FCAP FILM 70UF 10% 440VAC RADIAL |
8,581 |
|
Datasheet |
Radial, Can | 70 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.625" Dia (66.68mm), Lip | 5.000" (127.00mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
|
C44AFFP5400ZA0JCAP POLYPROP FILM CAN |
6,439 |
|
Datasheet |
Radial, Can | 40 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
DCP4I058007KD4KSSDDC-LINK MKP 4 80.0 F 600 VDC 40X |
4,454 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I058007KD2KSSDDC-LINK MKP 4 80.0 F 600 VDC 40X |
8,955 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I058007KD2MSSDDC-LINK MKP 4 80.0 F 600 VDC 40X |
5,412 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4I058007KD4MSSDDC-LINK MKP 4 80.0 F 600 VDC 40X |
6,197 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1F052709JD4KSSDMKP 10 27.0 F 250 VDC 45X65X57 P |
4,748 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

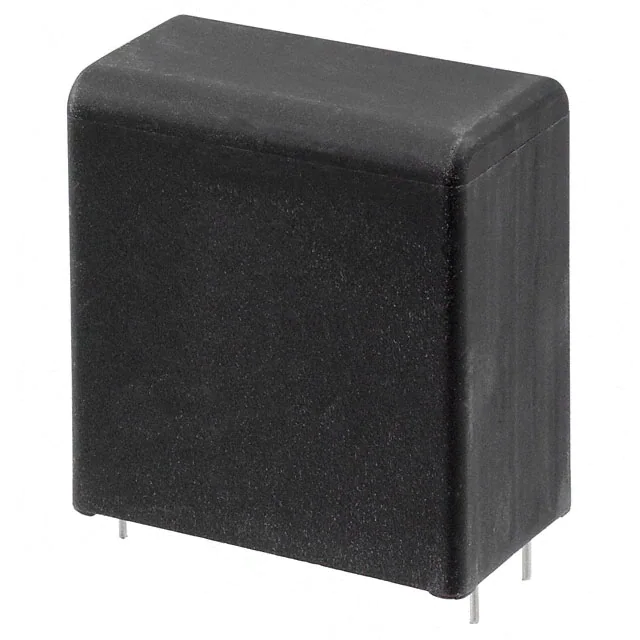

MKP1848C66550JY5CAP FILM 65UF 5% 500VDC RADIAL |
3,149 |
|
Datasheet |
Radial - 4 Leads | 65 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
DCP4H161209ED4MSSDDC-LINK MKP 4 120.0 F 500 VDC 30 |
7,500 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4S044709JD4JSSDCAP FILM 4.7UF 5% 1.5KVDC RADIAL |
2,055 |
|
Datasheet |
Radial - 4 Leads | 4.7 µF | ±5% | 400V | 1500V (1.5kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
DCP4H161209ED4MSC9DC-LINK MKP 4 120.0 F 500 VDC 30 |
9,777 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKS4S044709JD4JSC9CAP FILM 4.7UF 5% 1.5KVDC RADIAL |
8,720 |
|
Datasheet |
Radial - 4 Leads | 4.7 µF | ±5% | 400V | 1500V (1.5kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

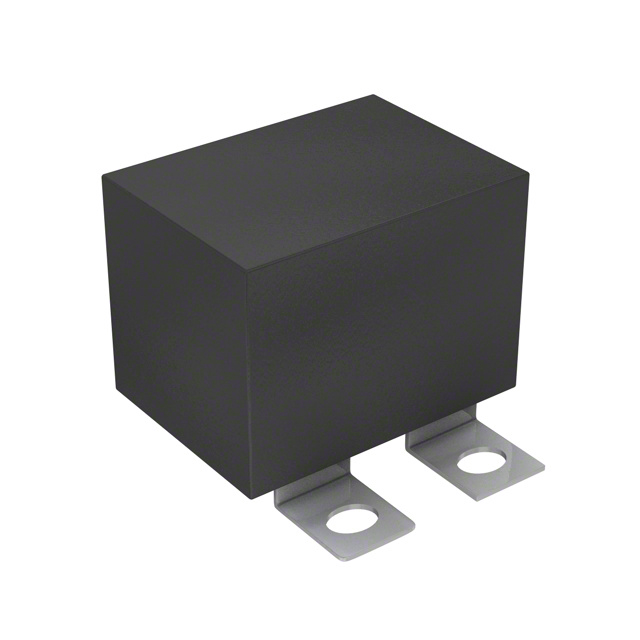

SCD335K601A3Z25-FCAP FILM 3.3UF 10% 600VDC SCREW |
4,269 |
|
Datasheet |
Rectangular Box | 3.3 µF | ±10% | 400V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.051" L x 1.500" W (52.10mm x 38.10mm) | 1.500" (38.10mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
|
|
SFC37S45K391B-FCAP FILM 45UF 10% 370VAC RADIAL |
9,185 |
|
Datasheet |
Radial, Can | 45 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.910" L x 1.910" W (73.91mm x 48.51mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
MKP1848660084Y5MKP 60UF 5% 800VDC RADIAL PITCH |
7,120 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.791" (45.50mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
MKP4D056807K00JSSDMKP 4 68.0 F 100 VDC 40X55X41.5 |
6,044 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1847H62235KY5CAP FILM 22UF 10% 700VDC RADIAL |
6,862 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
|
MKP1847C660255Y5MKP 60F 10% 250VAC PITCH 52,5 |
6,179 |
|
Datasheet |
Radial - 4 Leads | 60 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
C875CG36130AA0KCAP FILM MOTOR START RUN |
8,308 |
|
Datasheet |
Radial, Can | 130 µF | ±10% | 160V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 5.315" (135.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
