Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AF3BW4440F3FKFILM CAP AC, 4.4 UF, 10%,400 VAC |
36 |
|
Datasheet |
Radial - 4 Leads | 4.4 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 15.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
EZP-Q33475LTACAP FILM 4.7UF 5% 330VAC RADIAL |
53 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 16.2 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
BFC238330683CAP FILM 0.068UF 5% 1KVDC RADIAL |
89 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
MKP1848SE61090JP4F10F 5% TOLERANCE 900VDC PITCH: 3 |
98 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 0.965" (24.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR, Low ESL |
|
EZP-V80256MTCCAP FILM 25UF 10% 800V RADIAL |
88 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 11.6 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
R76QR356050H3JCAP FILM 0.56UF 5% 1KVDC RAD |
73 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AF1BW5150T3LKFILM, POWER, METALLIZED POLYPROP |
32 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
C4AF3BU4250A12KCAP FILM 2.5UF 10% 400VAC RADIAL |
67 |
|
Datasheet |
Radial | 2.5 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 4.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AF7BU4330A12KCAP FILM 3.3UF 10% 700VDC RADIAL |
66 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
|
BFC238320474CAP FILM 0.47UF 5% 630VDC RADIAL |
91 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
C4AQJBW5300M3JJCAP FILM 30UF 5% 700VDC RADIAL |
50 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
PSB2253100KHSDCAP FILM 0.1UF 10% 2.5KVDC RAD |
26 |
|
Datasheet |
Radial - 4 Leads | 0.1 µF | ±10% | 725V | 2500V (2.5kV) | Polypropylene (PP), Metallized | 6.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

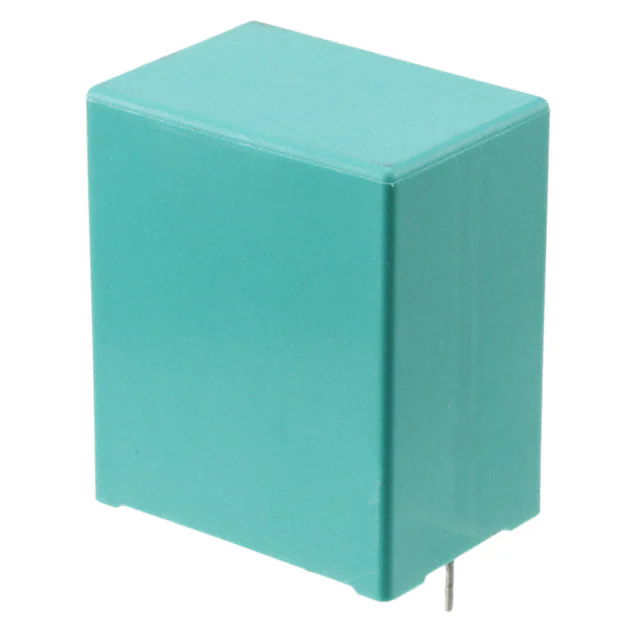

C4AEOBU4800A12JCAP FILM 8UF 5% 900VDC RADIAL |
8 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
MKPF3Y52007H00KSSDCAP FILM 20UF 10% 450VDC RADIAL |
63 |
|
Datasheet |
Radial | 20 µF | ±10% | 230V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
|
B32656S7224K563CAP FILM 0.22UF 1.25KVDC SCREW |
68 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 1.476" (37.50mm) | Snubber | - | Low ESL |
|
|
EZP-V1B605LTBCAP FILM 6UF 10% 1100V RADIAL |
78 |
|
Datasheet |
Radial | 6 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 17.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C4AQOBW5180M3JJCAP FILM 18UF 5% 900VDC RADIAL |
78 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C274AC35250SA0JCAP FILM 25UF 5% 470VAC RADIAL |
82 |
|
Datasheet |
Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.799" (96.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
R586W415050T0KCAP FILM 600VAC(X1) 1.5 UF 10% |
58 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.587" (40.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
C4AQOLW5130M36JCAP FILM 13UF 5% 900VDC RADIAL |
45 |
|
Datasheet |
Radial - 4 Leads | 13 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 6.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 0.953" (24.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
