Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R75IN4100AA40KCAP FILM 1UF 10% 250VDC RAD |
588 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-UBAF473KCAP FILM 0.047UF 10% 300VAC RADI |
384 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
QXT2J103KRPTCAP FILM 10000PF 10% 630VDC RAD |
152 |
|
Datasheet |
Radial | 10000 pF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.748" L x 0.268" W (19.00mm x 6.80mm) | 0.622" (15.80mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-FD2J153JQCAP FILM 0.015UF 5% 630VDC RAD |
784 |
|
Datasheet |
Radial | 0.015 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.220" W (12.60mm x 5.60mm) | 0.339" (8.60mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Straight 18x9.jpg)
|
ECW-FA2J394JCAP FILM 0.39UF 5% 630VDC RADIAL |
684 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.362" W (18.20mm x 9.20mm) | 0.563" (14.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
890324025043CSCAP FILM 0.56UF 10% 275VAC RAD |
390 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FD2J333JBCAP FILM 0.033UF 5% 630VDC RAD |
366 |
|
Datasheet |
Radial | 0.033 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.295" W (12.60mm x 7.50mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
890334026018CSCAP FILM 0.56UF 10% 310VAC RAD |
112 |
|
Datasheet |
Radial | 0.56 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
LDECA1390JA0N00CAP FILM 3900PF 5% 50VDC 1206 |
958 |
|
Datasheet |
1206 (3216 Metric) | 3900 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R60EI33304030KCAP FILM 0.33UF 10% 100VDC RAD |
31 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|

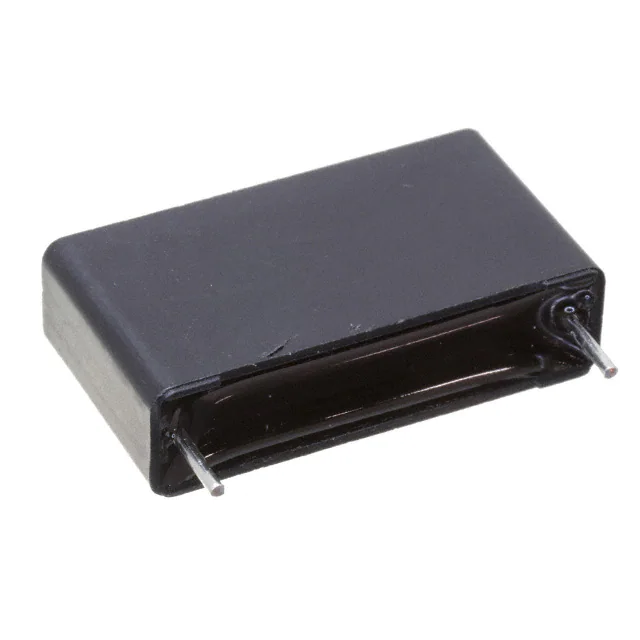

ECW-FE2J334PDCAP FILM 0.33UF 5% 630VDC RAD |
939 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FD2J123JBCAP FILM 0.012UF 5% 630VDC RAD |
910 |
|
Datasheet |
Radial | 0.012 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.205" W (12.60mm x 5.20mm) | 0.323" (8.20mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UBAF332V1CAP FILM 0.0033UF 20% 300VAC RAD |
837 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1, Y2 | - |
|
R75UN13305030JCAP FILM 3300PF 5% 2KVDC RADIAL |
618 |
|
Datasheet |
Radial | 3300 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 241.1 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32529D3224K289CAP FILM 0.22UF 10% 250VDC RAD |
461 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECQ-E4274KF3CAP FILM 0.27UF 10% 400VDC RAD |
457 |
|
Datasheet |
Radial | 0.27 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.760" (19.30mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
B32529D3224K189CAP FILM 0.22UF 10% 250VDC RAD |
266 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECW-FD2J564KCAP FILM 0.56UF 10% 630VDC RAD |
191 |
|
Datasheet |
Radial | 0.56 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.701" L x 0.331" W (17.80mm x 8.40mm) | 0.524" (13.30mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECQ-UBAF272V1CAP FILM 0.0027UF 20% 300VAC RAD |
961 |
|
Datasheet |
Radial | 2700 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1, Y2 | - |
|
MMK5684J63J03L16.5TR18CAP FILM 0.68UF 5% 63VDC RADIAL |
901 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
