Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44AMGP5200ZA0JCAP FILM 20UF 5% 850VDC RADIAL |
5 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
24FD3770A-FCAP FILM 70UF 10% 370VAC RADIAL |
10 |
|
Datasheet |
Radial, Can | 70 µF | ±10% | 370V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.625" Dia (66.68mm), Lip | 4.160" (105.66mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
|
B32373A1206J000CAP FILM 20UF 5% 2.475KVDC RAD |
10 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 1000V (1kV) | 2475V (2.475kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.689" (144.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25631B0107K900CAP FILM 100UF 10% 900V RADIAL |
24 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 900V | - | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.346" Dia (85.00mm) | 2.008" (51.00mm) | Screw Terminals | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
C44UOGT6550M84KCAP FILM 550UF 10% 900VDC RADIAL |
20 |
|
Datasheet |
Radial, Can | 550 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C44PLGR6100RASJCAP FILM 100UF 5% 700VDC RAD |
22 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 4.685" (119.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
OTBH105KNPIR-FCAP FILM 1UF 10% 1.5KVDC RADIAL |
6 |
|
Datasheet |
Radial, Can | 1 µF | ±10% | 660V | 1500V (1.5kV) | Paper, Metallized | - | -55°C ~ 85°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.250" (57.15mm) | Solder Lug | 0.810" (20.57mm) | DC Link, DC Filtering; Motor Run | - | - |
|
|
C44UHGT6900M83KCAP FILM 900UF 10% 600VDC RADIAL |
5 |
|
Datasheet |
Radial, Can | 900 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 1.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UVGT6140M84KCAP FILM 140UF 10% 1.8KVDC RAD |
15 |
|
Datasheet |
Radial, Can | 140 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
SCRN241R-FCAP FILM 1UF 10% 1.5KVPK RADIAL |
20 |
|
Datasheet |
Radial, Can | 1 µF | ±10% | 1500Vpk (1.5KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.940" (74.68mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C44UVGT6125M83KCAP FILM 125UF 10% 1.8KVDC RAD |
23 |
|
Datasheet |
Radial, Can | 125 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
944U470K122AAICAP FILM 47UF 10% 1.2KVDC RADIAL |
23 |
|
Datasheet |
Radial, Can | 47 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 0.7 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

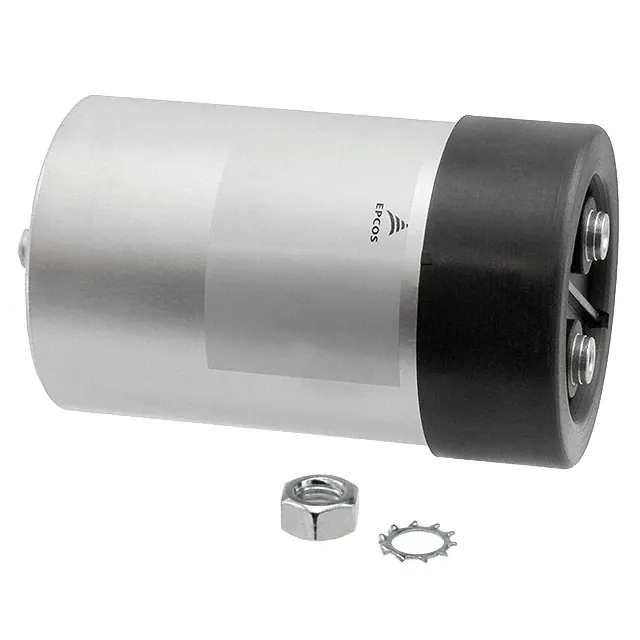

B25620C1427A101CAP FILM 420UF 1.1KVDC SCREW |
24 |
|
Datasheet |
Radial, Can | 420 µF | -15%, 0% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.630" (143.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
SCRN240R-FCAP FILM 0.5UF 10% 1.5KVPK RAD |
8 |
|
Datasheet |
Radial, Can | 0.5 µF | ±10% | 1500Vpk (1.5KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32373A6336J060CAP FILM 33UF 5% 1.65KVDC RAD |
20 |
|
Datasheet |
Radial, Can | 33 µF | ±5% | 660V | 1650V (1.65kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.311" (109.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25620B0227K881CAP FILM 220UF 10% 880VDC RADIAL |
8 |
|
Datasheet |
Radial, Can | 220 µF | ±10% | - | 880V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 3.071" (78.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44PXGR5330RASKCAP FILM 33UF 10% 2.3KVDC RADIAL |
4 |
|
Datasheet |
Radial, Can | 33 µF | ±10% | 1000V (1kV) | 2300V (2.3kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44UOGT6150A8TKCAP FILM 150UF 10% 900VDC RADIAL |
10 |
|
Datasheet |
Radial, Can | 150 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 2.992" (76.00mm) | Threaded, Female | 1.248" (31.70mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32373A6127J060CAP FILM 120UF 5% 1.65KVDC RAD |
23 |
|
Datasheet |
Radial, Can | 120 µF | ±5% | 660V | 1650V (1.65kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.594" (167.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|

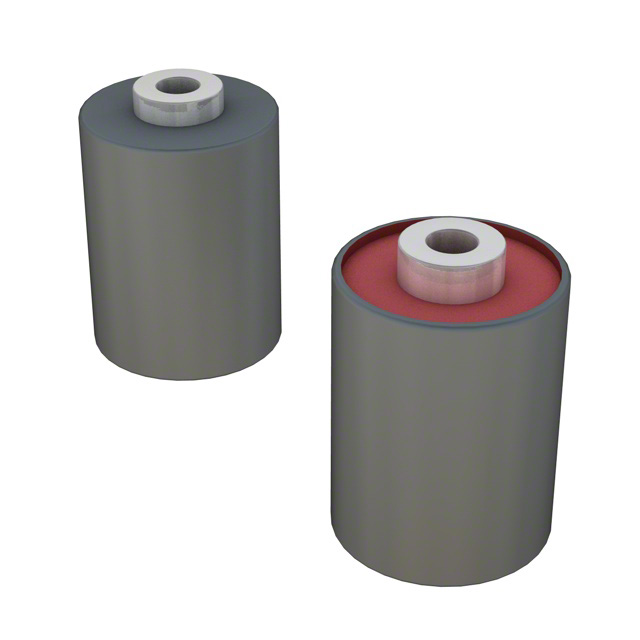

FPG86N0255J--CAP FILM 2.5UF 5% 1KVDC AXIAL |
12 |
|
Datasheet |
Axial, Can - Screw Terminals | 2.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis Mount | 2.835" Dia (72.00mm) | 2.067" (52.50mm) | Threaded, Female | - | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
