Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFDKS70J506E174DHCAP EFDKS 700VDC 50UF J 4LEADS |
2,259 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS60J506E174DHCAP EFDKS 600VDC 50UF J 4LEADS |
8,540 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS55J506E174DHCAP EFDKS 550VDC 50UF J 4LEADS |
9,926 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 550V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|

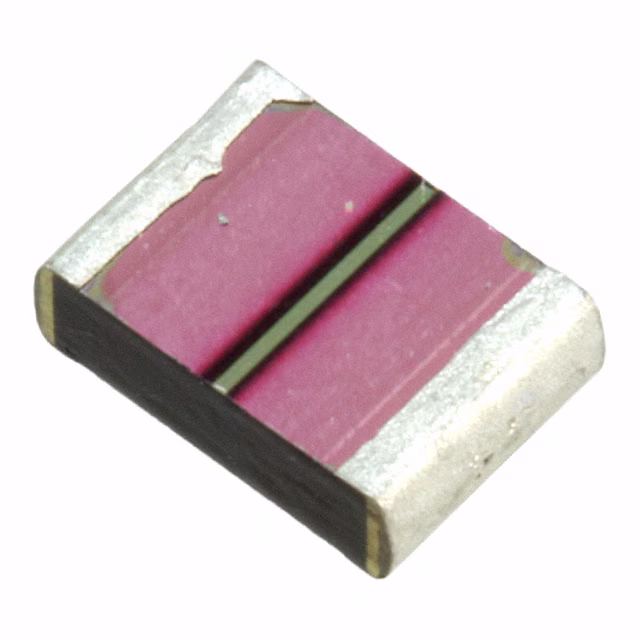

16ST475MC14532CAP FILM 4.7UF 20% 16VDC 1812 |
6,008 |
|
Datasheet |
1812 (4532 Metric) | 4.7 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.055" (1.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
BFC246816565CAP FILM 5.6UF 10% 250VDC RADIAL |
6,265 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.591" W (30.00mm x 15.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
BFC247990041CAP FILM 2UF 5% 160VDC RADIAL |
3,301 |
|
Datasheet |
Radial | 2 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
BLH156K102B094DC LINK, THB, 85/85, AEC-Q200 |
3,710 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
EFDKS70J556F024DHCAP EFDKS 700VDC 55UF J 4LEADS |
6,648 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS60J556F024DHCAP EFDKS 600VDC 55UF J 4LEADS |
4,112 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | - |
|
|
R73RW3680JE00KCAP FILM METAL RAD POLYPROP |
6,616 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1T041207I00MSSDMKP 10 1.2 F 1600 VDC 31X46X41.5 |
2,743 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX024707EB8JS00SNUBBER FKP 0.047 F 4000 VDC 17X |
7,867 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX024707ED4JSSDSNUBBER FKP 0.047 F 4000 VDC 17X |
5,108 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX024707ED2JSSDSNUBBER FKP 0.047 F 4000 VDC 17X |
7,938 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPX024707EFSJS00SNUBBER FKP 0.047 F 4000 VDC 17X |
6,367 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW026807EB8JS00SNUBBER FKP 0.068 F 3000 VDC 17X |
6,021 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW026807EFSJS00SNUBBER FKP 0.068 F 3000 VDC 17X |
9,005 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW026807ED4JSSDSNUBBER FKP 0.068 F 3000 VDC 17X |
8,964 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPW026807ED2JSSDSNUBBER FKP 0.068 F 3000 VDC 17X |
7,803 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SNFPU026807EB8JS00SNUBBER FKP 0.068 F 2000 VDC 17X |
2,125 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
