Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
930C1W1K-FCAP FILM 1UF 10% 100VDC AXIAL |
4,613 |
|
Datasheet |
Axial | 1 µF | ±10% | 70V | 100V | Polypropylene (PP), Metallized | 26 mOhms | -55°C ~ 105°C | Through Hole | 0.421" Dia x 1.000" L (10.70mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|
|
930C2W2P2K-FCAP FILM 2.2UF 10% 250VDC AXIAL |
2,607 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 105°C | Through Hole | 0.650" Dia x 1.748" L (16.50mm x 44.40mm) | - | PC Pins | - | General Purpose | - | - |
|
BFC238340823CAP FILM 0.082UF 5% 1.4KVDC RAD |
5,194 |
|
Datasheet |
Radial | 0.082 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
MKP4F051207G00MSC9MKP 4 12.0 F 250 VDC 20X39.5X41. |
8,151 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKP1847C590235K2MKP 9F 10% 230VAC PITCH 27,5 |
7,173 |
|
Datasheet |
Radial | 9 µF | ±10% | 230V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 1.240" (31.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | - |
|
C4AUQBW5150M3LJFILM, RADIAL, METALLIZED POLYPRO |
9,414 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
MKP1848S57070JP4BCAP FILM 7UF 5% 700VDC RADIAL |
7,549 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 0.709" (18.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
|
EFDKA70J356E164DHCAP EFDKA 700VDC 35UF J 4LEADS |
7,506 |
|
Datasheet |
Radial - 4 Leads | 35 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA60J356E164DHCAP EFDKA 600VDC 35UF J 4LEADS |
4,882 |
|
Datasheet |
Radial - 4 Leads | 35 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BLH156K701B044DC LINK, THB, 85/85, AEC-Q200 |
7,895 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.350" (34.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BLH805K112B054DC LINK, THB, 85/85, AEC-Q200 |
6,828 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 12.5 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BLH705K122B054DC LINK, THB, 85/85, AEC-Q200 |
8,454 |
|
Datasheet |
Radial - 4 Leads | 7 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 15.2 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
BFC247990038CAP FILM 1.6UF 5% 160VDC RADIAL |
3,788 |
|
Datasheet |
Radial | 1.6 µF | ±5% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 1.004" (25.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
|
MKP1841522404MCAP FILM 2.2UF 5% 400VDC RADIAL |
7,578 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
DCP4L052207GD4MSC9DC-LINK MKP 4 22.0 F 800 VDC 20X |
8,525 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L052207GD4KSC9DC-LINK MKP 4 22.0 F 800 VDC 20X |
9,891 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L052207GD2KSC9DC-LINK MKP 4 22.0 F 800 VDC 20X |
5,884 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DCP4L052207GD2MSC9DC-LINK MKP 4 22.0 F 800 VDC 20X |
5,744 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

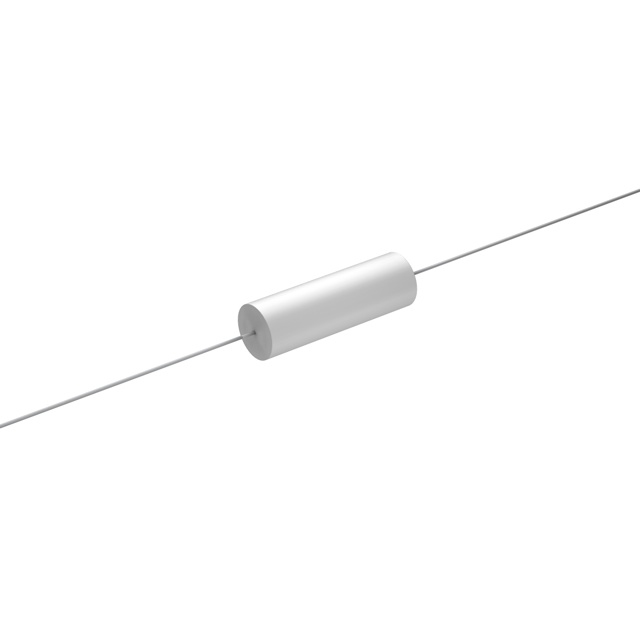

MMWA05W2K-FCAP FILM 2UF 10% 50VDC AXIAL |
9,070 |
|
Datasheet |
Axial | 2 µF | ±10% | 35V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.402" Dia x 1.248" L (10.20mm x 31.70mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC238314824CAP FILM 0.82UF 5% 400VDC RADIAL |
2,118 |
|
Datasheet |
Radial | 0.82 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
