Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F17724474000CAP FILM 0.47UF 10% 1KVDC RADIAL |
8,169 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.626" L x 0.551" W (41.30mm x 14.00mm) | 0.957" (24.30mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
B32676E8475K000CAP FILM 4.7UF 10% 875VDC RADIAL |
4,747 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32676G6685K000CAP FILM 6.8UF 10% 630VDC RADIAL |
5,229 |
|
Datasheet |
Radial | 6.8 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32676G1565K000CAP FILM 5.6UF 10% 750VDC RADIAL |
9,903 |
|
Datasheet |
Radial | 5.6 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32656J1224J000CAP FILM 0.22UF 5% 1.6KVDC RAD |
7,829 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP1840433134MCAP FILM 0.33UF 5% 1.6KVDC RAD |
7,438 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP1840433135MCAP FILM 0.33UF 10% 1.6KVDC RAD |
3,705 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

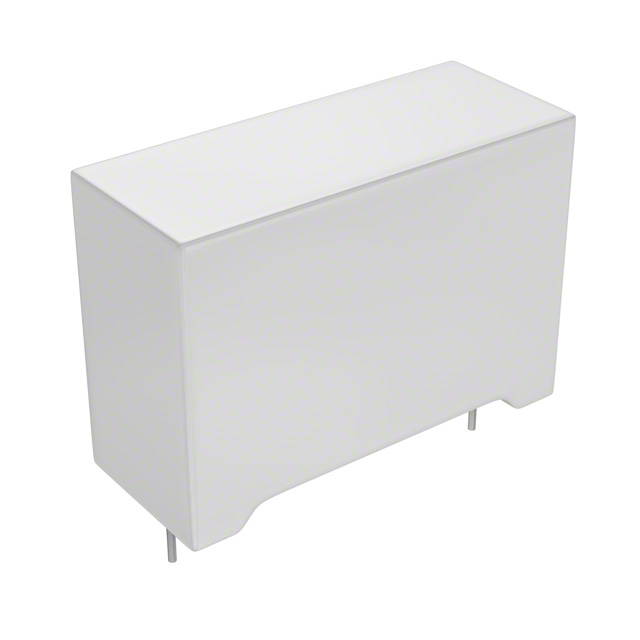

171335J160Q-FCAP FILM 3.3UF 5% 160VDC RADIAL |
2,209 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
730P105X9630CAP FILM 1UF 10% 630VDC AXIAL |
5,930 |
|
Datasheet |
Axial | 1 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 85°C | Through Hole | 0.795" Dia x 1.752" L (20.20mm x 44.50mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
|
MKP383416140JKP2T0CAP FILM 0.16UF 5% 1.4KVDC RAD |
5,023 |
|
Datasheet |
Radial | 0.16 µF | ±5% | 500V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
B32026B3824M000CAP FILM 0.82UF 20% 1.5KVDC RAD |
5,327 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
B32026B3824K000CAP FILM 0.82UF 10% 300VAC RAD |
9,568 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
MKP1G043907G00KSC9MKP 10 3.9 F 400 VDC 20X39.5X41. |
5,857 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EEC2G205HWNM27CAP FILM 2UF -5% +10% 400VAC RAD |
6,582 |
|
Datasheet |
Radial | 2 µF | -5%, +10% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 1.457" L x 0.610" W (37.00mm x 15.50mm) | 1.181" (30.00mm) | PC Pins | 1.346" (34.20mm) | Motor Run | - | - |
|
|
FKP1T031507G00JSC9FKP 1 0.15 F 1600 VDC 20X39.5X41 |
5,339 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EFACA60J105D122LHCAP FILM 1UF 5% 600VAC RAD |
4,950 |
|
Datasheet |
Radial | 1 µF | ±5% | 600V | - | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.331" (33.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
MKT1813510635GCAP FILM 1UF 10% 630VDC AXIAL |
6,733 |
|
Datasheet |
Axial | 1 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.650" Dia x 1.634" L (16.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
BFC237875473CAP FILM 0.047UF 5% 1KVDC RADIAL |
8,815 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
BFC237364684CAP FILM 0.68UF 5% 630VDC RADIAL |
5,879 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
MKP1845368204CAP FILM 0.068UF 5% 2KVDC AXIAL |
8,948 |
|
Datasheet |
Axial | 0.068 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" Dia x 1.732" L (18.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
