Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

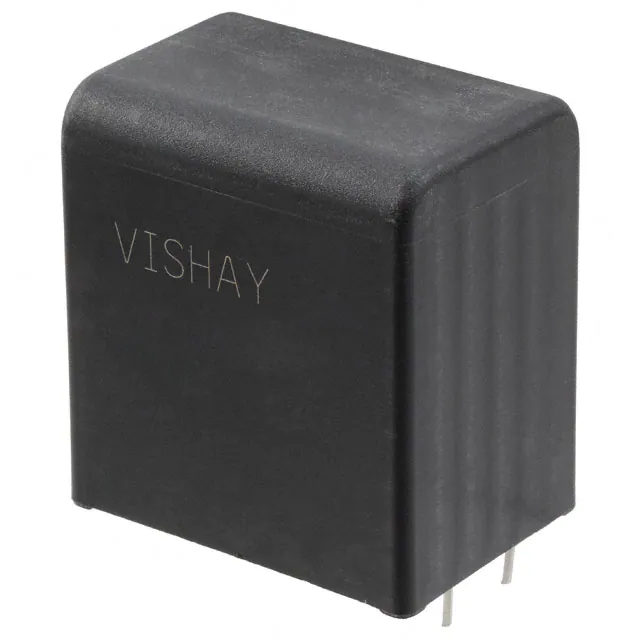

MKP1848C65050JP4CAP FILM 50UF 5% 500VDC RADIAL |
16 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 3 mOhms | 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
R60EW61005000KCAP FILM 100UF 10% 100VDC RADIAL |
79 |
|
Datasheet |
Radial | 100 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
MKP1848C65090JY5CAP FILM 50UF 5% 900VDC RADIAL |
32 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.5 mOhms | 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|

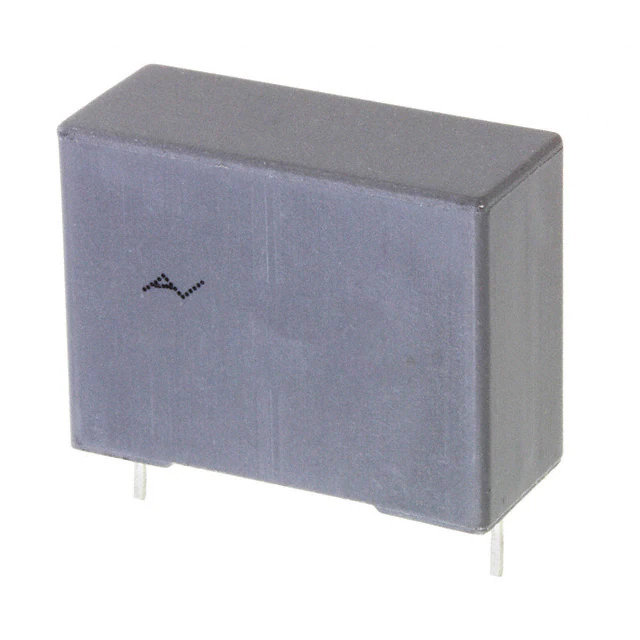

R60DW6100AA40KCAP FILM 100UF 10% 63VDC RADIAL |
3,305 |
|
Datasheet |
Radial | 100 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
DCP4G061007ID4KSSDCAP FILM 100UF 10% 400VDC RADIAL |
48 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.220" W (41.50mm x 31.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1848C68080JY5CAP FILM 80UF 5% 800VDC RADIAL |
35 |
|
Datasheet |
Radial - 4 Leads | 80 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
DCP4I061509JD4KSSDCAP FILM 150UF 10% 600VDC RAD |
63 |
|
Datasheet |
Radial - 4 Leads | 150 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 1.7 mOhms | -55°C ~ 105°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
SCD205K162A3Z25-FCAP FILM 2UF 10% 1.6KVDC SCREW |
18 |
|
Datasheet |
Rectangular Box | 2 µF | ±10% | 630V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 85°C | Chassis Mount | 2.626" L x 1.752" W (66.70mm x 44.50mm) | 1.827" (46.40mm) | Screw Terminals | 1.000" (25.40mm) | Snubber | - | - |
|
106K050CS4-FACAP FILM 10UF 10% 50VDC 10DIP |
15 |
|
Datasheet |
10-DIP | 10 µF | ±10% | - | 50V | Polymer, Metallized | 3 mOhms | -55°C ~ 125°C | Through Hole | 0.618" L x 0.500" W (15.70mm x 12.70mm) | 0.319" (8.10mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
SCRN233R-FCAP FILM 1UF 10% 1KVPK RADIAL |
19 |
|
Datasheet |
Radial, Can | 1 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
SCRN246R-FCAP FILM 0.25UF 10% 2KVPK RADIAL |
15 |
|
Datasheet |
Radial, Can | 0.25 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
944U221K801ACICAP FILM 220UF 10% 800VDC RADIAL |
21 |
|
Datasheet |
Radial, Can | 220 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
947D311K901ACGSNCAP FILM 310UF 10% 900VDC RADIAL |
3 |
|
Datasheet |
Radial, Can | 310 µF | ±10% | 230V | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 2.992" (76.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|

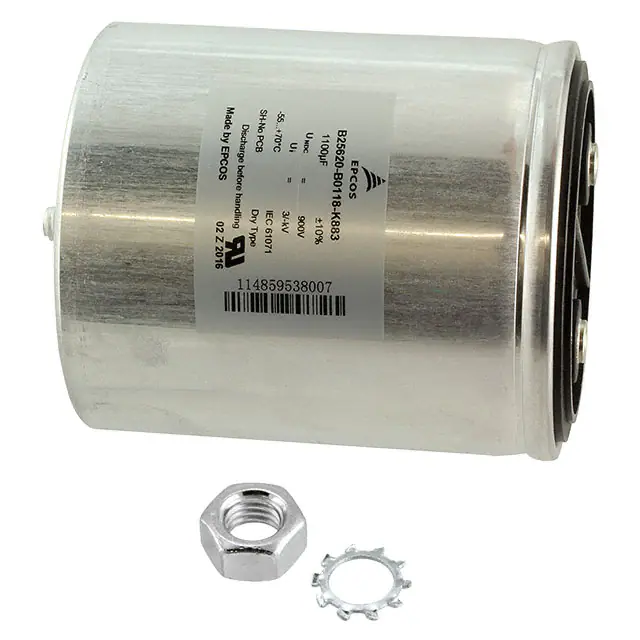

B25620B0118K883CAP FILM 1100UF 10% 900VDC RAD |
15 |
|
Datasheet |
Radial, Can | 1100 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.512" (140.00mm) | Threaded, Female | - | DC Link, DC Filtering | - | - |
|
C44USGT6950M32KC44U_M, FILM, METALLIZED POLYPRO |
10 |
|
Datasheet |
Radial, Can | 950 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 1.15 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 9.213" (234.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
947C601K801CCISCAP FILM 600UF 10% 800VDC RADIAL |
12 |
|
Datasheet |
Radial, Can | 600 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 5.787" (147.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
C44UVGT7105M34KC44U_M, FILM, METALLIZED POLYPRO |
8 |
|
Datasheet |
Radial, Can | 1050 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UUGT7180M35KC44U_M, FILM, METALLIZED POLYPRO |
7 |
|
Datasheet |
Radial, Can | 1800 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 0.78 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
B25690C2367K803360UF +-10% 2800V PEC MKP DC |
19 |
|
Datasheet |
Radial, Can | 360 µF | ±10% | - | 2800V (2.8kV) | - | 1.3 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.583" (345.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
SCRN256R-FCAP FILM 10UF 10% 2KVPK RADIAL |
24 |
|
Datasheet |
Radial, Can | 10 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 4.560" L x 3.750" W (115.82mm x 95.25mm), Lip | 5.810" (147.57mm) | Threaded, Male | 2.000" (50.80mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
