Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
942C16S68KCAP FILM 0.068UF 1.6KVDC AXIAL |
4,994 |
|
Datasheet |
Axial | 0.068 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.339" L (19.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
BFC237354474CAP FILM 0.47UF 5% 400VDC RADIAL |
6,532 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
|
MKP383320200JI02W0CAP FILM 0.02UF 5% 2KVDC RADIAL |
7,677 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
|
BFC237528752CAP FILM 7500PF 5% 1KVDC RADIAL |
8,789 |
|
Datasheet |
Radial | 7500 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP4D044706D00JSC9MKP 4 4.7 F 100 VDC 13X24X31.5 P |
2,918 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BFC2373FE155MICAP FILM 1.5UF 10% 400VDC RADIAL |
2,220 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 100V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
|
MKP1845415165CAP FILM 0.15UF 10% 160VDC AXIAL |
8,349 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.315" Dia x 0.866" L (8.00mm x 22.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
F161YR154K400VCAP FILM SMD PET |
9,084 |
|
Datasheet |
Nonstandard SMD | 0.15 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
LDEIG3680MA0N00CAP FILM SMD PEN |
2,373 |
|
Datasheet |
5040 (127102 Metric) | 0.68 µF | ±20% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.512" L x 0.409" W (13.00mm x 10.40mm) | 0.205" (5.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
MKS4D051006A00KSSDCAP FILM 10UF 10% 100VDC RADIAL |
6,615 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

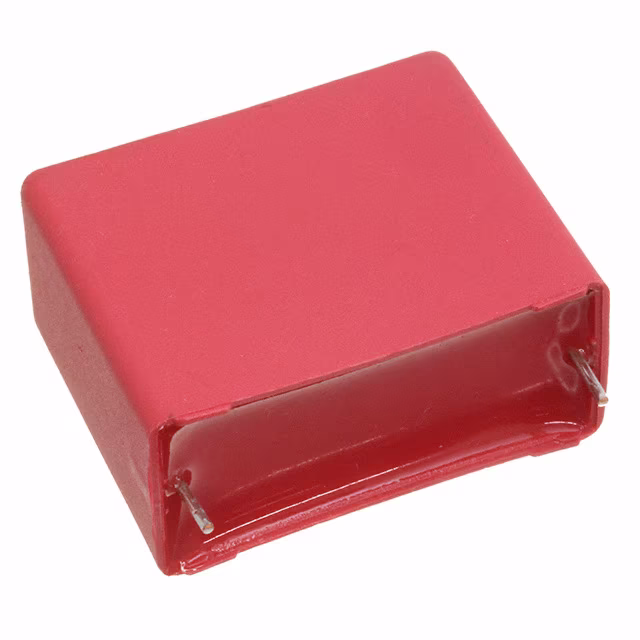

MKP4J041506F00MSC9CAP FILM 1.5UF 20% 630VDC RAD |
7,955 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 280V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
|
MKS4J041506F00MSC9CAP FILM 1.5UF 20% 630VDC RADIAL |
9,931 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
F1778515M2KLB0CAP FILM 1.5UF 20% 630VDC RADIAL |
7,791 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
P278HL472M480ACAP FILM 4700PF 20% 480VAC RAD |
7,162 |
|
Datasheet |
Radial | 4700 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X1 | - |
|
SMDIC02100KA00MP00CAP FILM 10000PF 20% 63VDC 1812 |
2,439 |
|
Datasheet |
1812 (4532 Metric) | 10000 pF | ±20% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
BFC236852564CAP FILM 0.56UF 5% 400VDC RADIAL |
4,707 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.295" W (30.00mm x 7.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC236856564CAP FILM 0.56UF 5% 400VDC RADIAL |
6,221 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.295" W (30.00mm x 7.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC236857564CAP FILM 0.56UF 5% 400VDC RADIAL |
6,983 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.295" W (30.00mm x 7.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | Long Life |
|
|
BFC236862274CAP FILM 0.27UF 5% 630VDC RADIAL |
6,252 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
BFC236866274CAP FILM 0.27UF 5% 630VDC RADIAL |
8,311 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.181" L x 0.394" W (30.00mm x 10.00mm) | 0.906" (23.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
