Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZP-V1A805MTBCAP FILM 8UF 10% 1000V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 13.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
C878AF24800AA1JCAP FILM MOTOR START RUN |
429 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
|
EZP-V80146MTACAP FILM 14UF 10% 800V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 14 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.654" (42.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|

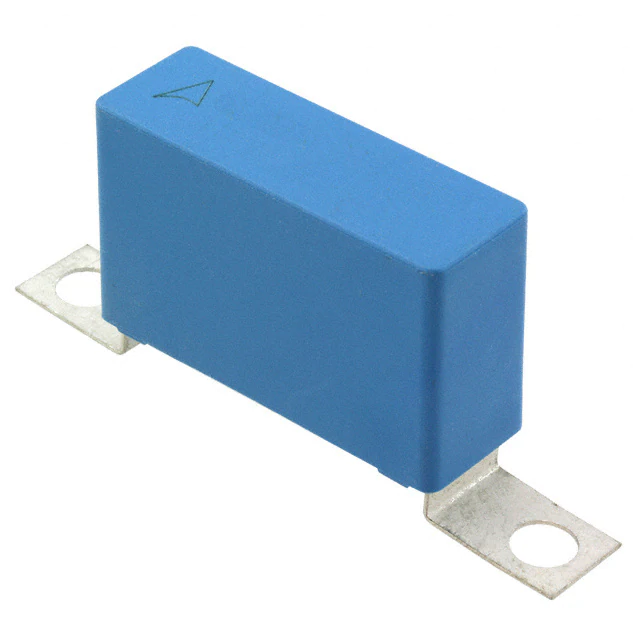

B32656S0474K563CAP FILM 0.47UF 10% 1KVDC SCREW |
171 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.551" W (42.00mm x 14.00mm) | 0.984" (25.00mm) | Screw Terminals | 2.244" (57.00mm) | Snubber | AEC-Q200 | Low ESL |
|
PHE844RR7150MR06L2CAP FILM 1.5UF 20% 1KVDC RAD |
157 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
C4AUOBW5240M3LJFILM, RADIAL, METALLIZED POLYPRO |
108 |
|
Datasheet |
Radial - 4 Leads | 24 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
EZP-V80136MTUCAP FILM 13UF 10% 800V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 13 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.654" (42.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
MKT1813615014CAP FILM 15UF 5% 100VDC AXIAL |
239 |
|
Datasheet |
Axial | 15 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.807" Dia x 1.240" L (20.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
EZP-V1A905MTTCAP FILM 9UF 10% 1000V RADIAL |
200 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
MXT156K305N40CAP FILM 15UF 10% 630VDC RADIAL |
207 |
|
Datasheet |
Radial | 15 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
EZP-V70206MTBCAP FILM 20UF 10% 700V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.024" W (41.00mm x 26.00mm) | 1.634" (41.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
EFDKA90K186E154BHCAP FILM 18UF 10% 900VDC RAD |
228 |
|
Datasheet |
Radial - 4 Leads | 18 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 8.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
930C4P82K-FCAP FILM 0.82UF 10% 400VDC AXIAL |
173 |
|
Datasheet |
Axial | 0.82 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.598" Dia x 1.260" L (15.20mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
EFDKS1AK186E164DHCAP FILM 18UF 10% 1000VDC RAD |
176 |
|
Datasheet |
Radial | 18 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | - |
|
C4AQHLW5300P38KCAP FILM 30UF 10% 600VDC RADIAL |
144 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
EZP-V70186LTACAP FILM 18UF 10% 700V RADIAL |
150 |
|
Datasheet |
Radial | 18 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.866" W (31.00mm x 22.00mm) | 2.146" (54.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
EFDKA45K306E134BHCAP FILM 30UF 10% 450VDC RAD |
105 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 7.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
B32776P7126K000CAP FILM 12UF 10% 700VDC RADIAL |
639 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
EZP-V70186LTUCAP FILM 18UF 10% 700V RADIAL |
150 |
|
Datasheet |
Radial | 18 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.866" W (31.00mm x 22.00mm) | 2.146" (54.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C276CCF4600LG0JCAP FILM 6UF 5% 470VAC RADIAL |
640 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.382" (60.50mm) | Wire Leads | - | Motor Run | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
