Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC242045102CAP FILM 5100PF 2% 630VDC RADIAL |
3,739 |
|
Datasheet |
Radial | 5100 pF | ±2% | 160V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
BFC242045602CAP FILM 5600PF 2% 630VDC RADIAL |
3,627 |
|
Datasheet |
Radial | 5600 pF | ±2% | 160V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
BFC241811103CAP FILM 0.011UF 2% 250VDC RAD |
4,919 |
|
Datasheet |
Radial | 0.011 µF | ±2% | 25V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
BFC241811203CAP FILM 0.012UF 2% 250VDC RAD |
3,713 |
|
Datasheet |
Radial | 0.012 µF | ±2% | 25V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
|
BFC241811303CAP FILM 0.013UF 2% 250VDC RAD |
9,809 |
|
Datasheet |
Radial | 0.013 µF | ±2% | 25V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|

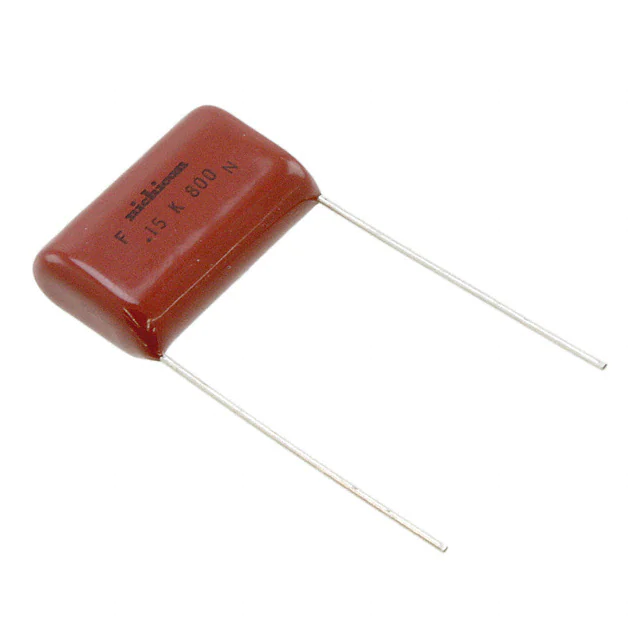

QXP2K154KRPTCAP FILM 0.15UF 10% 800VDC RAD |
3,908 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 250V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.378" W (26.50mm x 9.60mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
QXP2E684JRP7FPCAP FILM 0.68UF 5% 250VDC RADIAL |
4,114 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827" L x 0.406" W (21.00mm x 10.30mm) | 0.886" (22.50mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
QXP2E684JRPTCAP FILM 0.68UF 5% 250VDC RADIAL |
6,844 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827" L x 0.406" W (21.00mm x 10.30mm) | 0.748" (19.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
QXP2K154KRP7FTCAP FILM 0.15UF 10% 800VDC RAD |
3,880 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 250V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.378" W (26.50mm x 9.60mm) | 0.945" (24.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
CB162D0225KBCCAP FILM |
4,866 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
150155K100IECAP FILM 1.5UF 10% 100VDC AXIAL |
2,693 |
|
Datasheet |
Axial | 1.5 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" Dia x 1.102" L (10.00mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
EFPLS63J334C052LHCAP FILM 0.33UF 5% 630VDC RAD |
4,869 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1GJ104C052LHCAP FILM 0.1UF 5% 1600VDC RAD |
6,264 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1DJ124C052LHCAP FILM 0.12UF 5% 1300VDC RAD |
6,715 |
|
Datasheet |
Radial | 0.12 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 12.5 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1AJ124C052LHCAP FILM 0.12UF 5% 1000VDC RAD |
4,782 |
|
Datasheet |
Radial | 0.12 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12.5 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS63J274C052LHCAP FILM 0.27UF 5% 630VDC RAD |
9,766 |
|
Datasheet |
Radial | 0.27 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS2AJ563C052LHCAP FILM 0.056UF 5% 2000VDC RAD |
8,487 |
|
Datasheet |
Radial | 0.056 µF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC246805185CAP FILM 1.8UF 5% 100VDC RADIAL |
3,134 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.256" W (17.50mm x 6.50mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
MKT1813415634RCAP FILM 0.15UF 5% 630VDC AXIAL |
4,212 |
|
Datasheet |
Axial | 0.15 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.394" Dia x 1.043" L (10.00mm x 26.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKT1813422636RCAP FILM 0.22UF 20% 630VDC AXIAL |
9,657 |
|
Datasheet |
Axial | 0.22 µF | ±20% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.453" Dia x 1.043" L (11.50mm x 26.50mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
