Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
930C4P22K-FCAP FILM 0.22UF 10% 400VDC AXIAL |
150 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.386" Dia x 1.000" L (9.80mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|
EZP-V1A605LTTCAP FILM 6UF 10% 1000V RADIAL |
300 |
|
Datasheet |
Radial | 6 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 17.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
EFPLA1AJ334D082LHCAP FILM 0.33UF 5% 1000VDC RAD |
660 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA1DJ334D082LHCAP FILM 0.33UF 5% 1300VDC RAD |
660 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EZP-V70805LTTCAP FILM 8UF 10% 700V RADIAL |
300 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 17.1 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
EZP-V70805LTBCAP FILM 8UF 10% 700V RADIAL |
300 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 17.1 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
C276CCB5140AF0JCAP FILM 14UF 5% 470VAC RADIAL |
117 |
|
Datasheet |
Radial, Can | 14 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.815" (71.50mm) | Wire Leads | - | Motor Run | - | - |
|

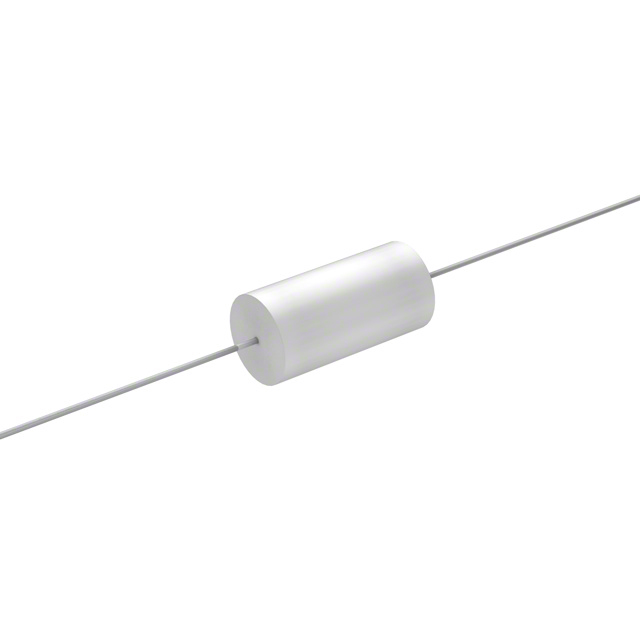

MMWA2P33K-FCAP FILM 0.33UF 10% 250VDC AXIAL |
496 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.366" Dia x 0.728" L (9.30mm x 18.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
EZP-V70905LTACAP FILM 9UF 10% 700V RADIAL |
200 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 12.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
EZP-V1A905MTBCAP FILM 9UF 10% 1000V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
EFDKS45K226D132LHCAP FILM 22UF 10% 450VDC RAD |
274 |
|
Datasheet |
Radial | 22 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
DPFF8S33J-FCAP FILM 0.033UF 5% 800VDC RAD |
2,100 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.299" L x 0.701" W (33.00mm x 17.80mm) | 0.701" (17.80mm) | PC Pins | 0.720" (18.30mm) | High Pulse, DV/DT | - | - |
|
C4AQLLW5120M34KCAP FILM 12UF 10% 500VDC RADIAL |
341 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 10.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
MYH824K300H30CAP FILM 0.82UF 10% 1.5KVDC RAD |
128 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
MKT1813547255CAP FILM 4.7UF 10% 250VDC AXIAL |
974 |
|
Datasheet |
Axial | 4.7 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.634" L (15.50mm x 41.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
EFDKA1CK805E154BHCAP FILM 8UF 10% 1200VDC RAD |
228 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EZP-V80146MTUCAP FILM 14UF 10% 800V RADIAL |
150 |
|
Datasheet |
Radial - 4 Leads | 14 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.654" (42.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
EZP-V70905MTACAP FILM 9UF 10% 700V RADIAL |
199 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 12.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
B32524R3226K000CAP FILM 22UF 10% 250VDC RADIAL |
712 |
|
Datasheet |
Radial | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
EZP-V70905LTBCAP FILM 9UF 10% 700V RADIAL |
300 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 15.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
