Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC233914105CAP FILM 1UF 10% 630VDC RADIAL |
189 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
EFDKA1BK505D132LHCAP FILM 5UF 10% 1100VDC RAD |
140 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA1CK505D132LHCAP FILM 5UF 10% 1200VDC RAD |
134 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10.5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA60K106E072LHCAP FILM 10UF 10% 600VDC RAD |
126 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.669" W (42.00mm x 17.00mm) | 1.220" (31.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EZP-V1A605LTBCAP FILM 6UF 10% 1000V RADIAL |
300 |
|
Datasheet |
Radial | 6 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 17.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.669" W (41.00mm x 17.00mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
890724427010CSWCAP-FTDB DC-LINK CAPACITOR (MKP |
166 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.496" (38.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
FE37F68A0156KAFILM CAPACITORS 700V 15UF 10% ES |
112 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
C878AF24100AA5JCAP FILM MOTOR START RUN |
484 |
|
Datasheet |
Radial, Can | 1 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | Quick Connect, Disconnect | 0.394" (10.00mm) | Motor Run | - | - |
|
C878BF34750SA0JCAP FILM 7.5UF 5% 450VAC RADIAL |
415 |
|
Datasheet |
Radial, Can | 7.5 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|

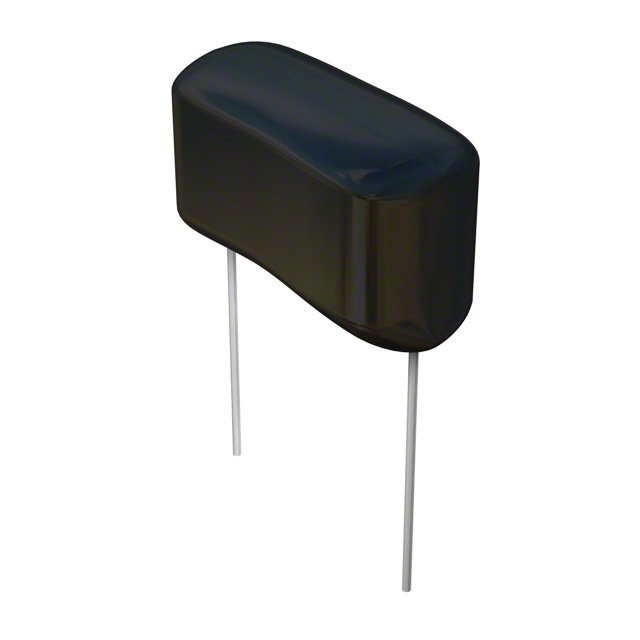

DMT1W1K-FCAP FILM 1UF 10% 100VDC RADIAL |
890 |
|
Datasheet |
Radial | 1 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.331" L x 0.520" W (33.80mm x 13.20mm) | 0.824" (20.92mm) | PC Pins | 1.169" (29.70mm) | General Purpose | - | - |
|
|
EFDKA80K106D132LHCAP FILM 10UF 10% 800VDC RAD |
129 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.5 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKA60K126E072LHCAP FILM 12UF 10% 600VDC RAD |
126 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.669" W (42.00mm x 17.00mm) | 1.220" (31.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKS90K905D134BHCAP FILM 9UF 10% 900VDC RAD |
351 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKS1BK605D134BHCAP FILM 6UF 10% 1100VDC RAD |
349 |
|
Datasheet |
Radial | 6 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
EFDKA80K905E072LHCAP FILM 9UF 10% 800VDC RAD |
285 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 21.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.669" W (42.00mm x 17.00mm) | 1.220" (31.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
EFDKS80K126D132LHCAP FILM 12UF 10% 800VDC RAD |
280 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
B32656A7224J000CAP FILM 0.22UF 5% 1.25KVDC RAD |
3,100 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.551" W (42.00mm x 14.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLS1DJ334D082LHCAP FILM 0.33UF 5% 1300VDC RAD |
660 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFPLS1AJ334D082LHCAP FILM 0.33UF 5% 1000VDC RAD |
660 |
|
Datasheet |
Radial | 0.33 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EFDKS90K106D132LHCAP FILM 10UF 10% 900VDC RAD |
140 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
