Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP385E46840KKP2T0CAP FILM 0.68UF 10% 400VDC RAD |
6,370 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | 15 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.831" (21.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E46840KKI2B0CAP FILM 0.68UF 10% 400VDC RAD |
8,035 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | 15 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.831" (21.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
BFC2373GF331MICAP FILM 330PF 5% 630VDC RADIAL |
3,067 |
|
Datasheet |
Radial | 330 pF | ±5% | 160V | 630V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | General Purpose | - | Long Life |
|
|
MKP385411085JIM2T0CAP FILM 0.11UF 5% 850VDC RADIAL |
5,231 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKP385411085JIP2T0CAP FILM 0.11UF 5% 850VDC RADIAL |
6,953 |
|
Datasheet |
Radial | 0.11 µF | ±5% | 300V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
FKP3D031504J00JSSDFKP 3 0.15 F 100 VDC 9X16X18 PCM |
9,071 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ECW-F2W185RKACAP FILM 1.8UF 10% 450VDC RADIAL |
6,500 |
|
Datasheet |
Radial | 1.8 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.457" W (18.80mm x 11.60mm) | 0.717" (18.20mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
R75IN4180DQ40JCAP FILM AUTO POLYPROP RAD |
3,285 |
|
Datasheet |
Radial | 1.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 8.8 mOhms | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP383336100JC02R0CAP FILM 0.036UF 5% 1KVDC RADIAL |
2,924 |
|
Datasheet |
Radial | 0.036 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP383343100JFI2B0CAP FILM 0.43UF 5% 1KVDC RADIAL |
2,767 |
|
Datasheet |
Radial | 0.043 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
F461BY225M160L2.20UF 160V |
3,066 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
|
F461BY225M160R2.20UF 160V |
5,026 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|

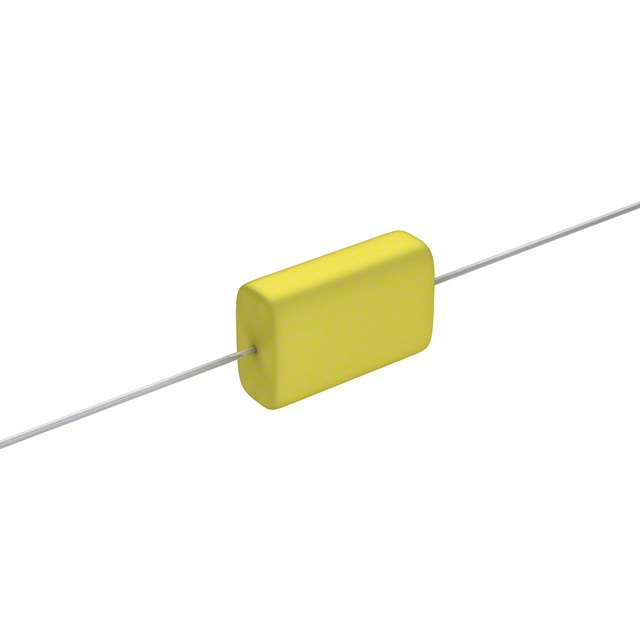

MMP1P33K-FCAP FILM 0.33UF 10% 100VDC AXIAL |
5,934 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.433" W, 0.236" T x 0.669" L (11.00mm, 6.00mm x 17.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
MKP1839182632CAP FILM 820PF 2% 630VDC AXIAL |
4,593 |
|
Datasheet |
Axial | 820 pF | ±2% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
MKP1839282401CAP FILM 8200PF 1% 400VDC AXIAL |
3,164 |
|
Datasheet |
Axial | 8200 pF | ±1% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
B32562J6155J000CAP FILM 1.5UF 5% 400VDC 2DIP |
8,041 |
|
Datasheet |
2-DIP | 1.5 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
R46KN368051M2KCAP FILM SAFETY/EMI SUPP RAD |
4,715 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R49AI24705101MCAP FILM SAFETY/EMI SUPP RAD |
5,451 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
EFDKS80J405D062LHCAP EFDKS 800VDC 4UF J 2LEADS |
3,111 |
|
Datasheet |
Radial | 4 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 22 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.996" (25.30mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
MKP4D042205I00MSSDMKP 4 2.2 F 100 VDC 11X21X26.5 P |
5,201 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
