Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
890283327008CSCAP FILM 2.2UF 5% 400VDC RAD |
150 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 400V | Polypropylene (PP), Metallized | 20.15 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 1.004" (25.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
BFC237545121CAP FILM 120PF 3.5% 2KVDC RADIAL |
1,990 |
|
Datasheet |
Radial | 120 pF | ±3.5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.571" (14.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
MYH104K300G12CAP FILM 0.1UF 10% 1.5KVDC RAD |
938 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.701" (17.80mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
LDECD4100MA0N00CAP FILM 1UF 20% 50VDC 2220 |
3,368 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±20% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
B32923M3155M0001.5UF 20% 305VAC MKP SUPPRESSI |
2,150 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
R46KR4100JNM1KNO SPEC SHEET |
1,095 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
DMT2S1K-FCAP FILM 10000PF 10% 250VDC RAD |
496 |
|
Datasheet |
Radial | 10000 pF | ±10% | 125V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.488" (12.40mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
|
MKP1848E51012JK2MKP 1F 5% 1200VDC PITCH 27,5MM 2 |
260 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FCP1210C104G-G3CAP FILM 0.1UF 2% 16VDC 1210 |
936 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±2% | - | 16V | Polyphenylene Sulfide (PPS) | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.099" (2.51mm) | Solder Pads | - | High Frequency, Switching | - | - |
|
|
R60MN4100AA30JCAP FILM AUTOMOTIVE |
832 |
|
Datasheet |
Radial | 1 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
PWS2101470KDCAP FILM 4700PF 10% 1KVDC AXIAL |
488 |
|
Datasheet |
Axial | 4700 pF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.315" Dia x 0.748" L (8.00mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
MKT1813447064CAP FILM 0.47UF 5% 63VDC AXIAL |
990 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.276" Dia x 0.551" L (7.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
EFPLA63J273B022LHCAP FILM 0.027UF 5% 630VDC RAD |
867 |
|
Datasheet |
Radial | 0.027 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 25 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP1848E55070JK2MKP 5F 5% 700VDC PITCH 27,5MM 2 |
200 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MKT1813347255GCAP FILM 0.047UF 10% 250VDC AXL |
7,000 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
R60PR3470AA40KCAP FILM AUTOMOTIVE |
816 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
F861BZ105M310CCAP FILM POLYPROP RAD X2 |
266 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
168154J63C-FCAP FILM 0.15UF 5% 63VDC RADIAL |
4,986 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|

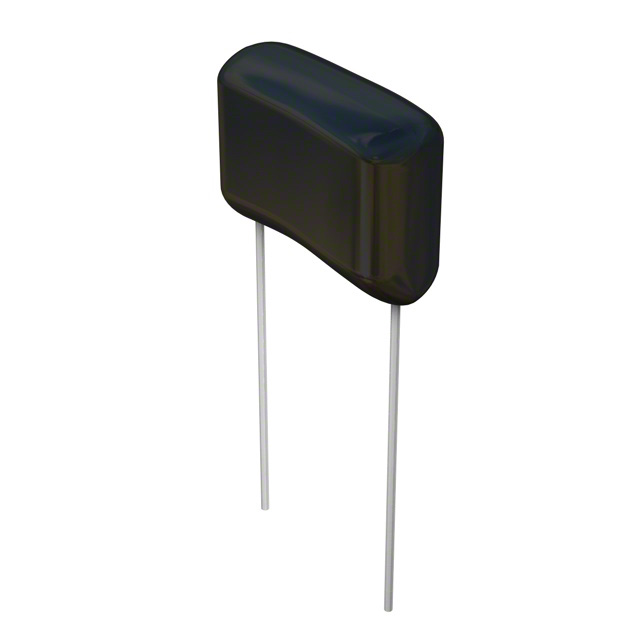

DMM2P22K-FCAP FILM 0.22UF 10% 250VDC RAD |
2,000 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
MKT1813468065CAP FILM 0.68UF 10% 63VDC AXIAL |
988 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.256" Dia x 0.748" L (6.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
