Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFPLA63J223B012LHCAP FILM 0.022UF 5% 630VDC RAD |
2,439 |
|
Datasheet |
Radial | 0.022 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 30 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA1DJ103B012LHCAP FILM 0.01UF 5% 1300VDC RAD |
9,860 |
|
Datasheet |
Radial | 10000 pF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 65 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA2AJ272B012LHCAP FILM 0.0027UF 5% 2000VDC RAD |
7,981 |
|
Datasheet |
Radial | 2700 pF | ±5% | - | 2000V (2kV) | Polypropylene (PP), Metallized | 240 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA63J203B012LHCAP FILM 0.02UF 5% 630VDC RAD |
8,327 |
|
Datasheet |
Radial | 0.02 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 32 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA63J123B012LHCAP FILM 0.012UF 5% 630VDC RAD |
7,692 |
|
Datasheet |
Radial | 0.012 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | 52 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
EFPLA1GJ682B012LHCAP FILM 0.0068UF 5% 1600VDC RAD |
3,482 |
|
Datasheet |
Radial | 6800 pF | ±5% | - | 1600V (1.6kV) | Polypropylene (PP), Metallized | 100 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R60IN4100CK30KCAP FILM AUTOMOTIVE |
8,331 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
MKP385E34785KII2B0CAP FILM 0.047UF 10% 850VDC RAD |
5,213 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 850V | Polypropylene (PP), Metallized | 67 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.654" (16.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E41263JII2B0CAP FILM 0.12UF 5% 630VDC RAD |
7,069 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 220V | 630V | Polypropylene (PP), Metallized | 39 mOhms | -40°C ~ 105°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
MKP385E35610KII2B0CAP FILM 0.056UF 10% 1KVDC RAD |
9,709 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | 66 mOhms | -40°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.654" (16.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
CB037D0224JBCCAP FILM |
9,339 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F872BO683K480ZCAP FILM POLYPROP RAD X1 |
7,567 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
B32521C0225J289CAP FILM 2.2UF 5% 63VDC RADIAL |
7,821 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
|
FKP4G026805D00JSSDFKP 4 0.068 F 400 VDC 7X16.5X26. |
6,403 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Series Style Q 18x12.jpg)
|
ECW-FA2J684JQCAP FILM 0.68UF 5% 630VDC RADIAL |
6,551 |
|
Datasheet |
Radial | 0.68 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 0.870" (22.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |

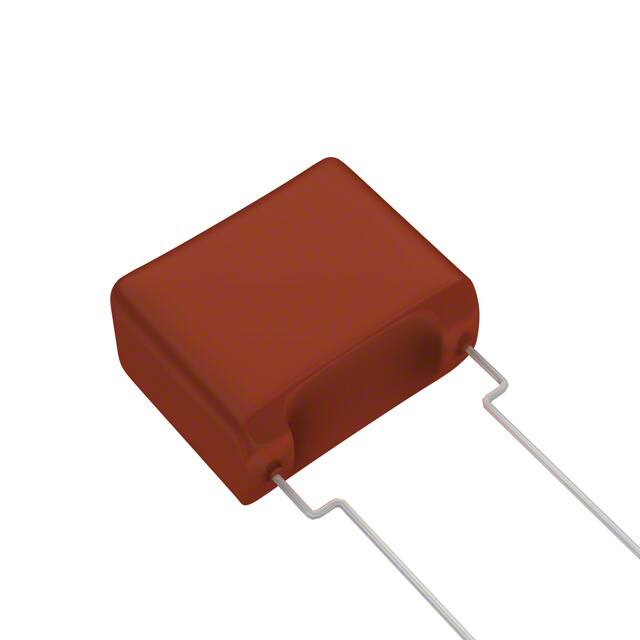

 Series Style B 18x12.jpg)
|
ECW-FA2J684JBCAP FILM 0.68UF 5% 630VDC RADIAL |
3,545 |
|
Datasheet |
Radial | 0.68 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 0.870" (22.10mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
R76II3470DQ30KCAP FILM AUTO POLYPROP RAD |
4,076 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 180V | 250V | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
FKP4O123305D00JB00FKP 4 0.033 F 1000 VDC 7X16.5X26 |
7,746 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP4O123305D00JD00FKP 4 0.033 F 1000 VDC 7X16.5X26 |
8,502 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F881BO473M300ACAP FILM POLYPROP RAD Y2 |
9,271 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
