Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-FE2J105Q5CAP FILM 1UF 10% 630VDC RADIAL |
349 |
|
Datasheet |
Radial | 1 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.768" (19.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECH-U1C563JB5CAP FILM 0.056UF 5% 16VDC 1210 |
19,312 |
|
Datasheet |
1210 (3225 Metric) | 0.056 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U1153KC9CAP FILM 0.015UF 10% 100VDC 1913 |
6,854 |
|
Datasheet |
1913 (4833 Metric) | 0.015 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U4822V17CAP FILM 8200PF 5% 400VDC 1913 |
6,415 |
|
Datasheet |
1913 (4833 Metric) | 8200 pF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
ECW-U1123KC9CAP FILM 0.012UF 10% 100VDC 1913 |
3,551 |
|
Datasheet |
1913 (4833 Metric) | 0.012 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U1223KC9CAP FILM 0.022UF 10% 100VDC 1913 |
2,557 |
|
Datasheet |
1913 (4833 Metric) | 0.022 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U1273KC9CAP FILM 0.027UF 10% 100VDC 1913 |
1,809 |
|
Datasheet |
1913 (4833 Metric) | 0.027 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
SMR5472J100J01L16.5CBULKCAP FILM 4700PF 5% 100VDC RADIAL |
1,582 |
|
Datasheet |
Radial | 4700 pF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
R60II3330AA30KCAP FILM 0.33UF 10% 250VDC RAD |
997 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
ECW-U1393KC9CAP FILM 0.039UF 10% 100VDC 1913 |
8,335 |
|
Datasheet |
1913 (4833 Metric) | 0.039 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
FKP1J021504F00JSSDCAP FILM 0.015UF 5% 630VDC RAD |
4,076 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F339X251030MIM2T0CAP FILM 1UF 20% 630VDC RADIAL |
3,566 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.492" W (26.50mm x 12.50mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
R60PI3100AA30JCAP FILM 0.1UF 5% 630VDC RAD |
1,090 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R463N368000M2MCAP FILM 0.68UF 20% 630VDC RAD |
380 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

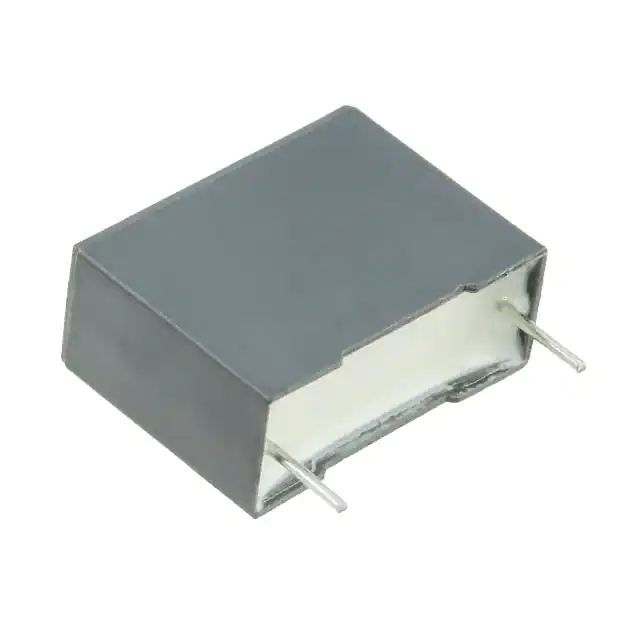

R46KI3220JPM2MCAP FILM 0.22UF 20% 560VDC RAD |
138 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32652A4224K289CAP FILM 0.22UF 10% 400VDC RAD |
3,106 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
BFC236855222CAP FILM 2200PF 10% 400VDC RAD |
1,726 |
|
Datasheet |
Radial | 2200 pF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.512" (13.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
|
BFC236845683CAP FILM 0.068UF 10% 250VDC RAD |
1,604 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.181" W (12.50mm x 4.60mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | Long Life |
|
B32682A6472K189CAP FILM 4700PF 10% 630VDC RAD |
671 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
R76MI315050H7JCAP FILM 0.15UF 5% 400VDC RAD |
495 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
