Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-UBAF103VGCAP FILM 0.01UF 20% 300VAC RADIA |
9,753 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.197" W (18.50mm x 5.00mm) | 0.591" (15.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1 | - |
|
F872AK562M480LCAP FILM POLYPROP RAD X1 |
4,599 |
|
Datasheet |
Radial | 5600 pF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X1 | - |
|
|
R413F1470JEM1KCAP FILM 4700PF 10% 1KVDC RADIAL |
7,739 |
|
Datasheet |
Radial | 4700 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
R74NI2180JE00JCAP FILM METAL RAD POLYPROP |
6,899 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 400V | 1300V (1.3kV) | Polypropylene (PP), Metallized | 35 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R74LI2220AA00JCAP FILM METAL RAD POLYPROP |
9,279 |
|
Datasheet |
Radial | 0.022 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 29 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75MI2680JB30JCAP FILM AUTO POLYPROP RAD |
7,696 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 23.4 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MD2120SE40JCAP FILM AUTO POLYPROP RAD |
8,646 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 53 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76MD2120JE40JCAP FILM AUTO POLYPROP RAD |
2,142 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 53 mOhms | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
FKS3G016803A00KSSDFKS 3 6800 PF 400 VDC 3X9X13 PCM |
6,773 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FKP2F021501L00KSC9FKP 2 0.015 F 250 VDC 8.5X10X7.2 |
9,441 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
F871BB392J330A3900PF 330V |
8,885 |
|
- |
Radial | 3900 pF | ±5% | 330V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F872BB332K480ZCAP FILM POLYPROP RAD X1 |
6,103 |
|
Datasheet |
Radial | 3300 pF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F881BB332K300ZCAP FILM POLYPROP RAD Y2 |
9,858 |
|
Datasheet |
Radial | 3300 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
|
F871BB332K330ZCAP FILM POLYPROP RAD X1 |
4,984 |
|
Datasheet |
Radial | 3300 pF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
F861BB393K310ZCAP FILM POLYPROP RAD X2 |
9,344 |
|
Datasheet |
Radial | 0.039 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
F861BB124M310ZCAP FILM POLYPROP RAD X2 |
5,770 |
|
Datasheet |
Radial | 0.12 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

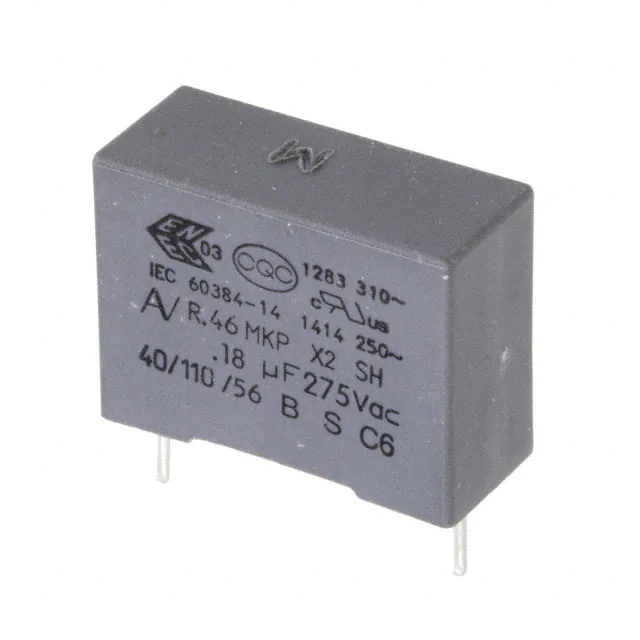

R46KI318000M1MCAP FILM 0.18UF 20% 560VDC RAD |
6,816 |
|
Datasheet |
Radial | 0.18 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R71PI32205030KCAP FILM METAL RAD POLYPROP |
6,774 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | 630V | Polypropylene (PP), Metallized | 253 mOhms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
R60EF3680CK6AKCAP FILM AUTOMOTIVE |
3,421 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R79IC2560AA40KCAP FILM METAL RAD POLYPROP |
2,783 |
|
Datasheet |
Radial | 0.056 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
