Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B81123C1102M003CAP FILM 1000PF 500VAC RAD |
4,930 |
|
Datasheet |
Radial | 1000 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
BFC237343105CAP FILM 1UF 10% 250VDC RADIAL |
3,884 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
B32671P5224K000CAP FILM 0.22UF 10% 520VDC RAD |
3,855 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
B32922C3683M000CAP FILM 0.068UF 20% 630VDC RAD |
3,692 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
FKP1J021004D00KSSDCAP FILM 10000PF 10% 630VDC RAD |
3,577 |
|
Datasheet |
Radial | 10000 pF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474I247050A2KCAP FILM 0.047UF 10% 1KVDC RAD |
3,512 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R46KF3100DQP1MCAP FILM 0.1UF 20% 560VDC RAD |
3,046 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
B32642B6333JCAP FILM 0.033UF 5% 630VDC RAD |
3,005 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32021A3332M189CAP FILM 3300PF 20% 1.5KVDC RAD |
2,985 |
|
Datasheet |
Radial | 3300 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
 Series Style D.jpg)
|
ECW-F2154JAQCAP FILM 0.15UF 5% 250VDC RADIAL |
2,233 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.220" W (13.00mm x 5.60mm) | 0.638" (16.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R71PI333050H6KFILM, RADIAL, PULSE, SINGLE META |
2,020 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 84 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R75RI21004030JCAP FILM 10000PF 5% 1.25KVDC RAD |
3,211 |
|
Datasheet |
Radial | 10000 pF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MMK5394J100J04L4BULKCAP FILM 0.39UF 5% 100VDC RADIAL |
1,811 |
|
Datasheet |
Radial | 0.39 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
MKP1U016804C00KSSDCAP FILM 6800PF 10% 2KVDC RAD |
1,592 |
|
Datasheet |
Radial | 6800 pF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|

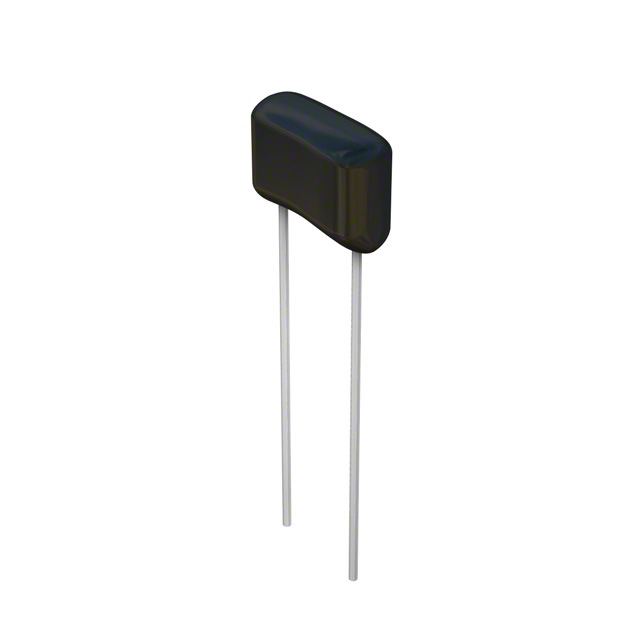

DME2S22K-FCAP FILM 0.022UF 10% 250VDC RAD |
2,436 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.406" L x 0.177" W (10.30mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
MMK5273J50J01L4BULKCAP FILM 0.027UF 5% 50VDC RADIAL |
1,472 |
|
Datasheet |
Radial | 0.027 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
 Series Style B.jpg)
|
ECW-F2104JABCAP FILM 0.1UF 5% 250VDC RADIAL |
1,428 |
|
Datasheet |
Radial | 0.1 µF | ±5% | - | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.614" (15.60mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
|
B32642B0183JCAP FILM 0.018UF 5% 1KVDC RADIAL |
1,362 |
|
Datasheet |
Radial | 0.018 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32652A6683J000CAP FILM 0.068UF 5% 630VDC RAD |
1,300 |
|
Datasheet |
Radial | 0.068 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W105KACAP FILM 1UF 10% 450VDC RADIAL |
1,034 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
