Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32671L1412J000CAP FILM 4100PF 5% 1.6KVDC RAD |
3,961 |
|
Datasheet |
Radial | 4100 pF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32671L1392J000CAP FILM 3900PF 5% 1.6KVDC RAD |
3,912 |
|
Datasheet |
Radial | 3900 pF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32672L8182J000CAP FILM 1800PF 5% 2KVDC RADIAL |
3,879 |
|
Datasheet |
Radial | 1800 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP2G011501B00KSSDCAP FILM 1500PF 10% 400VDC RAD |
3,658 |
|
Datasheet |
Radial | 1500 pF | ±10% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
R76QF122050H0JCAP FILM 2200PF 5% 1KVDC RADIAL |
2,563 |
|
Datasheet |
Radial | 2200 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 289 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI21005001KCAP FILM 10000PF 10% 560VDC RAD |
1,980 |
|
Datasheet |
Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
.jpg)
|
683MMR630KCAP FILM 0.068UF 10% 630VDC RAD |
1,785 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.453" (11.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
R46KI21000001K1CAP FILM 10000PF 10% 560VDC RAD |
1,702 |
|
Datasheet |
Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32672L1682J000CAP FILM 6800PF 5% 1.6KVDC RAD |
1,632 |
|
Datasheet |
Radial | 6800 pF | ±5% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F339MX234731MFP2B0CAP FILM 0.047UF 20% 630VDC RAD |
1,538 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
BFC237065153CAP FILM 0.015UF 10% 400VDC RAD |
1,450 |
|
Datasheet |
Radial | 0.015 µF | ±10% | 220V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
MKS4O111502B00MSSDCAP FILM 1500PF 20% 1KVDC RADIAL |
1,256 |
|
Datasheet |
Radial | 1500 pF | ±20% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.335" (8.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP2J011001B00KSSDCAP FILM 1000PF 10% 630VDC RAD |
9,491 |
|
Datasheet |
Radial | 1000 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
B32672L8392J000CAP FILM 3900PF 5% 2KVDC RADIAL |
8,984 |
|
Datasheet |
Radial | 3900 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32922C3104K189CAP FILM 0.1UF 10% 630VDC RADIAL |
8,911 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1H562JX5CAP FILM 5600PF 5% 50VDC 1206 |
7,289 |
|
Datasheet |
1206 (3216 Metric) | 5600 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R82MC2470DQ50JCAP FILM 0.047UF 5% 400VDC RAD |
6,956 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32922C3154M289CAP FILM 0.15UF 20% 630VDC RAD |
6,475 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MMK5224J63J01L4BULKCAP FILM 0.22UF 5% 63VDC RADIAL |
5,501 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|

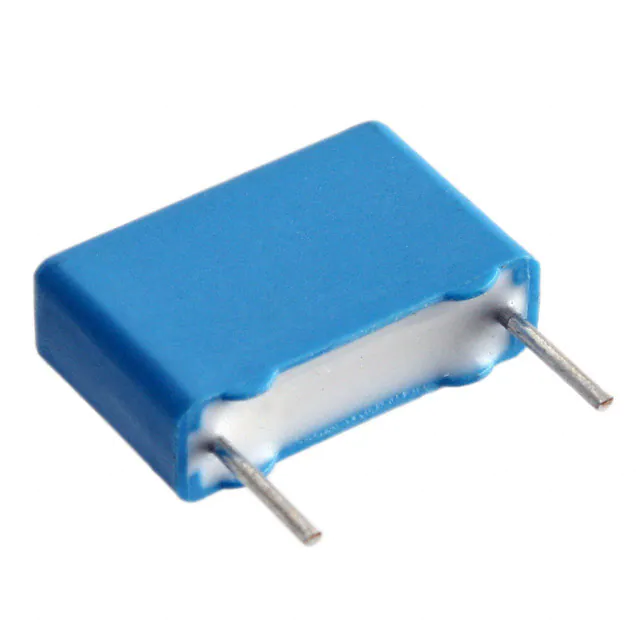

PHE450PA4100JR05CAP FILM 1000PF 5% 1KVDC RADIAL |
5,473 |
|
Datasheet |
Radial | 410 pF | ±5% | 375V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
