Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F863BC104K310ALW0LCAP FILM 0.1UF 10% 630VDC RADIAL |
2,945 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R46KI23300001MCAP FILM 0.033UF 20% 560VDC RAD |
2,412 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-H8153HACAP FILM 0.015UF 3% 800VDC RAD |
2,305 |
|
Datasheet |
Radial | 0.015 µF | ±3% | 283V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.606" L x 0.244" W (15.40mm x 6.20mm) | 0.476" (12.10mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
ECQ-E2184KBCAP FILM 0.18UF 10% 250VDC RAD |
2,000 |
|
Datasheet |
Radial | 0.18 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.197" W (10.30mm x 5.00mm) | 0.421" (10.70mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
F863BC104K310ZCAP FILM 0.1UF 10% 630VDC RADIAL |
1,987 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R463I23304001MCAP FILM 0.033UF 20% 630VDC RAD |
1,965 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32520C3683K189CAP FILM 0.068UF 10% 250VDC RAD |
1,158 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
.jpg)
|
ECH-U1C122JX5CAP FILM 1200PF 5% 16VDC 0603 |
9,426 |
|
Datasheet |
0603 (1608 Metric) | 1200 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
B32529C8102J189CAP FILM 1000PF 5% 630VDC RADIAL |
8,150 |
|
Datasheet |
Radial | 1000 pF | ±5% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | - | - |
|
MKS2C031501A00MSSDCAP FILM 0.15UF 20% 63VDC RADIAL |
7,544 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R413F122050T0KCAP FILM 2200PF 10% 1.5KVDC RAD |
4,915 |
|
Datasheet |
Radial | 2200 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R76QF16805050JFILM, RADIAL, PULSE, DOUBLE META |
4,101 |
|
Datasheet |
Radial | 6800 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 94 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32560J3224K000CAP FILM 0.22UF 10% 250VDC 2DIP |
4,070 |
|
Datasheet |
2-DIP | 0.22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354" L x 0.193" W (9.00mm x 4.90mm) | 0.295" (7.50mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|

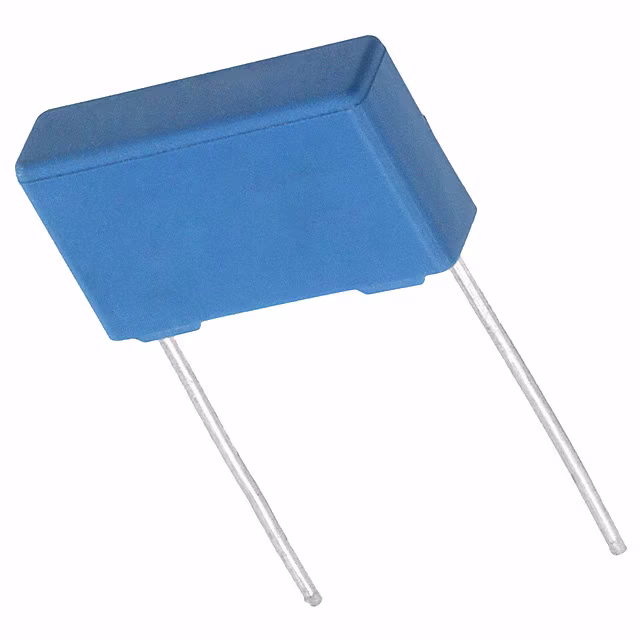

B32922C3223M000CAP FILM 0.022UF 20% 630VDC RAD |
3,189 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1C182JX5CAP FILM 1800PF 5% 16VDC 0603 |
2,993 |
|
Datasheet |
0603 (1608 Metric) | 1800 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
|
R46KI310000M1MCAP FILM 0.1UF 20% 560VDC RADIAL |
2,648 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32922P3333K000FILM CAP MKP X2 - 125C, 0.033UF |
1,678 |
|
Datasheet |
Radial | 0.033 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECH-U1C272JX5CAP FILM 2700PF 5% 16VDC 0603 |
1,630 |
|
Datasheet |
0603 (1608 Metric) | 2700 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.033" (0.85mm) | Solder Pads | - | General Purpose | - | - |
|
R82EC3330Z370KCAP FILM 0.33UF 10% 100VDC RAD |
1,221 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
103MSR400KCAP FILM 10000PF 10% 400VDC RAD |
1,210 |
|
Datasheet |
Radial | 10000 pF | ±10% | 200V | 400V | Polyester, Metallized | 176.839 Ohms | -55°C ~ 125°C | Through Hole | 0.413" L x 0.217" W (10.50mm x 5.50mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
