BOM Upload
FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI3443DVMOSFET P-CH 20V 4.4A MICRO6 |
4,639 |
|
Datasheet |
HEXFET® | SOT-23-6 Thin, TSOT-23-6 | Bulk | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 2.5V, 4.5V | 65mOhm @ 4.4A, 4.5V | 1.5V @ 250µA | 15 nC @ 4.5 V | ±12V | 1079 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Micro6™(TSOP-6) |
|
SI3475DV-T1-E3MOSFET P-CH 200V 950MA 6TSOP |
5,510 |
|
- |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 950mA (Tc) | 6V, 10V | 1.61Ohm @ 900mA, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 500 pF @ 50 V | - | 2W (Ta), 3.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|

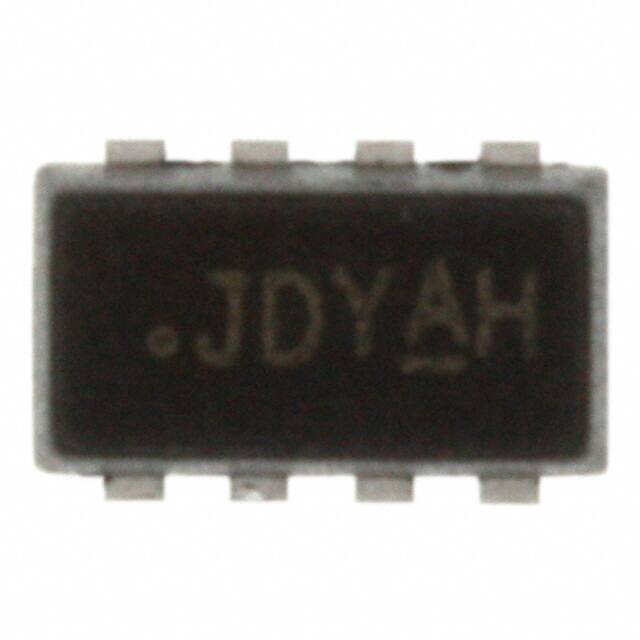

SI5856DC-T1-E3MOSFET N-CH 20V 4.4A 1206-8 |
3,634 |
|
- |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.4A (Ta) | 1.8V, 4.5V | 40mOhm @ 4.4A, 4.5V | 1V @ 250µA | 7.5 nC @ 4.5 V | ±8V | - | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 1206-8 ChipFET™ |
|
SI8404DB-T1-E1MOSFET N-CH 8V 12.2A 4MICROFOOT |
7,639 |
|
- |
TrenchFET® | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 8 V | 12.2A (Tc) | 1.8V, 4.5V | 31mOhm @ 1A, 4.5V | 1V @ 250µA | 33 nC @ 5 V | ±5V | 1950 pF @ 4 V | - | 2.78W (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
|
SIB417EDK-T1-GE3MOSFET P-CH 8V 9A PPAK SC75-6 |
9,295 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-75-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 9A (Tc) | 1.2V, 4.5V | 58mOhm @ 5.8A, 4.5V | 1V @ 250µA | 12 nC @ 5 V | ±5V | 565 pF @ 4 V | - | 2.4W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-75-6 |
|
MCT04N15-TPInterface |
5,559 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 4A | 10V | 160mOhm @ 4A, 10V | 1.5V @ 250µA | 19 nC @ 10 V | ±20V | 900 pF @ 25 V | - | - | -55°C ~ 150°C | - | - | Surface Mount | SOT-223 |
|
FQI13N06LTUMOSFET N-CH 60V 13.6A I2PAK |
5,911 |
|
Datasheet |
QFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 13.6A (Tc) | 5V, 10V | 110mOhm @ 6.8A, 10V | 2.5V @ 250µA | 6.4 nC @ 5 V | ±20V | 350 pF @ 25 V | - | 3.75W (Ta), 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
TSM6N60CH C5GMOSFET N-CHANNEL 600V 6A TO251 |
2,878 |
|
- |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 1.25Ohm @ 3A, 10V | 4V @ 250µA | 20.7 nC @ 10 V | ±30V | 1248 pF @ 25 V | - | 89W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
FQD19N10LTFMOSFET N-CH 100V 15.6A DPAK |
2,656 |
|
- |
QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15.6A (Tc) | 5V, 10V | 100mOhm @ 7.8A, 10V | 2V @ 250µA | 18 nC @ 5 V | ±20V | 870 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
TSM4NB65CH C5GMOSFET N-CHANNEL 650V 4A TO251 |
2,646 |
|
- |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3.37Ohm @ 2A, 10V | 4.5V @ 250µA | 13.46 nC @ 10 V | ±30V | 549 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
DMTH6006SPS-13MOSFET N-CH 60V PWRDI5060 |
3,262 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 17.8A (Ta), 100A (Tc) | 10V | 6.2mOhm @ 10.5A, 10V | 4V @ 250µA | 27.9 nC @ 10 V | ±20V | 1721 pF @ 30 V | - | 2.94W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
NTD85N02RGMOSFET N-CH 24V 12A/85A DPAK |
6,372 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 12A (Ta), 85A (Tc) | 4.5V, 10V | 5.2mOhm @ 20A, 10V | 2V @ 250µA | 17.7 nC @ 5 V | ±20V | 2050 pF @ 20 V | - | 1.25W (Ta), 78.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
DMN2005UFGQ-13MOSFET N-CH 20V 18A PWRDI3333 |
4,077 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 18A (Ta), 50A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 13.5A, 4.5V | 1.2V @ 250µA | 164 nC @ 10 V | ±12V | 6495 pF @ 10 V | - | 1.05W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | POWERDI3333-8 |
|
BUK7Y07-30B,115MOSFET N-CH 30V 75A LFPAK56 |
7,269 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 10V | 7mOhm @ 25A, 10V | 4V @ 1mA | 31 nC @ 10 V | ±20V | 1773 pF @ 25 V | - | 105W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
;;2.jpg)
|
STD50NH02LT4MOSFET N-CH 24V 50A DPAK |
6,113 |
|
- |
STripFET™ III | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 50A (Tc) | 5V, 10V | 10.5mOhm @ 25A, 10V | 1.8V @ 250µA | 24 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
HUFA75307P3MOSFET N-CH 55V 15A TO220-3 |
6,759 |
|
Datasheet |
UltraFET™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 15A (Tc) | 10V | 90mOhm @ 15A, 10V | 4V @ 250µA | 20 nC @ 20 V | ±20V | 250 pF @ 25 V | - | 45W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
DMT8008SPS-13MOSFET N-CH 80V 83A PWRDI5060-8 |
5,455 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 83A (Tc) | 6V, 10V | 7.8mOhm @ 14A, 10V | 4V @ 1mA | 34 nC @ 10 V | ±20V | 1950 pF @ 40 V | - | 1.3W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMTH10H009LPS-13MOSFET N-CH 100V PWRDI5060 |
4,998 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Ta), 100A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.5V @ 250µA | 40.2 nC @ 10 V | ±20V | 2309 pF @ 50 V | - | 1.5W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMTH8008LPS-13MOSFET N-CH 80V 91A PWRDI5060-8 |
6,627 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 91A (Tc) | 4.5V, 10V | 7.8mOhm @ 14A, 10V | 2.8V @ 1mA | 41.2 nC @ 10 V | ±20V | 2345 pF @ 40 V | - | 1.5W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
|
|
DMTH8008SPS-13MOSFET N-CH 80V 92A PWRDI5060-8 |
8,143 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 92A (Tc) | 6V, 10V | 7.8mOhm @ 14A, 10V | 4V @ 1mA | 34 nC @ 10 V | ±20V | 1950 pF @ 40 V | - | 1.6W (Ta), 100W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerDI5060-8 |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in FETs, MOSFETs?
This category includes related FETs, MOSFETs subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for FETs, MOSFETs components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for FETs, MOSFETs and other electronic components.
