FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFI9640GPBFMOSFET P-CH 200V 6.1A TO220-3 |
1,898 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 6.1A (Tc) | 10V | 500mOhm @ 3.7A, 10V | 4V @ 250µA | 44 nC @ 10 V | ±20V | 1200 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
SIHB15N80AE-GE3MOSFET N-CH 800V 13A D2PAK |
1,065 |
|
Datasheet |
E | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 13A (Tc) | 10V | 350mOhm @ 7.5A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±30V | 1093 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
NTTFS022N15MCPOWER MOSFET, N CHANNEL, 150V, 3 |
3,940 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 7.4A (Ta), 37.2A (Tc) | 8V, 10V | 22mOhm @ 18A, 10V | 4.5V @ 100µA | 17 nC @ 10 V | ±20V | 1315 pF @ 75 V | - | 1.2W (Ta), 71.4W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (3.3x3.3) |
|
STP18NM60NMOSFET N-CH 600V 13A TO220AB |
138 |
|
Datasheet |
MDmesh™ II | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 285mOhm @ 6.5A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1000 pF @ 50 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
HUF75345P3MOSFET N-CH 55V 75A TO220-3 |
5,097 |
|
Datasheet |
UltraFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 7mOhm @ 75A, 10V | 4V @ 250µA | 275 nC @ 20 V | ±20V | 4000 pF @ 25 V | - | 325W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STP24N60M6MOSFET N-CH 600V TO220 |
883 |
|
Datasheet |
MDmesh™ M6 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tj) | 10V | 190mOhm @ 8.5A, 10V | 4.75V @ 250µA | 23 nC @ 10 V | ±25V | 960 pF @ 100 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
AUIRFR540ZTRLMOSFET N-CH 100V 35A DPAK |
388 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 35A (Tc) | 10V | 28.5mOhm @ 21A, 10V | 4V @ 50µA | 59 nC @ 10 V | ±20V | 1690 pF @ 25 V | - | 91W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|

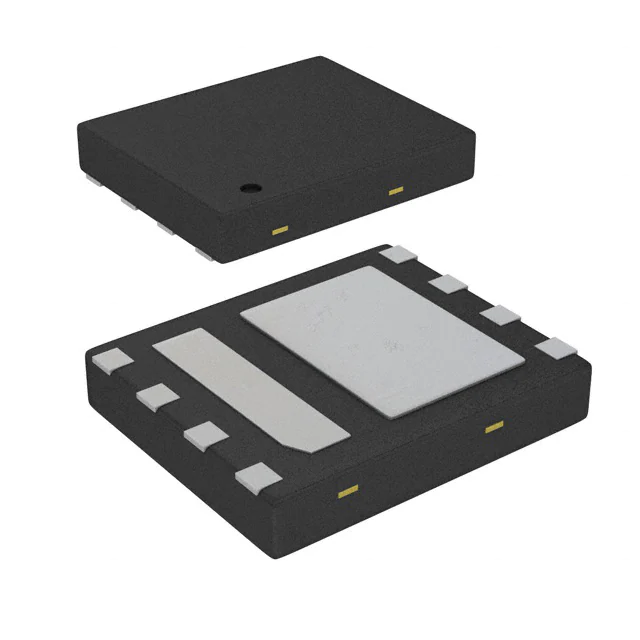

FDMS2672MOSFET N-CH 200V 3.7A/20A 8MLP |
4,045 |
|
Datasheet |
UltraFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.7A (Ta), 20A (Tc) | 6V, 10V | 77mOhm @ 3.7A, 10V | 4V @ 250µA | 42 nC @ 10 V | ±20V | 2315 pF @ 100 V | - | 2.5W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (5x6), Power56 |
|
BUK764R4-60E,118MOSFET N-CH 60V 100A D2PAK |
2,768 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Tc) | 10V | 4.5mOhm @ 25A, 10V | 4V @ 1mA | 82 nC @ 10 V | ±20V | 6230 pF @ 25 V | - | 234W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
STB120N4LF6MOSFET N-CH 40V 80A D2PAK |
1,095 |
|
Datasheet |
DeepGATE™, STripFET™ VI | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 5V, 10V | 4mOhm @ 40A, 10V | 3V @ 250µA | 80 nC @ 10 V | ±20V | 4300 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
|
CSD18510Q5BTMOSFET N-CH 40V 300A 8VSON |
361 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 4.5V, 10V | 0.96mOhm @ 32A, 10V | 2.3V @ 250µA | 153 nC @ 10 V | ±20V | 11400 pF @ 20 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSON-CLIP (5x6) |
|
|
FDP085N10A-F102MOSFET N-CH 100V 96A TO220-3 |
800 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 96A (Tc) | 10V | 8.5mOhm @ 96A, 10V | 4V @ 250µA | 40 nC @ 10 V | ±20V | 2695 pF @ 50 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
STL130N8F7MOSFET N-CH 80V 130A POWERFLAT |
10,719 |
|
Datasheet |
DeepGATE™, STripFET™ VII | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 130A (Tc) | 10V | 3.6mOhm @ 13A, 10V | 4.5V @ 250µA | 96 nC @ 10 V | ±20V | 6340 pF @ 40 V | - | 135W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerFlat™ (5x6) |
|
IRF6785MTRPBFMOSFET N-CH 200V 3.4A DIRECTFET |
9,600 |
|
Datasheet |
HEXFET® | DirectFET™ Isometric MZ | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.4A (Ta), 19A (Tc) | 10V | 100mOhm @ 4.2A, 10V | 5V @ 100µA | 36 nC @ 10 V | ±20V | 1500 pF @ 25 V | - | 2.8W (Ta), 57W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MZ |
|
IRF740APBF-BE3MOSFET N-CH 400V 10A TO220AB |
1,619 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 10A (Tc) | 10V | 550mOhm @ 6A, 10V | 4V @ 250µA | 36 nC @ 10 V | ±30V | 1030 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFZ44STRLPBFMOSFET N-CH 60V 50A D2PAK |
1,414 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 28mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 3.7W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IPB65R190C7ATMA2MOSFET N-CH 650V 13A TO263-3 |
1,364 |
|
Datasheet |
CoolMOS™ C7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tc) | 10V | 190mOhm @ 5.7A, 10V | 4V @ 290µA | 23 nC @ 10 V | ±20V | 1150 pF @ 400 V | - | 72W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
SIHA15N80AEF-GE3EF SERIES POWER MOSFET WITH FAST |
931 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 350mOhm @ 6.5A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±30V | 1128 pF @ 100 V | - | 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
|
STP13NK60ZMOSFET N-CH 600V 13A TO220AB |
754 |
|
Datasheet |
SuperMESH™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | 4.5V @ 100µA | 92 nC @ 10 V | ±30V | 2030 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
NTMFS0D6N03CT1GMOSFET, POWER, SINGLE N-CHANNEL, |
5,697 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Ta), 433A (Tc) | 4.5V, 10V | 0.62mOhm @ 30A, 10V | 2.2V @ 280µA | 145 nC @ 10 V | ±20V | 10500 pF @ 15 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
