FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF9520MOSFET P-CH 100V 6A TO220AB |
6,668 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 6A (Tc) | - | 600mOhm @ 3.5A, 10V | 4V @ 250µA | 22 nC @ 10 V | ±20V | 300 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
FQB65N06TMMOSFET N-CH 60V 65A D2PAK |
6,179 |
|
Datasheet |
QFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 65A (Tc) | 10V | 16mOhm @ 32.5A, 10V | 4V @ 250µA | 65 nC @ 10 V | ±25V | 2410 pF @ 25 V | - | 3.75W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
FS10ASJ-06F-T13#X3N-CHANNEL POWER MOSFET |
6,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

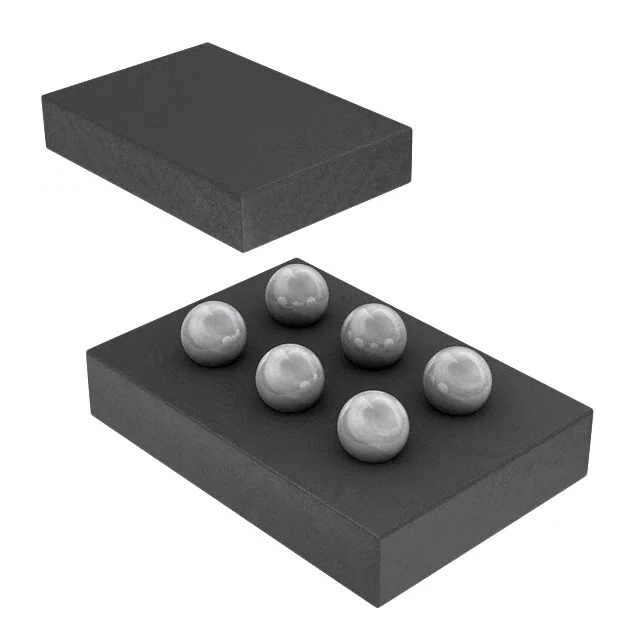

PMCM6501VPEZMOSFET P-CH 12V 6.2A 6WLCSP |
4,435 |
|
Datasheet |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 6.2A (Ta) | 1.8V, 4.5V | 25mOhm @ 3A, 4.5V | 900mV @ 250µA | 29.4 nC @ 4.5 V | ±8V | 1400 pF @ 6 V | - | 556mW (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
|
IRFHM8326TRPBFXTMA1TRENCH <= 40V |
3,996 |
|
Datasheet |
HEXFET® | 8-WDFN Exposed Pad | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 30 V | 19A (Ta), 25A (Tc) | 4.5V, 10V | 4.7mOhm @ 20A, 10V | 2.2V @ 50µA | 39 nC @ 10 V | ±20V | 2496 pF @ 10 V | - | 2.8W (Ta), 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3.1x3.1) |
|
PMCM6501UNEZMOSFET N-CH 20V 8.7A 6WLCSP |
3,150 |
|
Datasheet |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 8.7A (Ta) | 1.5V, 4.5V | 21mOhm @ 3A, 4.5V | 900mV @ 250µA | 6.2 nC @ 4.5 V | ±8V | 1050 pF @ 10 V | - | 400mW | 150°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.48x0.98) |
|
HUF75329D3SMOSFET N-CH 55V 20A TO252AA |
3,075 |
|
Datasheet |
UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 20A (Tc) | 10V | 26mOhm @ 20A, 10V | 4V @ 250µA | 65 nC @ 20 V | ±20V | 1060 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
PJQ5466A_R2_0000160V N-CHANNEL ENHANCEMENT MODE M |
2,926 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6.5A (Ta), 40A (Tc) | 4.5V, 10V | 21mOhm @ 15A, 10V | 2.5V @ 250µA | 28 nC @ 10 V | ±20V | 1680 pF @ 20 V | - | 2W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060-8 |
|
|
2SK4078-ZK-E1-AYSMALL SIGNAL N-CHANNEL MOSFET |
2,500 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RJK0358DPA-00#J0N-CHANNEL POWER MOSFET |
2,500 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HRF3205L100A 55V 0.008 OHM N-CHANNEL |
2,210 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 100A (Tc) | 10V | 8mOhm @ 59A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 175W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 (I2PAK) |
|
FQI11N40TUMOSFET N-CH 400V 11.4A I2PAK |
1,875 |
|
Datasheet |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 11.4A (Tc) | 10V | 480mOhm @ 5.7A, 10V | 5V @ 250µA | 35 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 3.13W (Ta), 147W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | I2PAK |
|
|
HUF75339S3STN-CHANNEL POWER MOSFET |
1,450 |
|
Datasheet |
UltraFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 12mOhm @ 75A, 10V | 4V @ 250µA | 130 nC @ 20 V | ±20V | 2000 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
SI4467DYP-CHANNEL POWER MOSFET |
1,009 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 13.5A (Ta) | 1.8V, 4.5V | 8.5mOhm @ 13.5A, 4.5V | 1.5V @ 250µA | 120 nC @ 4.5 V | ±8V | 8237 pF @ 10 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
NTP75N03RGMOSFET N-CH 25V 9.7A TO220AB |
7,364 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 9.7A (Ta) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2V @ 250µA | 13.2 nC @ 5 V | ±20V | 1333 pF @ 20 V | - | 1.25W (Ta), 74.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NTP75N03RMOSFET N-CH 25V 9.7A TO220AB |
4,325 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 9.7A (Ta) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2V @ 250µA | 13.2 nC @ 5 V | ±20V | 1333 pF @ 20 V | - | 1.25W (Ta), 74.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
2SK3436-TL-E-ONMOSFET N-CH |
40,500 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDS6614AMOSFET N-CH 30V 9.3A 8SOIC |
20,000 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.3A (Ta) | 4.5V, 10V | 18mOhm @ 9.3A, 10V | 3V @ 250µA | 17 nC @ 5 V | ±20V | 1160 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
2SK3436-TL-EMOSFET N-CH |
11,858 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AUIRFZ44VMOSFET N-CH 60V 55A TO220AB |
10,350 |
|
Datasheet |
HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 55A (Tc) | - | 16.5mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | - | 1812 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
FETs, MOSFETs Electronic Components
Frequently Asked Questions
Q1: What products are included in FETs, MOSFETs?
This category includes related FETs, MOSFETs subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for FETs, MOSFETs components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for FETs, MOSFETs and other electronic components.
