FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
STD4N90K5MOSFET N-CH 900V 3A DPAK |
4,299 |
|
Datasheet |
MDmesh™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 3A (Tc) | 10V | 2.1Ohm @ 1A, 10V | 5V @ 100µA | 5.3 nC @ 10 V | ±30V | 173 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
IPD65R380E6ATMA1MOSFET N-CH 650V 10.6A TO252-3 |
477 |
|
Datasheet |
CoolMOS™ E6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 10.6A (Tc) | 10V | 380mOhm @ 3.2A, 10V | 3.5V @ 320µA | 39 nC @ 10 V | ±20V | 710 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
AOTF12N60LMOSFET N-CH 600V 12A TO220F |
343 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 550mOhm @ 6A, 10V | 4.5V @ 250µA | 50 nC @ 10 V | ±30V | 2100 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
FDS8870MOSFET N-CH 30V 18A 8SOIC |
2,491 |
|
Datasheet |
PowerTrench® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4.2mOhm @ 18A, 10V | 2.5V @ 250µA | 112 nC @ 10 V | ±20V | 4615 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IRF630STRLPBFMOSFET N-CH 200V 9A D2PAK |
1,233 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 9A (Tc) | 10V | 400mOhm @ 5.4A, 10V | 4V @ 250µA | 43 nC @ 10 V | ±20V | 800 pF @ 25 V | - | 3W (Ta), 74W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
IRF630SPBFMOSFET N-CH 200V 9A D2PAK |
944 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 9A (Tc) | 10V | 400mOhm @ 5.4A, 10V | 4V @ 250µA | 43 nC @ 10 V | ±20V | 800 pF @ 25 V | - | 3W (Ta), 74W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
TPH8R80ANH,L1QMOSFET N CH 100V 32A 8-SOP |
29,285 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 32A (Tc) | 10V | 8.8mOhm @ 16A, 10V | 4V @ 500µA | 33 nC @ 10 V | ±20V | 2800 pF @ 50 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
SI4114DY-T1-E3MOSFET N-CH 20V 20A 8SO |
10,990 |
|
Datasheet |
TrenchFET® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 20A (Tc) | 4.5V, 10V | 6mOhm @ 10A, 10V | 2.1V @ 250µA | 95 nC @ 10 V | ±16V | 3700 pF @ 10 V | - | 2.5W (Ta), 5.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
PSMN1R7-30YL,115MOSFET N-CH 30V 100A LFPAK56 |
2,278 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 4.5V, 10V | 1.7mOhm @ 15A, 10V | 2.15V @ 1mA | 77.9 nC @ 10 V | ±20V | 5057 pF @ 12 V | - | 109W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
SISS5710DN-T1-GE3N-CHANNEL 150 V (D-S) MOSFET POW |
5,707 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 7.2A (Ta), 26.2A (Tc) | 7.5V, 10V | 31.5mOhm @ 10A, 10V | 4V @ 250µA | 15 nC @ 10 V | ±20V | 770 pF @ 75 V | - | 4.1W (Ta), 54.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
SQJA78EP-T1_GE3MOSFET N-CH 80V 72A PPAK SO-8 |
2,797 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 72A (Tc) | 10V | 5.3mOhm @ 10A, 10V | 3.3V @ 250µA | 95 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
STP5N80K5MOSFET N-CH 800V 4A TO220 |
1,304 |
|
Datasheet |
MDmesh™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.75Ohm @ 2A, 10V | 5V @ 100µA | 5 nC @ 10 V | ±30V | 177 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
NVMFS5C442NLAFT1GMOSFET N-CH 40V 29A/130A 5DFN |
1,182 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 29A (Ta), 130A (Tc) | 4.5V, 10V | 2.5mOhm @ 50A, 10V | 2V @ 250µA | 50 nC @ 10 V | ±20V | 3100 pF @ 25 V | - | 3.7W (Ta), 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
R6515KNX3C16650V 15A, TO-220AB, HIGH-SPEED S |
399 |
|
Datasheet |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 15A (Tc) | 10V | 315mOhm @ 6.5A, 10V | 5V @ 430µA | 27.5 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 161W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
BSP135H6906XTSA1MOSFET N-CH 600V 120MA SOT223-4 |
14,161 |
|
Datasheet |
SIPMOS™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 600 V | 120mA (Ta) | 0V, 10V | 45Ohm @ 120mA, 10V | 1V @ 94µA | 4.9 nC @ 5 V | ±20V | 146 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-SOT223-4 |
.JPG)
|
TSM160N10LCR RLGMOSFET N-CH 100V 46A 8PDFN |
10,449 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 46A (Tc) | 4.5V, 10V | 16mOhm @ 8A, 10V | 2.5V @ 250µA | 73 nC @ 10 V | ±20V | 4431 pF @ 50 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
IRFH5250TRPBFMOSFET N-CH 25V 45A/100A 8PQFN |
9,000 |
|
Datasheet |
HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 45A (Ta), 100A (Tc) | 4.5V, 10V | 1.15mOhm @ 50A, 10V | 2.35V @ 150µA | 110 nC @ 10 V | ±20V | 7174 pF @ 13 V | - | 3.6W (Ta), 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|

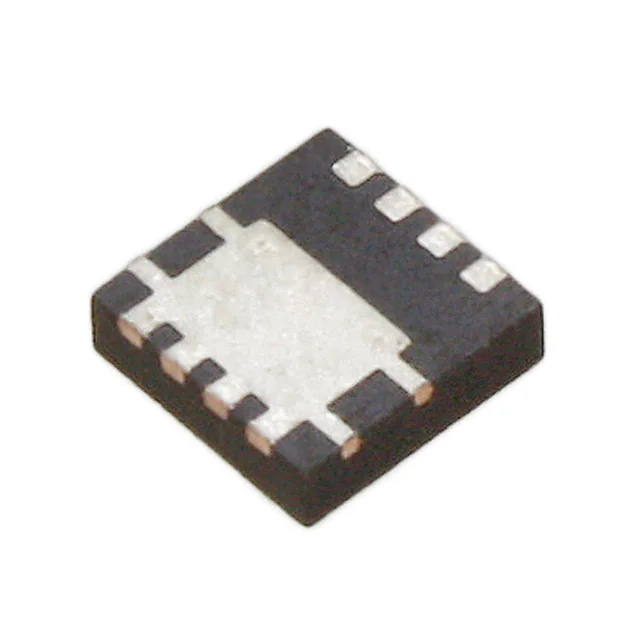

FDMC7660DCMOSFET N-CH 30V 30A/40A DLCOOL33 |
5,796 |
|
Datasheet |
Dual Cool™, PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Ta), 40A (Tc) | 4.5V, 10V | 2.2mOhm @ 22A, 10V | 2.5V @ 250µA | 76 nC @ 10 V | ±20V | 5170 pF @ 15 V | - | 3W (Ta), 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Dual Cool ™ 33 |
|
FCD260N65S3MOSFET N-CH 650V 12A TO252 |
2,325 |
|
Datasheet |
SuperFET® III | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 260mOhm @ 6A, 10V | 4.5V @ 1.2mA | 24 nC @ 10 V | ±30V | 1010 pF @ 400 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
DMTH6004LPSQ-13MOSFET N-CH 60V 100A PWRDI5060-8 |
1,925 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4.5V, 10V | 3.1mOhm @ 25A, 10V | 3V @ 250µA | 47.4 nC @ 4.5 V | ±20V | 4515 pF @ 30 V | - | 2.6W (Ta), 138W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
