FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSC020N03MSGATMA1MOSFET N-CH 30V 25A/100A TDSON |
31,901 |
|
Datasheet |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta), 100A (Tc) | 4.5V, 10V | 2mOhm @ 30A, 10V | 2V @ 250µA | 124 nC @ 10 V | ±20V | 9600 pF @ 15 V | - | 2.5W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TDSON-8-1 |
|
BUK9675-100A,118MOSFET N-CH 100V 23A D2PAK |
14,009 |
|
Datasheet |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 5V, 10V | 72mOhm @ 10A, 10V | 2V @ 1mA | - | ±15V | 1704 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
MCAC130N04-TPMOSFET N-CH 40 130A DFN5060 |
13,556 |
|
- |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 130A | - | 1.5mOhm @ 20A, 10V | 2.5V @ 250µA | 135 nC @ 10 V | ±20V | 7140 pF @ 25 V | - | 115W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN5060 |
|
STU7NF25MOSFET N-CH 250V 8A IPAK |
5,526 |
|
Datasheet |
STripFET™ II | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 8A (Tc) | 10V | 420mOhm @ 4A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±20V | 500 pF @ 25 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
BUK7Y3R5-40HXMOSFET N-CH 40V 120A LFPAK56 |
5,407 |
|
Datasheet |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 3.5mOhm @ 25A, 10V | 4V @ 1mA | 53 nC @ 10 V | +20V, -10V | 3441 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|

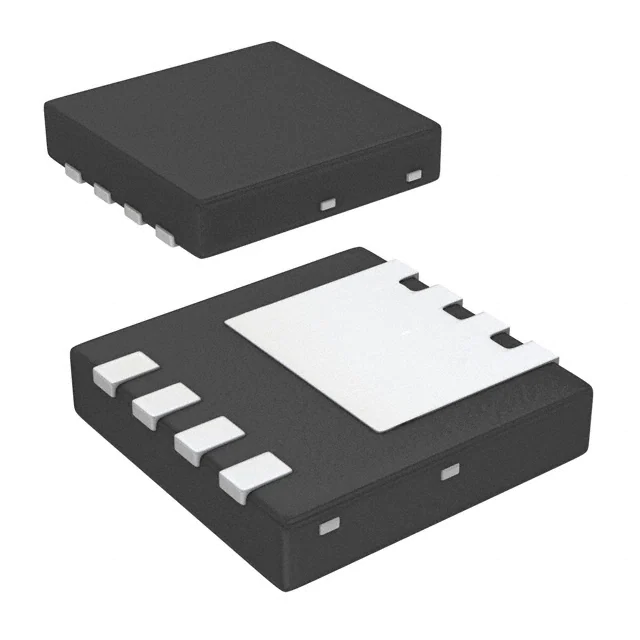

FDMC86324MOSFET N-CH 80V 7A/20A POWER33 |
3,555 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 7A (Ta), 20A (Tc) | 6V, 10V | 23mOhm @ 7A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 965 pF @ 50 V | - | 2.3W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power33 |
|
|
NVMFWS9D6P04M8LT1GMV8 P-CH 40V SO-8FL PORTFOLIO EX |
2,825 |
|
Datasheet |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 17.1A (Ta), 77A (Tc) | 4.5V, 10V | 9.5mOhm @ 20A, 10V | 2.4V @ 580µA | 14.47 nC @ 10 V | ±20V | 2002 pF @ 20 V | - | 3.7W (Ta), 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
;;2.jpg)
|
STD46P4LLF6MOSFET P-CH 40V 46A DPAK |
2,394 |
|
Datasheet |
STripFET™ F6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Tc) | 4.5V, 10V | 15mOhm @ 23A, 10V | 2.5V @ 250µA | 34 nC @ 4.5 V | ±20V | 3525 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | - | - | Surface Mount | DPAK |
|
RRH090P03TB1MOSFET P-CH 30V 9A 8SOP |
2,184 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 15.4mOhm @ 9A, 10V | 2.5V @ 1mA | 30 nC @ 5 V | ±20V | 3000 pF @ 10 V | - | 650mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
CSD18514Q5ATMOSFET N-CH 40V 89A 8VSON |
1,737 |
|
Datasheet |
NexFET™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 89A (Tc) | 4.5V, 10V | 7.9mOhm @ 15A, 10V | 2.4V @ 250µA | 40 nC @ 10 V | ±20V | 2683 pF @ 20 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-VSONP (5x6) |
|
RRH090P03GZETBMOSFET P-CH 30V 9A 8SOP |
970 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4V, 10V | 15.4mOhm @ 9A, 10V | 2.5V @ 1mA | 56 nC @ 10 V | ±20V | 3000 pF @ 10 V | - | 650mW (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
STP160N3LLMOSFET N-CH 30V 120A TO220 |
248 |
|
Datasheet |
STripFET™ H6 | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 4.5V, 10V | 3.2mOhm @ 60A, 10V | 2.5V @ 250µA | 42 nC @ 4.5 V | ±20V | 3500 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
PSMN2R8-40YSDXMOSFET N-CH 40V 160A LFPAK56 |
7,384 |
|
Datasheet |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 160A (Tc) | 10V | 2.8mOhm @ 25A, 10V | 3.6V @ 1mA | 62 nC @ 10 V | ±20V | 4507 pF @ 20 V | Schottky Diode (Body) | 147W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
NTTFS012N10MDTAGPTNG 100V LOW Q 12MOHM N-FET, U8 |
4,655 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.2A (Ta), 45A (Tc) | 6V, 10V | 14.4mOhm @ 15A, 10V | 4V @ 78µA | 13 nC @ 10 V | ±20V | 965 pF @ 50 V | - | 2.7W (Ta), 62W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
SPD04N50C3ATMA1MOSFET N-CH 500V 4.5A TO252-3 |
4,534 |
|
Datasheet |
CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.5A (Tc) | 10V | 950mOhm @ 2.8A, 10V | 3.9V @ 200µA | 22 nC @ 10 V | ±20V | 470 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
STB6N60M2MOSFET N-CH 600V 4.5A D2PAK |
10,399 |
|
Datasheet |
MDmesh™ II Plus | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tc) | 10V | 1.2Ohm @ 2.25A, 10V | 4V @ 250µA | 8 nC @ 10 V | ±25V | 232 pF @ 100 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IRFR1010ZTRPBFMOSFET N-CH 55V 42A DPAK |
6,063 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 42A (Tc) | 10V | 7.5mOhm @ 42A, 10V | 4V @ 100µA | 95 nC @ 10 V | ±20V | 2840 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
TK380P60Y,RQMOSFET N-CHANNEL 600V 9.7A DPAK |
4,000 |
|
Datasheet |
DTMOSV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Tc) | 10V | 380mOhm @ 4.9A, 10V | 4V @ 360µA | 20 nC @ 10 V | ±30V | 590 pF @ 300 V | - | 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
IPN80R600P7ATMA1MOSFET N-CH 800V 8A SOT223 |
2,007 |
|
Datasheet |
CoolMOS™ P7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 600mOhm @ 3.4A, 10V | 3.5V @ 170µA | 20 nC @ 10 V | ±20V | 570 pF @ 500 V | - | 7.4W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223 |
|
STF2N95K5MOSFET N-CH 950V 2A TO220FP |
1,100 |
|
Datasheet |
SuperMESH5™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 2A (Tc) | 10V | 5Ohm @ 1A, 10V | 5V @ 100µA | 10 nC @ 10 V | 30V | 105 pF @ 100 V | - | 20W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
