FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF40B207MOSFET N-CH 40V 95A TO220AB |
1,841 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 6V, 10V | 4.5mOhm @ 57A, 10V | 3.9V @ 50µA | 68 nC @ 10 V | ±20V | 2110 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IPD50P03P4L11ATMA2MOSFET P-CH 30V 50A TO252-31 |
19,021 |
|
Datasheet |
OptiMOS™ P2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | - | 10.5mOhm @ 50A, 10V | 2V @ 85µA | 55 nC @ 10 V | +5V, -16V | 3770 pF @ 25 V | - | 58W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
RQ6L020SPTCRMOSFET P-CH 60V 2A TSMT6 |
15,100 |
|
Datasheet |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 4V, 10V | 210mOhm @ 2A, 10V | 3V @ 1mA | 7.2 nC @ 5 V | ±20V | 750 pF @ 10 V | - | 1.25W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
IPA65R1K0CEXKSA1MOSFET N-CH 650V 7.2A TO220 |
1,456 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.2A (Tc) | 10V | 1Ohm @ 1.5A, 10V | 3.5V @ 200µA | 15.3 nC @ 10 V | ±20V | 328 pF @ 100 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
|
IPD040N03LGATMA1MOSFET N-CH 30V 90A TO252-3 |
186 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | 2.2V @ 250µA | 38 nC @ 10 V | ±20V | 3900 pF @ 15 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
FDMA7672MOSFET N-CH 30V 9A 6MICROFET |
7,388 |
|
Datasheet |
PowerTrench® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 21mOhm @ 9A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | 760 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
RQ7G080BGTCRNCH 40V 8A, TSMT8, POWER MOSFET |
5,756 |
|
Datasheet |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Ta) | 4.5V, 10V | 16.5mOhm @ 8A, 10V | 2.5V @ 1mA | 10.6 nC @ 10 V | ±20V | 530 pF @ 20 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
SVD2955T4GMOSFET P-CH 60V 12A DPAK |
4,682 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta) | 10V | 180mOhm @ 6A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 750 pF @ 25 V | - | 55W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
TPH14006NH,L1QMOSFET N CH 60V 14A 8-SOP ADV |
4,380 |
|
Datasheet |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta) | 6.5V, 10V | 14mOhm @ 7A, 10V | 4V @ 200µA | 16 nC @ 10 V | ±20V | 1300 pF @ 30 V | - | 1.6W (Ta), 32W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
IPD050N03LGATMA1MOSFET N-CH 30V 50A TO252-3 |
3,430 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 5mOhm @ 30A, 10V | 2.2V @ 250µA | 31 nC @ 10 V | ±20V | 3200 pF @ 15 V | - | 68W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
RW4E045AJTCL1NCH 30V 4.5A POWER MOSFET: RW4E0 |
1,919 |
|
Datasheet |
- | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 4.5A (Ta) | 2.5V, 4.5V | 40mOhm @ 4.5A, 4.5V | 1.5V @ 1mA | 4 nC @ 4.5 V | ±12V | 450 pF @ 15 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-7T |
|
|
FDWS86380-F085MOSFET N-CH 80V 50A POWER56 |
1,434 |
|
Datasheet |
PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 13.4mOhm @ 50A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1440 pF @ 40 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
|
IPD50N06S409ATMA2MOSFET N-CH 60V 50A TO252-31 |
250 |
|
Datasheet |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 9mOhm @ 50A, 10V | 4V @ 34µA | 47.1 nC @ 10 V | ±20V | 3785 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-11 |
|
AON7418MOSFET N-CH 30V 46A/50A 8DFN |
77,308 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 46A (Ta), 50A (Tc) | 4.5V, 10V | 1.7mOhm @ 20A, 10V | 2.2V @ 250µA | 65 nC @ 10 V | ±20V | 2994 pF @ 15 V | - | 6.2W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3.3x3.3) |
|
SI7629DN-T1-GE3MOSFET P-CH 20V 35A PPAK1212-8 |
15,784 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 35A (Tc) | 2.5V, 10V | 4.6mOhm @ 20A, 10V | 1.5V @ 250µA | 177 nC @ 10 V | ±12V | 5790 pF @ 10 V | - | 3.7W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SI3438DV-T1-GE3MOSFET N-CH 40V 7.4A 6TSOP |
15,425 |
|
Datasheet |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 7.4A (Tc) | 4.5V, 10V | 35.5mOhm @ 5A, 10V | 3V @ 250µA | 20 nC @ 10 V | ±20V | 640 pF @ 20 V | - | 2W (Ta), 3.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-TSOP |
|
SQJ443EP-T2_GE3P-CHANNEL 40-V (D-S) 175C MOSFET |
11,528 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 29mOhm @ 18A, 10V | 2.5V @ 250µA | 57 nC @ 10 V | ±20V | 2030 pF @ 20 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
ISZ56DP15LMATMA1TRENCH >=100V |
9,850 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 1.35A (Ta), 6.7A (Tc) | 4.5V, 10V | 560mOhm @ 5A, 10V | 2V @ 724µA | 40 nC @ 10 V | ±20V | 1400 pF @ 75 V | - | 2.5W (Ta), 62.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSDSON-8 FL |
;;2.jpg)
|
STD64N4F6AGMOSFET N-CH 40V 54A DPAK |
5,836 |
|
Datasheet |
STripFET™ F6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 54A (Tc) | 10V | 8.2mOhm @ 27A, 10V | 4.5V @ 250µA | 44 nC @ 10 V | ±20V | 2415 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

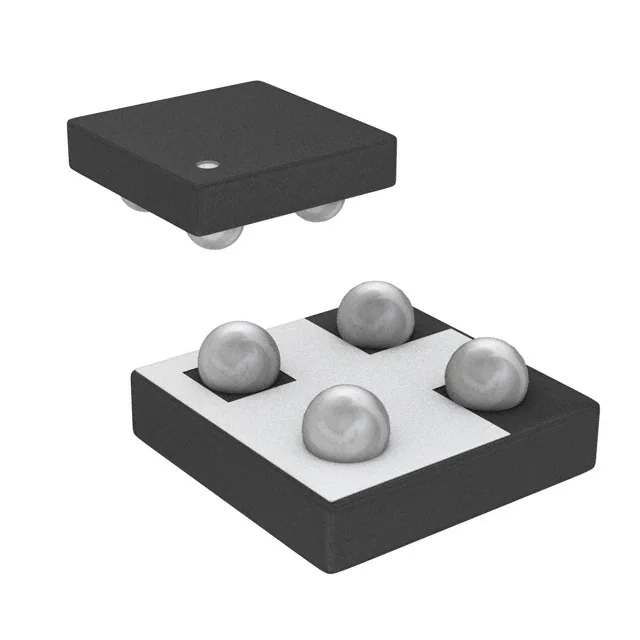

SI8409DB-T1-E1MOSFET P-CH 30V 4.6A 4MICROFOOT |
5,173 |
|
Datasheet |
TrenchFET® | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.6A (Ta) | 2.5V, 4.5V | 46mOhm @ 1A, 4.5V | 1.4V @ 250µA | 26 nC @ 4.5 V | ±12V | - | - | 1.47W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
