FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP180N055TUK-E1-AYMOSFET N-CH 55V 180A TO263-7 |
2,182 |
|
Datasheet |
- | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 180A (Tc) | 10V | 1.4mOhm @ 90A, 10V | 4V @ 250µA | 294 nC @ 10 V | ±20V | 16050 pF @ 25 V | - | 1.8W (Ta), 348W (Tc) | 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|
NTMTS0D6N04CTXGMOSFET N-CH 40V 533A |
8,417 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 533A (Tc) | 10V | 0.48mOhm @ 50A, 10V | 4V @ 250µA | 187 nC @ 10 V | ±20V | 11800 pF @ 20 V | - | 5W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFNW (8.3x8.4) |
|
SIHB21N65EF-GE3MOSFET N-CH 650V 21A D2PAK |
143 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 106 nC @ 10 V | ±30V | 2322 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
.jpg)
|
STW65N60DM6MOSFET N-CH 600V 38A TO247 |
592 |
|
Datasheet |
MDmesh™ DM6 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | - | - | - | - | ±25V | - | - | - | - | - | - | Through Hole | TO-247-3 |
|
IPL60R104C7AUMA1MOSFET N-CH 600V 20A 4VSON |
8,897 |
|
Datasheet |
CoolMOS™ C7 | 4-PowerTSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 104mOhm @ 9.7A, 10V | 4V @ 490µA | 42 nC @ 10 V | ±20V | 1819 pF @ 400 V | - | 122W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-VSON-4 |
|
IPTG063N15NM5ATMA1TRENCH >=100V |
1,774 |
|
Datasheet |
OptiMOS™ 5 | 8-PowerSMD, Gull Wing | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 16.2A (Ta), 122A (Tc) | 8V, 10V | 6.3mOhm @ 50A, 10V | 4.6V @ 163µA | 63 nC @ 10 V | ±20V | 4800 pF @ 75 V | - | 3.8W (Ta), 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HSOG-8 |
|
FDP054N10MOSFET N-CH 100V 120A TO220-3 |
676 |
|
Datasheet |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4.5V @ 250µA | 203 nC @ 10 V | ±20V | 13280 pF @ 25 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
R6025JNXC7GMOSFET N-CH 600V 25A TO220FM |
1,961 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 15V | 182mOhm @ 12.5A, 15V | 7V @ 4.5mA | 57 nC @ 15 V | ±30V | 1900 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
NTMT190N65S3HPOWER MOSFET, N-CHANNEL, SUPERFE |
2,064 |
|
Datasheet |
SuperFET® III | 4-PowerTSFN | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 190mOhm @ 8A, 10V | 4V @ 1.4mA | 31 nC @ 10 V | ±30V | 1600 pF @ 400 V | - | 129W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-TDFN (8x8) |
|
SQJ456EP-T1_GE3MOSFET N-CH 100V 32A PPAK SO-8 |
4,408 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 32A (Tc) | 6V, 10V | 26mOhm @ 9.3A, 10V | 3.5V @ 250µA | 63 nC @ 10 V | ±20V | 3342 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
AUIRFP4110MOSFET N-CH 100V 120A TO247AC |
340 |
|
Datasheet |
HEXFET® | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 4.5mOhm @ 75A, 10V | 4V @ 250µA | 210 nC @ 10 V | ±20V | 9620 pF @ 50 V | - | 370W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
R8007AND3FRATLMOSFET N-CH 800V 7A TO252 |
4,914 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 1.6Ohm @ 3.5A, 10V | 5V @ 1mA | 28 nC @ 10 V | ±30V | 850 pF @ 25 V | - | 140W (Tc) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252 |
|
STL26NM60NMOSFET N-CH 600V 19A POWERFLAT |
2,609 |
|
Datasheet |
MDmesh™ II | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.7A (Ta), 19A (Tc) | 10V | 185mOhm @ 10A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 1800 pF @ 50 V | - | 125mW (Ta), 3W (Tc) | 150°C (TJ) | - | - | Surface Mount | PowerFlat™ (8x8) HV |
|
SIHB120N60E-GE3MOSFET N-CH 600V 25A D2PAK |
906 |
|
Datasheet |
E | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 120mOhm @ 12A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1562 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

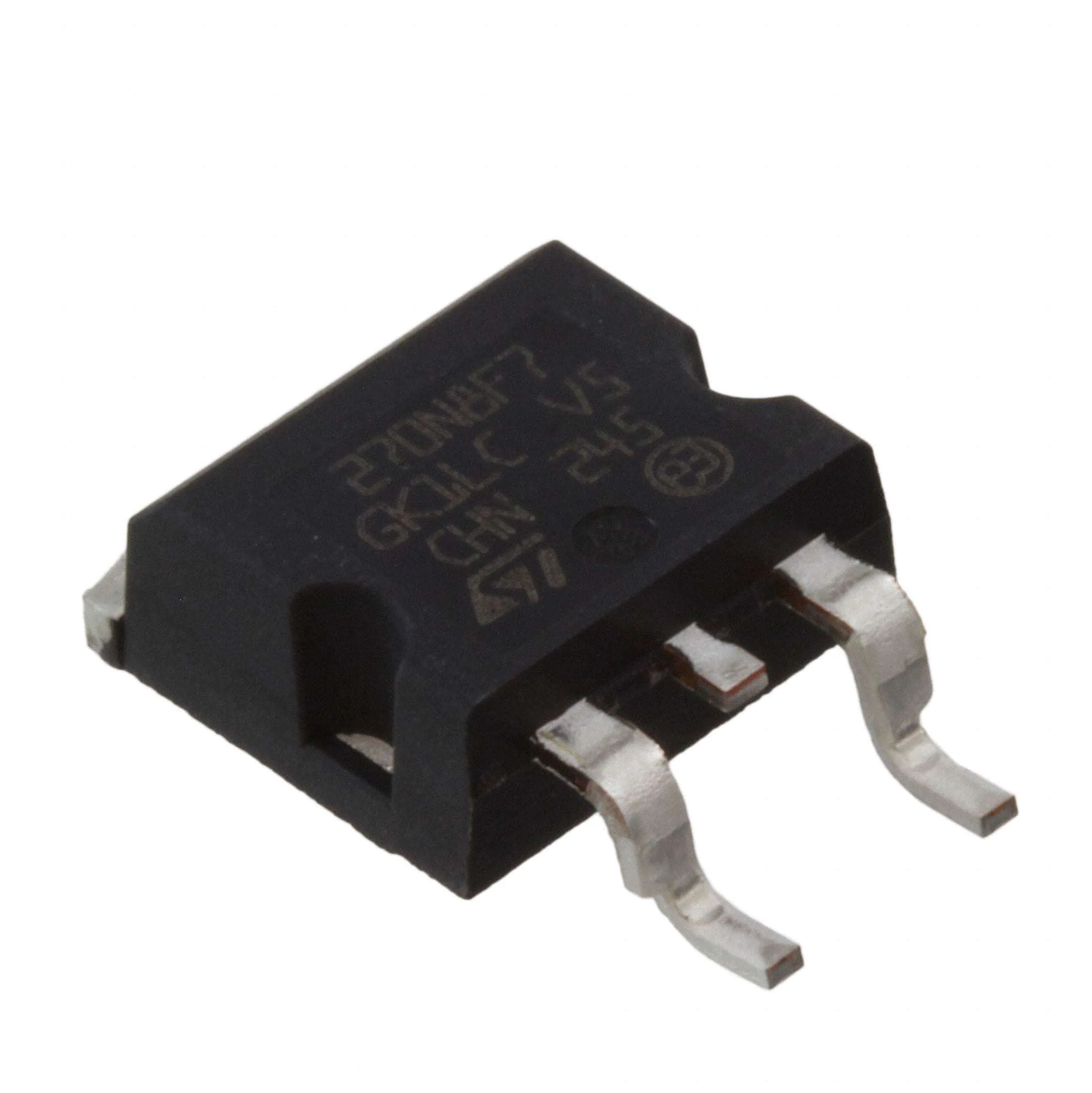

STH270N8F7-2MOSFET N-CH 80V 180A H2PAK |
480 |
|
Datasheet |
DeepGATE™, STripFET™ VII | TO-263-3, D2PAK (2 Leads + Tab), Variant | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | H2PAK |
|
STF13N95K3MOSFET N-CH 950V 10A TO220FP |
975 |
|
Datasheet |
SuperMESH3™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 10A (Tc) | 10V | 850mOhm @ 5A, 10V | 5V @ 100µA | 51 nC @ 10 V | ±30V | 1620 pF @ 100 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
TK090U65Z,RQDTMOS VI TOLL PD=230W F=1MHZ |
2,118 |
|
Datasheet |
DTMOSVI | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Ta) | 10V | 90mOhm @ 15A, 10V | 4V @ 1.27mA | 47 nC @ 10 V | ±30V | 2780 pF @ 300 V | - | 230W (Tc) | 150°C | - | - | Surface Mount | TOLL |
|
NTHL110N65S3FMOSFET N-CH 650V 30A TO247-3 |
895 |
|
Datasheet |
- | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 30A (Tc) | 10V | 110mOhm @ 15A, 10V | 5V @ 3mA | 58 nC @ 10 V | ±30V | 2560 pF @ 400 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IPW60R125C6FKSA1MOSFET N-CH 600V 30A TO247-3 |
272 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 125mOhm @ 14.5A, 10V | 3.5V @ 960µA | 96 nC @ 10 V | ±20V | 2127 pF @ 100 V | - | 219W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-1 |
|
FCH110N65F-F155MOSFET N-CH 650V 35A TO247 |
761 |
|
Datasheet |
FRFET®, SuperFET® II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 110mOhm @ 17.5A, 10V | 5V @ 3.5mA | 145 nC @ 10 V | ±20V | 4895 pF @ 100 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
