FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPD60R380E6BTMA1MOSFET N-CH 600V 10.6A TO252-3 |
6,500 |
|
Datasheet |
CoolMOS™ E6 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Bulk | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.6A (Tc) | 10V | 380mOhm @ 3.8A, 10V | 3.5V @ 300µA | 32 nC @ 10 V | ±20V | 700 pF @ 100 V | - | 83W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
IPU80R1K4CEAKMA1MOSFET N-CH 800V 3.9A TO251-3 |
3,906 |
|
Datasheet |
CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 3.9A (Tc) | 10V | 1.4Ohm @ 2.3A, 10V | 3.9V @ 240µA | 23 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|

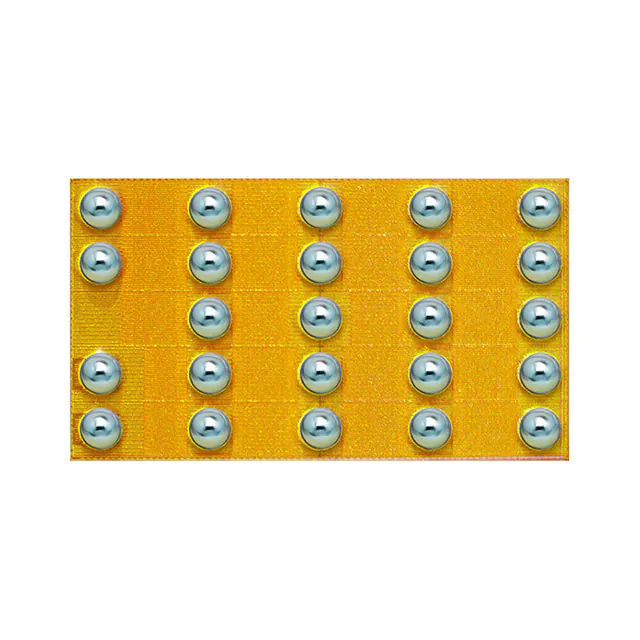

EPC2030ENGRTGANFET NCH 40V 31A DIE |
6,032 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 40 V | 31A (Ta) | 5V | 2.4mOhm @ 30A, 5V | 2.5V @ 16mA | 18 nC @ 5 V | +6V, -4V | 1900 pF @ 20 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
|
EPC2031ENGRTGANFET NCH 60V 31A DIE |
8,440 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 60 V | 31A (Ta) | 5V | 2.6mOhm @ 30A, 5V | 2.5V @ 15mA | 17 nC @ 5 V | +6V, -4V | 1800 pF @ 300 V | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | Die |
|
DMP6185SE-7MOSFET P-CH 60V 3A SOT223 |
6,106 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 4.5V, 10V | 150mOhm @ 2.2A, 10V | 3V @ 250µA | 14 nC @ 10 V | ±20V | 708 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223-3 |
|
AOB11C60MOSFET N-CH 600V 11A TO263 |
3,208 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 440mOhm @ 5.5A, 10V | 5V @ 250µA | 42 nC @ 10 V | ±30V | 2000 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
AOB20C60MOSFET N-CH 600V 20A TO263 |
3,726 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 250mOhm @ 10A, 10V | 5V @ 250µA | 74 nC @ 10 V | ±30V | 3440 pF @ 100 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
AOD4160MOSFET N-CH TO-252 |
7,003 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-252 (DPAK) |
|
|
AOI452AMOSFET N-CH 25V 55A TO251A |
5,840 |
|
Datasheet |
SDMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 55A (Tc) | 4.5V, 10V | 7.3mOhm @ 20A, 10V | 2.5V @ 250µA | 26 nC @ 10 V | ±20V | 1450 pF @ 12.5 V | - | 3.2W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-251A |
|
AON7548MOSFET N-CH 30V 24A 8DFN |
6,193 |
|
Datasheet |
AlphaMOS | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Tc) | 4.5V, 10V | 8.8mOhm @ 20A, 10V | 2.5V @ 250µA | 22 nC @ 10 V | ±20V | 1086 pF @ 15 V | - | 3.1W (Ta), 23W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
AOY516MOSFET N-CH 30V 46A TO251B |
3,443 |
|
Datasheet |
AlphaMOS | TO-251-3 Stub Leads, IPAK | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 46A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.6V @ 250µA | 33 nC @ 10 V | ±20V | 1333 pF @ 15 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-251B |
|
TPH3202PSGANFET N-CH 600V 9A TO220AB |
4,635 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
TPH3202LDGANFET N-CH 600V 9A 4PQFN |
2,850 |
|
Datasheet |
- | 4-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 4-PQFN (8x8) |
|
|
TPH3206LDGANFET N-CH 600V 17A PQFN |
6,343 |
|
Datasheet |
- | 4-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 17A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 4-PQFN (8x8) |
|
|
TPH3208PSGANFET N-CH 650V 20A TO220AB |
5,167 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
TPH3208LDGANFET N-CH 650V 20A 4PQFN |
4,804 |
|
Datasheet |
- | 4-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-PQFN (8x8) |
|
TPH3207WSGANFET N-CH 650V 50A TO247-3 |
6,522 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 50A (Tc) | 10V | 41mOhm @ 32A, 8V | 2.65V @ 700µA | 42 nC @ 8 V | ±18V | 2197 pF @ 400 V | - | 178W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
TPH3202PDGANFET N-CH 600V 9A TO220AB |
8,196 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
TPH3202LSGANFET N-CH 600V 9A 3PQFN |
3,416 |
|
Datasheet |
- | 3-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 3-PQFN (8x8) |
|
|
TPH3208PDGANFET N-CH 650V 20A TO220AB |
6,493 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
