FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOB20C60LMOSFET N-CH 600V 20A TO263 |
3,695 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 250mOhm @ 10A, 10V | 5V @ 250µA | 74 nC @ 10 V | ±30V | 3440 pF @ 100 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
AOD474BMOSFET N-CH 75V 2.5A/10A TO252 |
9,167 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 2.5A (Ta), 10A (Tc) | 4.5V, 10V | 132mOhm @ 5A, 10V | 2.3V @ 250µA | 10 nC @ 10 V | ±20V | 282 pF @ 37.5 V | - | 2.1W (Ta), 28.5W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
AOI4T60MOSFET N-CH 600V 4A TO251A |
8,750 |
|
Datasheet |
- | TO-251-3 Stub Leads, IPAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2.1Ohm @ 1A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±30V | 460 pF @ 100 V | - | 83W (Tc) | -50°C ~ 150°C (TJ) | - | - | Through Hole | TO-251A |
|
AON2707MOSFET P-CH 30V 4A 6DFN |
6,252 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 2.5V, 10V | 117mOhm @ 4A, 10V | 1.5V @ 250µA | 12 nC @ 10 V | ±12V | 305 pF @ 15 V | Schottky Diode (Isolated) | 2.8W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-DFN (2x2) |
|
AON7414MOSFET N-CH 30V 12.5A/20A 8DFN |
3,010 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.5A (Ta), 20A (Tc) | 4.5V, 10V | 15mOhm @ 8A, 10V | 2.2V @ 250µA | 22 nC @ 10 V | ±20V | 595 pF @ 15 V | - | 4.1W (Ta), 15.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (3x3) |
|
AOT11C60LMOSFET N-CH 600V 11A TO220 |
2,295 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 11A (Tc) | 10V | 400mOhm @ 5.5A, 10V | 5V @ 250µA | 42 nC @ 10 V | ±30V | 2000 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
AOT20C60MOSFET N-CH 600V 20A TO220 |
8,445 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 250mOhm @ 10A, 10V | 5V @ 250µA | 74 nC @ 10 V | ±30V | 3440 pF @ 100 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
AOT20C60LMOSFET N-CH 600V 20A TO220 |
9,339 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 250mOhm @ 10A, 10V | 5V @ 250µA | 74 nC @ 10 V | ±30V | 3440 pF @ 100 V | - | 463W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
AOTF10T60PMOSFET N-CH 600V 10A TO220-3F |
3,361 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 700mOhm @ 5A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1595 pF @ 100 V | - | 43W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
AOTF12T60PMOSFET N-CH 600V 12A TO220-3F |
2,789 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 520mOhm @ 6A, 10V | 5V @ 250µA | 50 nC @ 10 V | ±30V | 2028 pF @ 100 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
AOTF7T60PMOSFET N-CH 600V 7A TO220-3F |
9,862 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 1.1Ohm @ 3.5A, 10V | 5V @ 250µA | 25 nC @ 10 V | ±30V | 965 pF @ 100 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
AUIRFN8403TRMOSFET N-CH 40V 95A 8PQFN |
6,946 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 95A (Tc) | 10V | 3.3mOhm @ 50A, 10V | 3.9V @ 100µA | 98 nC @ 10 V | ±20V | 3174 pF @ 25 V | - | 4.3W (Ta), 94W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
MTM231232LBFMOSFET P-CH 20V 3A SMINI3-G1-B |
3,141 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 2.5V, 4.5V | 55mOhm @ 1A, 4V | 1.3V @ 1mA | - | ±10V | 1000 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SMini3-G1-B |
|
SSU1N50BTUMOSFET N-CH 520V 1.3A IPAK |
8,869 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 520 V | 1.3A (Tc) | 10V | 5.3Ohm @ 650mA, 10V | 4V @ 250µA | 11 nC @ 10 V | ±30V | 340 pF @ 25 V | - | 2.5W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | IPAK |
|
IRF7580MTRPBFMOSFET N-CH 60V 114A DIRECTFET |
8,923 |
|
Datasheet |
StrongIRFET™ | DirectFET™ Isometric ME | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 114A (Tc) | 6V, 10V | 3.6mOhm @ 70A, 10V | 3.7V @ 150µA | 180 nC @ 10 V | ±20V | 6510 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DirectFET™ Isometric ME |
|
IRFR7540PBFMOSFET N-CH 60V 90A DPAK |
8,007 |
|
Datasheet |
StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 6V, 10V | 4.8mOhm @ 66A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4360 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRFR7546PBFMOSFET N-CH 60V 56A DPAK |
3,269 |
|
Datasheet |
StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 6V, 10V | 7.9mOhm @ 43A, 10V | 3.7V @ 100µA | 87 nC @ 10 V | ±20V | 3020 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|
DMP2006UFG-7MOSFET P-CH 20V 17.5A POWERDI |
6,321 |
|
- |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 17.5A (Ta), 40A (Tc) | 1.5V, 4.5V | 5.2mOhm @ 15A, 4.5V | 1V @ 250µA | 140 nC @ 10 V | ±10V | 5404 pF @ 10 V | - | 2.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|

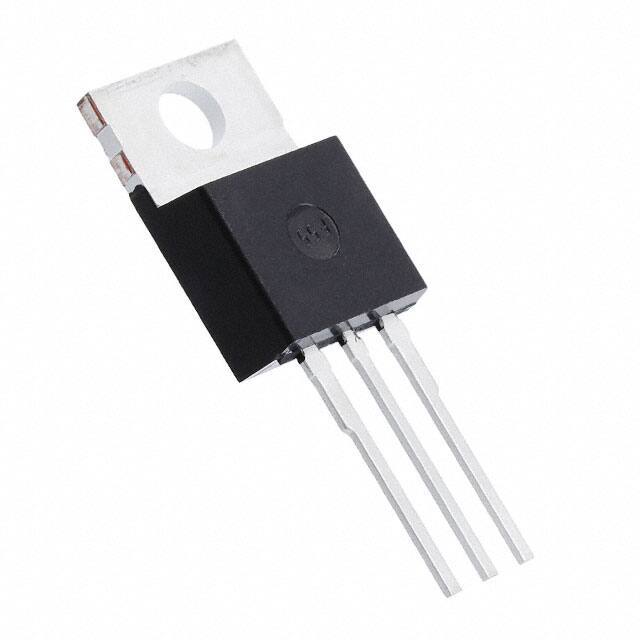

SPP16N50C3XKSA1MOSFET N-CH 560V 16A TO220-3 |
3,802 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | 3.9V @ 675µA | 66 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
IRFS7430PBFMOSFET N-CH 40V 195A D2PAK |
6,045 |
|
Datasheet |
HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
