FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIB437EDKT-T1-GE3MOSFET P-CH 8V 9A PPAK TSC75-6 |
6,792 |
|
Datasheet |
TrenchFET® | PowerPAK® TSC-75-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 9A (Tc) | 1.2V, 4.5V | 34mOhm @ 3A, 4.5V | 700mV @ 250µA | 16 nC @ 4.5 V | ±5V | - | - | 2.4W (Ta), 13W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® TSC75-6 |
|
SIR814DP-T1-GE3MOSFET N-CH 40V 60A PPAK SO-8 |
2,110 |
|
Datasheet |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 60A (Tc) | 4.5V, 10V | 2.1mOhm @ 20A, 10V | 2.3V @ 250µA | 86 nC @ 10 V | ±20V | 3800 pF @ 20 V | - | 6.25W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SIS776DN-T1-GE3MOSFET N-CH 30V 35A PPAK1212-8 |
4,175 |
|
Datasheet |
SkyFET®, TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Tc) | 4.5V, 10V | 6.2mOhm @ 10A, 10V | 2.5V @ 250µA | 36 nC @ 10 V | ±20V | 1360 pF @ 15 V | Schottky Diode (Body) | 3.8W (Ta), 52W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
SQM120N03-1M5L_GE3MOSFET N-CH 30V 120A TO263 |
4,546 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 120A (Tc) | 4.5V, 10V | 1.5mOhm @ 30A, 10V | 2.5V @ 250µA | 270 nC @ 10 V | ±20V | 15605 pF @ 15 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 |
|
|
SQM50N04-4M1_GE3MOSFET N-CH 40V 50A TO263 |
8,206 |
|
Datasheet |
TrenchFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 10V | 4.1mOhm @ 30A, 10V | 3.5V @ 250µA | 105 nC @ 10 V | ±20V | 6715 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
AUIRFP4409MOSFET N-CH 300V 38A TO247AC |
9,392 |
|
Datasheet |
HEXFET® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 69mOhm @ 24A, 10V | 5V @ 250µA | 125 nC @ 10 V | ±20V | 5168 pF @ 50 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|

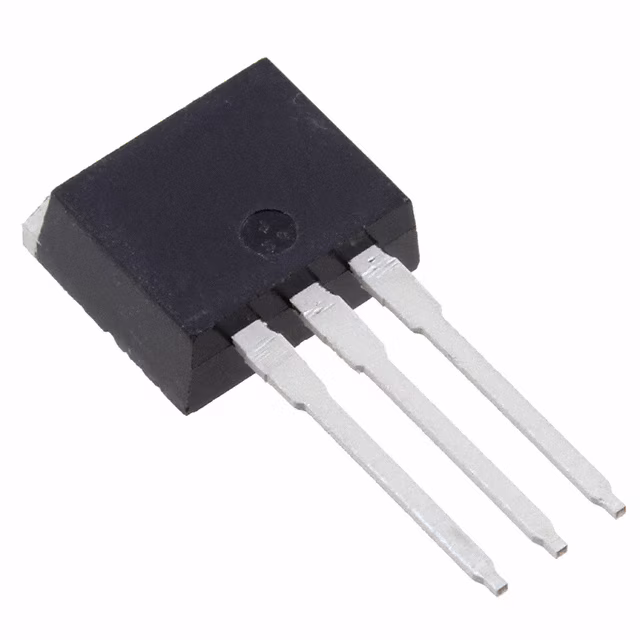

AUIRFSL8409MOSFET N-CH 40V 195A TO262 |
4,342 |
|
Datasheet |
HEXFET® | TO-262-3 Short Leads, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
;;2.jpg)
|
STDLED623MOSFET N-CH 620V 3A DPAK |
7,533 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 3A (Tc) | 10V | 3.6Ohm @ 1.1A, 10V | 4.5V @ 50µA | 15.5 nC @ 10 V | ±30V | 350 pF @ 50 V | - | 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
STDLED625MOSFET N-CH 620V 5A DPAK |
6,641 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 620 V | 5A (Tc) | 10V | 1.6Ohm @ 2.1A, 10V | 4.5V @ 50µA | 35 nC @ 10 V | ±30V | 890 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | - | - | Surface Mount | DPAK |
|
STULED524MOSFET N-CH 525V 4A IPAK |
8,605 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 525 V | 4A (Tc) | 10V | 2.6Ohm @ 2.2A, 10V | 4.5V @ 50µA | 12 nC @ 10 V | ±30V | 340 pF @ 100 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
WPH4003-1EMOSFET N-CH 1700V 2.5A TO3PF |
5,104 |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1700 V | 2.5A (Tc) | 10V | 10.5Ohm @ 1.5A, 10V | - | 48 nC @ 10 V | ±30V | 850 pF @ 30 V | - | 3W (Ta), 55W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3PF |
|
IRFHM9391TRPBFMOSFET P-CH 30V 11A 8PQFN |
5,704 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 14.6mOhm @ 11A, 10V | 2.4V @ 25µA | 16 nC @ 10 V | ±25V | 1543 pF @ 25 V | - | 2.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3.3x3.3), Power33 |
|
IRL6283MTRPBFMOSFET N-CH 20V 38A DIRECTFET |
3,209 |
|
Datasheet |
HEXFET®, StrongIRFET™ | DirectFET™ Isometric MD | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 38A (Ta), 211A (Tc) | 2.5V, 4.5V | 0.75mOhm @ 50A, 10V | 1.1V @ 100µA | 158 nC @ 4.5 V | ±12V | 8292 pF @ 10 V | - | 2.1W (Ta), 63W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MD |
|
EKI04036MOSFET N-CH 40V 80A TO220-3 |
4,935 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 4.5V, 10V | 3.8mOhm @ 58.5A, 10V | 2.5V @ 1mA | 63.2 nC @ 10 V | ±20V | 3910 pF @ 25 V | - | 116W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
|
EKI06108MOSFET N-CH 60V 57A TO220-3 |
5,049 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 57A (Tc) | 4.5V, 10V | 9.2mOhm @ 28.5A, 10V | 2.5V @ 650µA | 38.6 nC @ 10 V | ±20V | 2520 pF @ 25 V | - | 90W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
FKI06269MOSFET N-CH 60V 24A TO220F |
8,442 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 24A (Tc) | 4.5V, 10V | 21.8mOhm @ 15.8A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 29W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
IRFHM8228TRPBFMOSFET N-CH 25V 19A 8PQFN |
9,060 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 19A (Ta) | 4.5V, 10V | 5.2mOhm @ 20A, 10V | 2.35V @ 25µA | 18 nC @ 10 V | ±20V | 1667 pF @ 10 V | - | 2.8W (Ta), 34W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3.3x3.3), Power33 |
|
IPP50R399CPXKSA1MOSFET N-CH 500V 9A TO220-3 |
9,975 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 9A (Ta) | 10V | 399mOhm @ 4.9A, 10V | 3.5V @ 330µA | 4 nC @ 10 V | ±20V | 890 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
FDMC612PZMOSFET P-CH 20V 14A 8MLP |
4,698 |
|
Datasheet |
PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 14A (Ta) | 2.5V, 4.5V | 8.4mOhm @ 14A, 4.5V | 1.5V @ 250µA | 74 nC @ 4.5 V | ±12V | 7995 pF @ 10 V | - | 2.3W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
FDB035AN06A0-F085MOSFET N-CH 60V 22A D2PAK |
7,562 |
|
Datasheet |
PowerTrench® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Ta) | 10V | 3.5mOhm @ 80A, 10V | 4V @ 250µA | 124 nC @ 10 V | ±20V | 6400 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
