FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RJK6020DPK-00#T0MOSFET N-CH 600V 32A TO3P |
6,091 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Ta) | 10V | 175mOhm @ 16A, 10V | - | 121 nC @ 10 V | ±30V | 5150 pF @ 25 V | - | 200W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
RJK6032DPH-E0#T2MOSFET N-CH 600V 3A TO251 |
3,988 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3A (Ta) | 10V | 4.3Ohm @ 1.5A, 10V | - | 9 nC @ 10 V | ±30V | 285 pF @ 25 V | - | 40.3W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-251 |
|
RJL5012DPE-00#J3MOSFET N-CH 500V 12A 4LDPAK |
7,665 |
|
Datasheet |
- | SC-83 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Ta) | 10V | 700mOhm @ 6A, 10V | - | 27.8 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LDPAK |
|
RJL5012DPP-M0#T2MOSFET N-CH 500V 12A TO220FL |
8,365 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Ta) | 10V | 700mOhm @ 6A, 10V | - | 27.8 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 30W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FL |
|
|
RJL5014DPK-00#T0MOSFET N-CH 500V 19A TO3P |
8,827 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Ta) | 10V | 400mOhm @ 9.5A, 10V | - | 43 nC @ 10 V | ±30V | 1700 pF @ 25 V | - | 150W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
RJL5020DPK-00#T0MOSFET N-CH 500V 38A TO3P |
9,043 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 38A (Ta) | 10V | 135mOhm @ 19A, 10V | - | 140 nC @ 10 V | ±30V | 4750 pF @ 25 V | - | 200W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
RJL6012DPE-00#J3MOSFET N-CH 600V 10A 4LDPAK |
8,732 |
|
- |
- | SC-83 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Ta) | 10V | 1.1Ohm @ 5A, 10V | - | 28 nC @ 10 V | ±30V | 1050 pF @ 25 V | - | 100W (Tc) | 150°C (TJ) | - | - | Surface Mount | LDPAK |
|
RJL6018DPK-00#T0MOSFET N-CH 600V 27A TO3P |
6,534 |
|
- |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 27A (Ta) | 10V | 265mOhm @ 13.5A, 10V | - | 98 nC @ 10 V | ±30V | 3830 pF @ 25 V | - | 200W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
RJL6020DPK-00#T0MOSFET N-CH 600V 30A TO3P |
4,473 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Ta) | 10V | 210mOhm @ 15A, 10V | - | 130 nC @ 10 V | ±30V | 4750 pF @ 25 V | - | 200W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
UPA2735GR-E1-ATMOSFET P-CH 30V 16A 8SOP |
8,763 |
|
Datasheet |
- | 8-PowerSOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 5mOhm @ 16A, 10V | - | 195 nC @ 10 V | ±20V | 6250 pF @ 10 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
UPA2736GR-E1-ATMOSFET P-CH 30V 14A 8SOP |
4,396 |
|
Datasheet |
- | 8-PowerSOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta) | 4.5V, 10V | 7mOhm @ 14A, 10V | - | 80 nC @ 10 V | ±20V | 3400 pF @ 10 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
UPA2737GR-E1-ATMOSFET P-CH 30V 11A 8SOP |
9,694 |
|
Datasheet |
- | 8-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 13mOhm @ 11A, 10V | - | 45 nC @ 10 V | ±20V | 1750 pF @ 10 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
UPA2738GR-E1-ATMOSFET P-CH 30V 10A 8SOP |
9,283 |
|
Datasheet |
- | 8-PowerSOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 15mOhm @ 10A, 10V | - | 37 nC @ 10 V | ±20V | 1450 pF @ 10 V | - | 1.1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
UPA2812T1L-E2-ATMOSFET P-CH 30V 30A 8HWSON |
7,333 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 4.8mOhm @ 30A, 10V | - | 100 nC @ 10 V | ±20V | 3740 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-HWSON (3.3x3.3) |
|
|
UPA2813T1L-E2-ATMOSFET P-CH 30V 27A 8HWSON |
6,815 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Tc) | 4.5V, 10V | 6.2mOhm @ 27A, 10V | - | 80 nC @ 10 V | ±20V | 3130 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-HWSON (3.3x3.3) |
|
|
UPA2821T1L-E1-ATMOSFET N-CH 30V 26A 8HWSON |
2,075 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Tc) | 4.5V, 10V | 3.8mOhm @ 26A, 10V | - | 51 nC @ 10 V | ±20V | 2490 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-HWSON (3.3x3.3) |
|
|
UPA2822T1L-E1-ATMOSFET N-CH 30V 34A 8HWSON |
3,934 |
|
Datasheet |
- | 8-PowerWDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Tc) | 4.5V, 10V | 2.6mOhm @ 34A, 10V | - | 83 nC @ 10 V | ±20V | 4660 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-HWSON (3.3x3.3) |
|
DMG4N65CTIMOSFET N-CH 650V 4A ITO220AB |
3,443 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 250µA | 13.5 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 8.35W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
|
SIA439EDJ-T1-GE3MOSFET P-CH 20V 28A PPAK SC70-6 |
3,415 |
|
Datasheet |
TrenchFET® | PowerPAK® SC-70-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 28A (Tc) | 1.8V, 4.5V | 16.5mOhm @ 5A, 4.5V | 1V @ 250µA | 69 nC @ 8 V | ±8V | 2410 pF @ 10 V | - | 3.5W (Ta), 19W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|

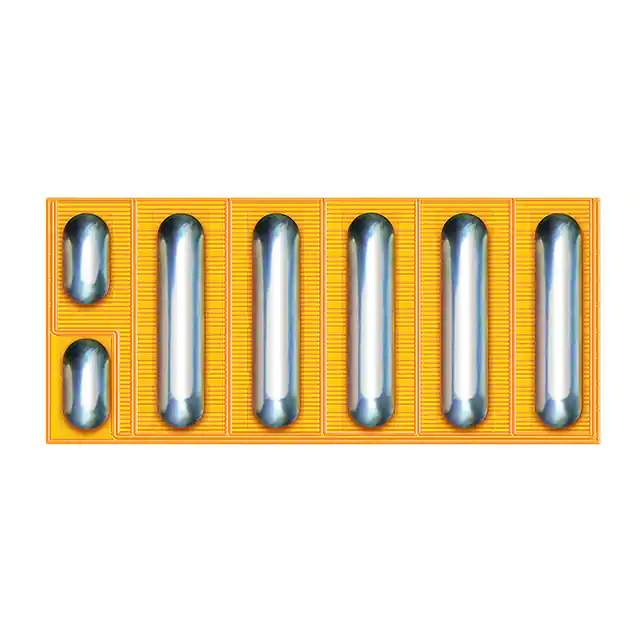

EPC2018GANFET N-CH 150V 12A DIE |
4,747 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 150 V | 12A (Ta) | 5V | 25mOhm @ 6A, 5V | 2.5V @ 3mA | 7.5 nC @ 5 V | +6V, -5V | 540 pF @ 100 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
