FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AOWF4S60MOSFET N-CH 600V 4A TO262F |
3,057 |
|
Datasheet |
aMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 900mOhm @ 2A, 10V | 4.1V @ 250µA | 6 nC @ 10 V | ±30V | 263 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262F |
|
|
AOWF7S60MOSFET N-CH 600V 7A TO262F |
5,637 |
|
Datasheet |
aMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 3.9V @ 250µA | 8.2 nC @ 10 V | ±30V | 372 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262F |
|
|
AOWF7S65MOSFET N-CH 650V 7A TO262F |
9,015 |
|
Datasheet |
aMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 650mOhm @ 3.5A, 10V | 4V @ 250µA | 9.2 nC @ 10 V | ±30V | 434 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262F |
|
FDZ663PMOSFET P-CH 20V 2.7A 4WLCSP |
2,163 |
|
- |
PowerTrench® | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.5V, 4.5V | 134mOhm @ 2A, 4.5V | 1.2V @ 250µA | 8.2 nC @ 4.5 V | ±8V | 525 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.8x0.8) |
|
SIR788DP-T1-GE3MOSFET N-CH 30V 60A PPAK SO-8 |
5,771 |
|
Datasheet |
SkyFET®, TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 3.4mOhm @ 20A, 10V | 2.5V @ 250µA | 75 nC @ 10 V | ±20V | 2873 pF @ 15 V | Schottky Diode (Body) | 5W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
RMW280N03TBMOSFET N-CH 30V 28A 8PSOP |
4,368 |
|
Datasheet |
- | 8-SMD, Flat Lead | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 28A (Ta) | 4.5V, 10V | 2.8mOhm @ 28A, 10V | 2.5V @ 1mA | 53 nC @ 10 V | ±20V | 3130 pF @ 15 V | - | 3W (Ta) | 150°C (TJ) | - | - | Surface Mount | 8-PSOP |
|
IRFR812TRPBFMOSFET N-CH 500V 3.6A DPAK |
2,525 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.6A (Tc) | 10V | 2.2Ohm @ 2.2A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±20V | 810 pF @ 25 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRFR812PBFMOSFET N-CH 500V 3.6A DPAK |
5,521 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 500 V | 3.6A (Tc) | 10V | 2.2Ohm @ 2.2A, 10V | 5V @ 250µA | 20 nC @ 10 V | ±20V | 810 pF @ 25 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IRFR825PBFMOSFET N-CH 500V 6A DPAK |
2,032 |
|
Datasheet |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 500 V | 6A (Tc) | 10V | 1.3Ohm @ 3.7A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±20V | 1346 pF @ 25 V | - | 119W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRFH7107TRPBFMOSFET N-CH 75V 14A/75A 8PQFN |
7,599 |
|
Datasheet |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 14A (Ta), 75A (Tc) | 10V | 8.5mOhm @ 45A, 10V | 4V @ 100µA | 72 nC @ 10 V | ±20V | 3110 pF @ 25 V | - | 3.6W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
NTMFS4833NST1GMOSFET N-CH 30V 16A/156A SO-8FL |
5,899 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.5V @ 250µA | 86 nC @ 11.5 V | ±20V | 5250 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
|
NTMFS4833NST3GMOSFET N-CH 30V 16A/156A SO-8FL |
4,699 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 156A (Tc) | 4.5V, 10V | 2.2mOhm @ 30A, 10V | 2.5V @ 250µA | 86 nC @ 11.5 V | ±20V | 5250 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
|
NTMFS4854NST1GMOSFET N-CH 25V 15.2A/149A SO8FL |
3,799 |
|
Datasheet |
SENSEFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 15.2A (Ta), 149A (Tc) | 3.2V, 10V | 2.5mOhm @ 15A, 10V | 2.5V @ 250µA | 85 nC @ 11.5 V | ±16V | 4830 pF @ 12 V | - | 900mW (Ta), 86.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SO-8FL |
|
NTP5860NGMOSFET N-CH 60V 220A TO220AB |
2,897 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 3mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 10760 pF @ 25 V | - | 283W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
|
NTP5860NLGMOSFET N-CH 60V 220A TO220AB |
9,087 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 3mOhm @ 75A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 10760 pF @ 25 V | - | 283W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|

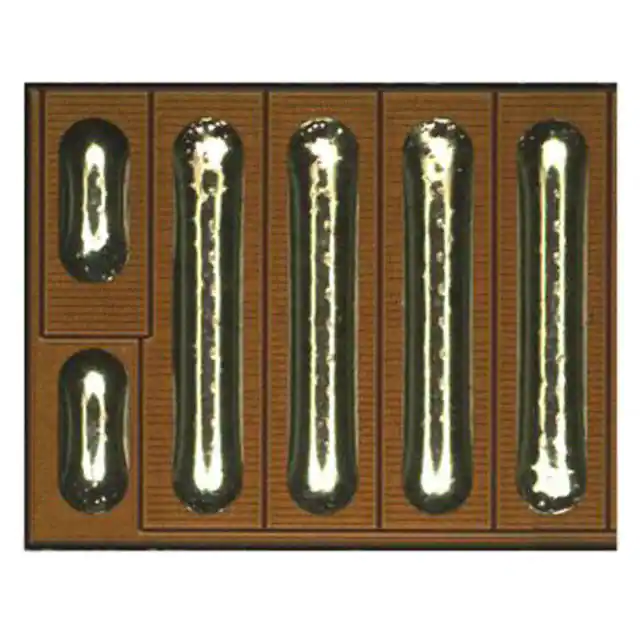

EPC2016GANFET N-CH 100V 11A DIE |
2,747 |
|
Datasheet |
eGaN® | Die | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | GaNFET (Gallium Nitride) | 100 V | 11A (Ta) | 5V | 16mOhm @ 11A, 5V | 2.5V @ 3mA | 5.2 nC @ 5 V | +6V, -5V | 520 pF @ 50 V | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
2N7002-GMOSFET N-CH 60V 0.25A SOT23-3 |
8,475 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 250mA (Ta) | 4.5V, 10V | 3Ohm @ 250mA, 10V | 2.5V @ 250µA | 1 nC @ 10 V | - | 25 pF @ 25 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SI8439DB-T1-E1MOSFET P-CH 8V 4MICROFOOT |
8,133 |
|
Datasheet |
TrenchFET® | 4-UFBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 8 V | 5.9A (Ta) | 1.2V, 4.5V | 25mOhm @ 1.5A, 4.5V | 800mV @ 250µA | 50 nC @ 4.5 V | ±5V | - | - | 1.1W (Ta), 2.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 4-Microfoot |
|
BUK6246-75C,118MOSFET N-CH 75V 22A DPAK |
5,241 |
|
Datasheet |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 22A (Tc) | 4.5V, 10V | 46mOhm @ 10A, 10V | 2.8V @ 1mA | 21.4 nC @ 10 V | ±16V | 1280 pF @ 25 V | - | 60W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
BUK626R2-40C,118MOSFET N-CH 40V 90A DPAK |
7,807 |
|
Datasheet |
TrenchMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 90A (Tc) | 10V | 6.2mOhm @ 15A, 10V | 2.8V @ 1mA | 67 nC @ 10 V | ±16V | 3720 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
FETs, MOSFETs Electronic Components
Explore FETs, MOSFETs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
