FETs, MOSFETs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPCA8021-H(TE12LQMMOSFET N-CH 30V 27A 8SOP |
8,732 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 27A (Ta) | 4.5V, 10V | 9mOhm @ 14A, 10V | 2.3V @ 1mA | 23 nC @ 10 V | ±20V | 1395 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8023-H(TE12LQMMOSFET N-CH 30V 21A 8SOP |
9,165 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 12.9mOhm @ 11A, 10V | 2.5V @ 1mA | 21 nC @ 10 V | ±20V | 2150 pF @ 10 V | - | 1.6W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8031-H(TE12L,QMOSFET N-CH 30V 24A 8SOP |
9,628 |
|
Datasheet |
U-MOSV-H | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta) | 4.5V, 10V | 11mOhm @ 12A, 10V | 2.5V @ 1mA | 21 nC @ 10 V | ±20V | 2150 pF @ 10 V | - | 1.6W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8102(TE12L,Q,MMOSFET P-CH 30V 40A 8SOP |
2,647 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4V, 10V | 6mOhm @ 20A, 10V | 2V @ 1mA | 109 nC @ 10 V | ±20V | 4600 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8103(TE12L,Q,MMOSFET P-CH 30V 40A 8SOP |
6,353 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4V, 10V | 4.2mOhm @ 20A, 10V | 2V @ 1mA | 184 nC @ 10 V | ±20V | 7880 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8105(TE12L,Q,MMOSFET P-CH 12V 6A 8SOP |
5,824 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 6A (Ta) | 1.8V, 4.5V | 33mOhm @ 3A, 4.5V | 1.2V @ 200µA | 18 nC @ 5 V | ±8V | 1600 pF @ 10 V | - | 1.6W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCA8A01-H(TE12L,QMOSFET N-CH 30V 36A 8SOP |
8,060 |
|
Datasheet |
- | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 36A (Ta) | 4.5V, 10V | 5.6mOhm @ 18A, 10V | 2.3V @ 1mA | 35 nC @ 10 V | ±20V | 1970 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
|
TPCF8102(TE85L,F,MMOSFET P-CH 20V 6A VS-8 |
4,828 |
|
Datasheet |
U-MOSIII | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.8V, 4.5V | 30mOhm @ 3A, 4.5V | 1.2V @ 200µA | 19 nC @ 5 V | ±8V | 1550 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-8 (2.9x1.5) |
|
|
TPCP8001-H(TE85LFMMOSFET N-CH 30V 7.2A PS-8 |
5,962 |
|
Datasheet |
U-MOSIII | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 4.5V, 10V | 16mOhm @ 3.6A, 10V | 2.3V @ 1mA | 11 nC @ 10 V | ±20V | 640 pF @ 10 V | - | 1W (Ta), 30W (Tc) | 150°C (TJ) | - | - | Surface Mount | PS-8 (2.9x2.4) |
|
PSMN9R0-30YL,115MOSFET N-CH 30V 61A LFPAK56 |
5,325 |
|
- |
- | SC-100, SOT-669 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 61A (Tc) | 4.5V, 10V | 8mOhm @ 15A, 10V | 2.15V @ 1mA | 17.8 nC @ 10 V | ±20V | 1006 pF @ 12 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
IXFV12N120PMOSFET N-CH 1200V 12A PLUS220 |
6,739 |
|
Datasheet |
HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 1.35Ohm @ 500mA, 10V | 6.5V @ 1mA | 103 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV12N120PSMOSFET N-CH 1200V 12A PLUS220SMD |
7,720 |
|
Datasheet |
HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1200 V | 12A (Tc) | 10V | 1.35Ohm @ 500mA, 10V | 6.5V @ 1mA | 103 nC @ 10 V | ±30V | 5400 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXFV15N100PMOSFET N-CH 1000V 15A PLUS220 |
8,383 |
|
Datasheet |
HiPerFET™, PolarP2™ | TO-220-3, Short Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 760mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5140 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS220 |
|
|
IXFV15N100PSMOSFET N-CH 1000V 15A PLUS220SMD |
8,755 |
|
Datasheet |
HiPerFET™, PolarP2™ | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 760mOhm @ 500mA, 10V | 6.5V @ 1mA | 97 nC @ 10 V | ±30V | 5140 pF @ 25 V | - | 543W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
.jpg)
|
IXKH20N60C5MOSFET N-CH 600V 20A TO247AD |
8,628 |
|
Datasheet |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 200mOhm @ 10A, 10V | 3.5V @ 1.1mA | 45 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
IXKP13N60C5MOSFET N-CH 600V 13A TO220AB |
6,873 |
|
Datasheet |
CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 300mOhm @ 6.6A, 10V | 3.5V @ 440µA | 30 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXKP20N60C5MMOSFET N-CH 600V 7.6A TO220ABFP |
6,484 |
|
Datasheet |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.6A (Tc) | 10V | 200mOhm @ 10A, 10V | 3.5V @ 1.1mA | 30 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220ABFP |
|

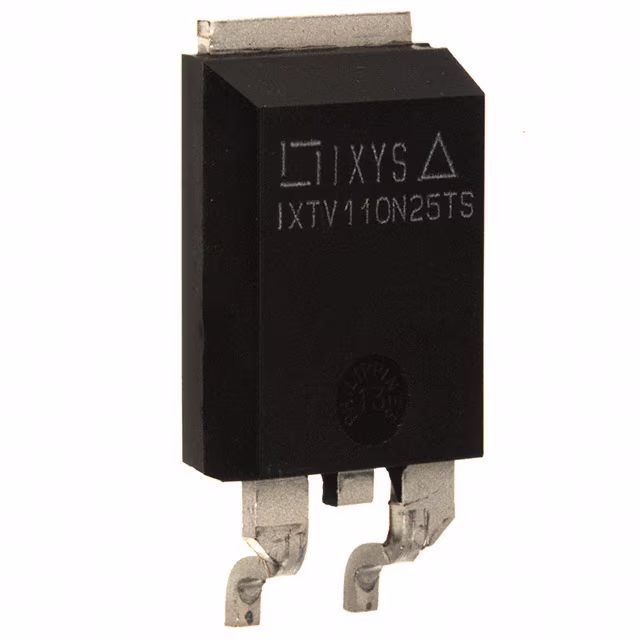

IXTV110N25TSMOSFET N-CH 250V 110A PLUS220SMD |
9,800 |
|
Datasheet |
- | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 1mA | 157 nC @ 10 V | ±20V | 9400 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PLUS-220SMD |
|
|
IXTP32N20TMOSFET N-CH 200V 32A TO220AB |
3,549 |
|
Datasheet |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 32A (Tc) | 10V | 72mOhm @ 16A, 10V | 4.5V @ 250µA | 38 nC @ 10 V | ±20V | 1760 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
SI7107DN-T1-GE3MOSFET P-CH 20V 9.8A PPAK1212-8 |
2,345 |
|
Datasheet |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 9.8A (Ta) | 1.8V, 4.5V | 10.8mOhm @ 15.3A, 4.5V | 1V @ 450µA | 44 nC @ 4.5 V | ±8V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
